				OHX/OHN

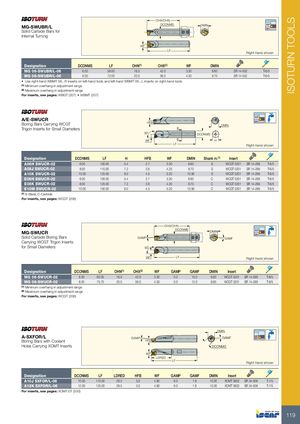

MG-SWUBR/L Solid Carbide Bars for Internal Turning				DCONMS	DMIN		93º
			WF	LF		Right	-hand shown
Designation	DCONMS	LF	OHN(1)	OHX(2) WF	DMIN
MG 06-SWUBR/L-06	6.00	59.00	16.0	42.0 3.30	6.60	SR 14-552	T-6/5
MG 08-SWUBR/L-06	8.00	72.00	20.0	56.0 4.30	8.70	SR 14-552	T-6/5

Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools

(1) Minimum overhang in adjustment range (2) Maximum overhang in adjustment range

For inserts, see pages: WBGT (207) WBMT (207)

A/E-SWUCR Boring Bars Carrying WCGT Trigon Inserts for Small Diamet	ers			93˚ WF HFB		B B LF	DCONMS H	DMIN	Right-hand 93º	shown
Designation	DCONMS	LF	H	HFB	WF	DMIN	Shank m.	(1) Insert
A06H SWUCR-02	6.00	100.00	5.4	2.7	3.30	6.60	S	WCGT 0201	SR 14-299	T-6/5
A08J SWUCR-02	8.00	110.00	7.2	3.6	4.25	8.70	S	WCGT 0201	SR 14-299	T-6/5
A10K SWUCR-02	10.00	125.00	9.0	4.5	5.20	10.90	S	WCGT 0201	SR 14-299	T-6/5
E06H SWUCR-02	6.00	100.00	5.4	2.7	3.30	6.60	C	WCGT 0201	SR 14-299	T-6/5
E08K SWUCR-02	8.00	125.00	7.2	3.6	4.30	8.70	C	WCGT 0201	SR 14-299	T-6/5
E10M SWUCR-02	10.00	150.00	9.0	4.5	5.20	10.90	C	WCGT 0201	SR 14-299	T-6/5

(1) S-Steel, C-Carbide

For inserts, see pages: WCGT (208)

MG-SWUCR Solid Carbide Boring Bars				GAMP O	DCONM HX/OHN	S	DMIN	GAMF	93º
Carrying WCGT Trigon Inserts
for Small Diameters				WF 93˚	LF				Right-hand	shown
Designation	DCONMS	LF	OHN(1)	OHX(2) WF	GAMP	GAMF	DMIN	Insert
MG 06-SWUCR-02	6.00	60.00	16.0	42.0 3.30	0.0	15.0	6.60	WCGT 0201	SR 14-299	T-6/5
MG 08-SWUCR-02	8.00	75.70	20.0	56.0 4.30	0.0	12.0	8.80	WCGT 0201	SR 14-299	T-6/5

(1) Minimum overhang in adjustment range (2) Maximum overhang in adjustment range

For inserts, see pages: WCGT (208)

A-SXFOR/L Boring Bars with Coolant Holes Carrying XOMT Inserts				HFB GAMP		DC	ONMS GAMF DMIN	88º
				WF
				LDRED	LF			Right-hand	shown
Designation	DCONMS	LF	LDRED	HFB WF	GAMP GAMF	DMIN	Insert
A10J SXFOR/L-06	10.00	110.00	28.5	5.0 4.90	6.0 1.8	10.00	XOMT 0602	SR 34-508	T-7/5
A12K SXFOR/L-06	12.00	125.00	28.5	5.0 4.90	6.0 1.8	10.00	XOMT 0602	SR 34-508	T-7/5

For inserts, see pages: XOMT-DT (200)
