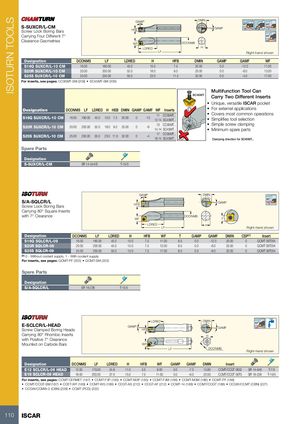

Каталог Iscar токарные державки ISO 2022 - страница 112
Навигация
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
Каталог Iscar решения для глубокого сверления
Каталог Iscar торцевые фрезы 2022
Новые режущие инструменты Iscar 2026
Каталог Iscar инструмент для обработки отверстий
GAMP
S-SUXCR/L-CM 45º 95º
Screw Lock Boring Bars HFB 90º
Carrying Four Different 7° 95º Clearance Geometries WF DCONMS LDRED H
LF Right-hand shown
| Designation | DCONMS | LF | LDRED | H | HFB | DMIN | GAMP | GAMF | WF |
| S16Q SUXCR/L-10 CM | 16.00 | 180.00 | 45.0 | 15.0 | 7.5 | 20.00 | 0.0 | -12.0 | 11.00 |
| S20R SUXCR/L-10 CM | 20.00 | 200.00 | 52.0 | 18.0 | 9.0 | 25.00 | 0.0 | -6.0 | 13.00 |
| S25S SUXCR/L-10 CM | 25.00 | 250.00 | 55.0 | 23.0 | 11.5 | 32.00 | 0.0 | -4.0 | 17.00 |
For inserts, see pages: CC95MT-SM (208) SC45MT-SM (209) Multifunction Tool Can SC45MT Carry Two Different Inserts
- Unique, versatile ISCAR pocket
Designation DCONMS LF LDRED H HEB DMIN GAMP GAMF WF Inserts For external applications
- Covers most common operations
11 CC95MT...
| S16Q SUXCR/L-10 CM | 16.00 | 180.00 | 45.0 | 15.0 7.5 | 20.00 | 0 | -12 | • Simplifies tool selection | |
| 12.14 SC45MT... | |||||||||
| 13 CC95MT... | • Simple screw clamping | ||||||||
| S20R SUXCR/L-10 CM | 20.00 | 200.00 | 52.0 | 18.0 9.0 | 25.00 | 0 | -6 | ||
| 14.14 SC45MT... | • Minimum spare parts | ||||||||
| S25S SUXCR/L-10 CM | 17 CC95MT... | ||||||||
| 25.00 | 250.00 | 55.0 | 23.0 11.5 32.00 | 0 | -4 | ||||
| 18.14 SC45MT... | Clamping direction for SC45MT... | ||||||||
| Spare Parts | |||||||||
| Designation | |||||||||
| S-SUXCR/L-CM | SR 14-544/S | T-15/5 |
GAMP DMIN S/A-SQLCR/L 95º GAMF Screw Lock Boring Bars HFB
Carrying 80° Square Inserts
with 7° Clearance DCONMS WF T LDRED H LF Right-hand shown
| Designation | DCONMS | LF | LDRED | H | HFB | WF | T | GAMP | GAMF | DMIN | CSP(1) | Insert |
| S16Q SQLCR/L-09 | 16.00 | 180.00 | 45.0 | 15.0 | 7.5 | 11.00 | 8.5 | 0.0 | -12.0 | 20.00 | 0 | QCMT 09T304 |
| S20R SQLCR-09 | 20.00 | 200.00 | 45.0 | 15.0 | 7.5 | 13.00 | 8.5 | 0.0 | -6.0 | 25.00 | 0 | QCMT 09T304 |
| S25S SQLCR-09 | 25.00 | 250.00 | 55.0 | 15.0 | 7.5 | 17.00 | 8.5 | 0.0 | -6.0 | 32.00 | 0 | QCMT 09T304 |
| (1) 0 - Without coolant supply, 1 - With coolant supply | ||||||||||||
| For inserts, see pages: QCMT-PF (203) • QCMT-SM (203) | ||||||||||||
| Spare Parts | ||||||||||||
| Designation |
S/A-SQLCR/L SR 16-236 T-15/5
LDRED DMIN E-SCLCR/L-HEAD 95º GAMP GAMF Screw Clamped Boring Heads HFB
Carrying 80° Rhombic Inserts
H
with Positive 7° Clearance
Mounted on Carbide Bars WF LF DCONMS Right-hand shown
| Designation | DCONMS | LF | LDRED | H | HFB | WF | GAMP | GAMF | DMIN | Insert | |||
| E12 SCLCR/L-06 HEAD | 12.00 | 179.00 | 24.8 | 11.0 | 5.5 | 9.00 | 0.0 | -7.0 | 15.80 | CCMT/CCGT 0602 | SR 14-548 | T-7/5 | |
| E16 SCLCR-09 HEAD | 16.00 | 200.00 | 37.0 | 15.0 | 7.5 | 11.00 | 0.0 | -9.0 | 20.00 | CCMT/CCGT 09T3 | SR 16-236 | T-15/5 |
For inserts, see pages: CCMT-CERMET (187) CCMT-F3P (185) CCMT-M3P (185) CCMT-F3M (186) CCMT-M3M (186) CCMT-PF (188)
