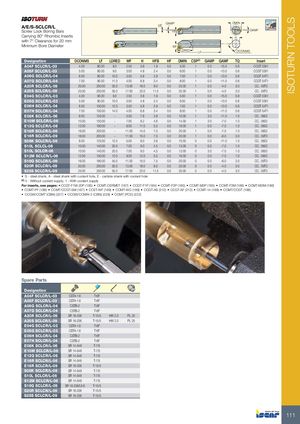

Каталог Iscar токарные державки ISO 2022 - страница 113
Навигация
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
Каталог Iscar решения для глубокого сверления
Каталог Iscar торцевые фрезы 2022
Новые режущие инструменты Iscar 2026
Каталог Iscar инструмент для обработки отверстий
| HF | GAMP | DMIN | 95º | ||||||||||
| A/E/S-SCLCR/L | |||||||||||||
| Screw Lock Boring Bars | H | FB | GAMF | ||||||||||
| Carrying 80° Rhombic Inserts | H | ||||||||||||
| with 7° Clearance for 20 mm | |||||||||||||
| Minimum Bore Diameter | W | F | |||||||||||
| LDRED | LF | DCO | NMS | ||||||||||
| Designation | DCONMS | LF | LDRED | WF | H | HFB | HF | DMIN | CSP(1) | GAMP | GAMF | TQ | Insert |
| A04F SCLCR/L-03 | 4.00 | 80.00 | 8.0 | 2.50 | 3.8 | 1.9 | 0.0 | 5.00 | 1 | 0.0 | -15.0 | 0.6 | CCGT 03X1 |
| A05F SCLCR/L-03 | 5.00 | 80.00 | 9.0 | 3.00 | 4.8 | 2.4 | 0.0 | 6.00 | 1 | 0.0 | -13.0 | 0.6 | CCGT 03X1 |
| A06G SCLCR/L-04 | 6.00 | 90.00 | 10.0 | 3.50 | 5.8 | 2.9 | 0.0 | 7.00 | 1 | 0.0 | -13.0 | 0.6 | CCGT 04T1 |
| A07G SCLCR/L-04 | 7.00 | 90.00 | 11.0 | 4.00 | 6.8 | 3.4 | 0.0 | 8.00 | 1 | 0.0 | -11.0 | 0.6 | CCGT 04T1 |
| A20R SCLCR/L-09 | 20.00 | 200.00 | 35.0 | 13.00 | 18.0 | 9.0 | 0.0 | 25.00 | 1 | 0.0 | -4.0 | 3.0 | CC.. 09T3 |
| A25S SCLCR/L-09 | 25.00 | 250.00 | 35.0 | 17.00 | 23.0 | 11.5 | 0.0 | 32.00 | 1 | 0.0 | -4.0 | 3.0 | CC.. 09T3 |
| E04G SCLCR/L-03 | 4.00 | 90.00 | 9.0 | 2.50 | 3.8 | 1.9 | 0.0 | 5.00 | 1 | 0.0 | -15.0 | 0.6 | CCGT 03X1 |
| E05G SCLCR/L-03 | 5.00 | 90.00 | 10.0 | 3.00 | 4.8 | 2.4 | 0.0 | 6.00 | 1 | 0.0 | -13.0 | 0.6 | CCGT 03X1 |
| E06H SCLCR/L-04 | 6.00 | 100.00 | 12.0 | 3.50 | 5.8 | 2.9 | 0.0 | 7.00 | 1 | 0.0 | -13.0 | 0.6 | CCGT 04T1 |
| E07H SCLCR/L-04 | 7.00 | 100.00 | 14.0 | 4.00 | 6.8 | 3.4 | 0.0 | 8.00 | 1 | 0.0 | -11.0 | 0.6 | CCGT 04T1 |
| E08K SCLCR/L-06 | 8.00 | 125.00 | - | 5.00 | 7.6 | 3.8 | 0.0 | 10.00 | 1 | 3.0 | -11.0 | 1.0 | CC.. 0602 |
| E10M SCLCR/L-06 | 10.00 | 150.00 | - | 7.00 | 9.2 | 4.6 | 0.0 | 14.00 | 1 | 3.0 | -7.0 | 1.0 | CC.. 0602 |
| E12Q SCLCR/L-06 | 12.00 | 180.00 | - | 9.00 | 11.0 | 5.5 | 0.0 | 16.00 | 1 | 0.0 | -7.0 | 1.0 | CC.. 0602 |
| E16R SCLCR/L-06 | 16.00 | 200.00 | - | 11.00 | 14.0 | 7.0 | 0.0 | 20.00 | 1 | 0.0 | -7.0 | 1.0 | CC.. 0602 |
| E16R SCLCR/L-09 | 16.00 | 200.00 | - | 11.00 | 15.0 | 7.5 | 0.0 | 20.00 | 1 | 0.0 | -6.0 | 3.0 | CC.. 09T3 |
| S08K SCLCR/L-06 | 8.00 | 125.00 | 12.0 | 5.00 | 8.0 | 3.8 | 0.0 | 10.50 | 0 | 0.0 | -11.0 | 1.0 | CC.. 0602 |
| S10L SCLCL-06 | 10.00 | 140.00 | 20.0 | 7.00 | 9.0 | 4.5 | 0.0 | 13.00 | 0 | 0.0 | -7.0 | 1.0 | CC.. 0602 |
| S10L SCLCR-06 | 10.00 | 140.00 | 20.0 | 7.00 | 9.0 | 4.5 | 0.0 | 13.00 | 0 | 3.0 | -7.0 | 1.0 | CC.. 0602 |
| S12M SCLCR/L-06 | 12.00 | 150.00 | 12.0 | 9.00 | 12.0 | 5.5 | 0.0 | 16.00 | 0 | 0.0 | -7.0 | 1.0 | CC.. 0602 |
| S16Q SCLCR/L-09 | 16.00 | 180.00 | 45.0 | 11.00 | 15.0 | 7.5 | 0.0 | 20.00 | 0 | 0.0 | -6.0 | 3.0 | CC.. 09T3 |
| S20R SCLCR/L-09 | 20.00 | 200.00 | 50.0 | 13.00 | 18.0 | 9.0 | 0.0 | 25.00 | 0 | 0.0 | -4.0 | 3.0 | CC.. 09T3 |
| S25S SCLCR/L-09 | 25.00 | 250.00 | 55.0 | 17.00 | 23.0 | 11.5 | 0.0 | 35.00 | 0 | 0.0 | -4.0 | 3.0 | CC.. 09T3 |
- S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: CCGT-F1M-20P (185) CCMT-CERMET (187) CCGT-F1P (184) CCMT-F3P (185) CCMT-M3P (185) CCMT-F3M (186) CCMT-M3M (186)
- CCMT-PF (188)
- CCMT/CCGT-SM (187)
- CCET-WF (189)
- CCMT-WG (189)
- CCGT-AS (212)
- CCGT-AF (212)
- CCMT-14 (188)
- CCMT/CCGT (188)
- CCGW/CCMT (CBN) (227)
- CCGW/CCMW-2 (CBN) (228)
- CCMT (PCD) (222)
Spare Parts
| Designation | ||||
| A04F SCLCR/L-03 | CSTA-1.6 | T-6F | ||
| A05F SCLCR/L-03 | CSTA-1.6 | T-6F | ||
| A06G SCLCR/L-04 | CSTB-2 | T-6F | ||
| A07G SCLCR/L-04 | CSTB-2 | T-6F | ||
| A20R SCLCR/L-09 | SR 16-236 | T-15/5 | HW 2.0 | PL 20 |
| A25S SCLCR/L-09 | SR 16-236 | T-15/5 | HW 2.0 | PL 25 |
| E04G SCLCR/L-03 | CSTA-1.6 | T-6F | ||
| E05G SCLCR/L-03 | CSTA-1.6 | T-6F | ||
| E06H SCLCR/L-04 | CSTB-2 | T-6F | ||
| E07H SCLCR/L-04 | CSTB-2 | T-6F | ||
| E08K SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| E10M SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| E12Q SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| E16R SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| E16R SCLCR/L-09 | SR 16-236 | T-15/5 | ||
| S08K SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| S10L SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| S12M SCLCR/L-06 | SR 14-548 | T-7/5 | ||
| S16Q SCLCR/L-09 | SR 16-236/L8.6 | T-15/5 | ||
| S20R SCLCR/L-09 | SR 16-236 | T-15/5 | ||
| S25S SCLCR/L-09 | SR 16-236 | T-15/5 |
