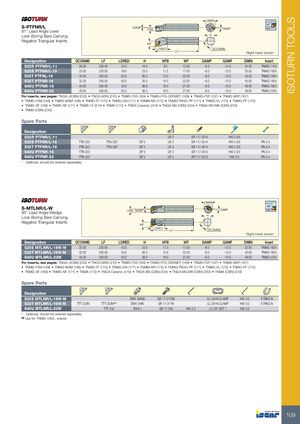

Каталог Iscar токарные державки ISO 2022 - страница 111
Навигация
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
Каталог Iscar решения для глубокого сверления
Каталог Iscar торцевые фрезы 2022
Новые режущие инструменты Iscar 2026
Каталог Iscar инструмент для обработки отверстий
| DMIN | ||||||||||
| S-PTFNR/L | G | HFB AMP | GAMF | 91º | ||||||
| 91° Lead Angle Lever Lock Boring Bars Carrying Negative Triangular Inserts | WF | LDRED L | F | H DC | ONMS | Right-h | and shown | |||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | GAMP | GAMF | DMIN | Insert |
| S20R PTFNR/L-11 | 20.00 | 200.00 | 32.0 | 18.0 | 9.0 | 13.00 | -6.0 | -14.0 | 24.00 | TNMG 1103 |
| S25S PTFNR/L-16 | 25.00 | 250.00 | 48.0 | 23.0 | 11.5 | 17.00 | -6.0 | -13.0 | 32.50 | TNMG 1604 |
| S32T PTFNL-16 | 32.00 | 300.00 | 63.0 | 30.0 | 15.0 | 22.00 | -6.0 | -13.0 | 40.00 | TNMG 1604 |
| S32T PTFNR-16 | 32.00 | 300.00 | 63.0 | 30.0 | 15.0 | 22.00 | -6.0 | -10.0 | 40.00 | TNMG 1604 |
| S40U PTFNR-16 | 40.00 | 350.00 | 30.0 | 36.0 | 18.0 | 27.00 | -6.0 | -10.0 | 49.00 | TNMG 1604 |
| S40U PTFNR-22 | 40.00 | 350.00 | 62.0 | 36.0 | 18.0 | 27.00 | -6.0 | -10.0 | 49.00 | TNMG 2204 |
For inserts, see pages: TNGA-J(CBN) (233) TNGG-M3N (210) TNMG-F3S (169) TNMG-FFG-CERMET (169) TNMG-F3P (167) TNMG-M3P (167)
- TNMG-F3M (168)
- TNMG-M3M (168)
- TNMG-TF (170)
- TNMG-GN (171)
- TNMM-NR (172)
- TNMG/TNGG-PP (171)
- TNMG-VL (170)
- TNMG-PF (170)
- TNMG-SF (169)
- TNMG-NF (171)
- TNMS-12 (214)
- TNMA (172)
- TNGA-Ceramic (219)
- TNGA-M3 (CBN) (234)
- TNGA-MC/M6 (CBN) (233)
- TNMA (CBN) (233)
Spare Parts
| Designation | |||||||
| S20R PTFNR/L-11 | LR 2 | SR 117-2015 | HW 2.0/5 | ||||
| S25S PTFNR/L-16 | TTN 322 | TTN 332 | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 |
| S32T PTFNR/L-16 | TTN 322 | TTN 332 | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 |
| S40U PTFNR-16 | TTN 322 | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 | |
| S40U PTFNR-22 | TTN 422 | SP 4 | LR 4 | SR 117-2010 | HW 3.0 | PN 3-4 |
- Optional, should be ordered separately
| DMIN | ||||||||||
| -MTLNR/L-W | HFB | GAMP | GAMF | 95º | ||||||
| 5° Lead Angle Wedge ock Boring Bars Carrying egative Triangular Inserts | WF | LF LDRED | H DCO | NMS | Right- | hand shown | ||||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | GAMP | GAMF | DMIN | Insert |
| S25S MTLNR/L-16W-M | 25.00 | 250.00 | 40.0 | 23.0 | 11.5 | 17.00 | -6.0 | -12.0 | 32.00 | TNMG 1604 |
| S32T MTLNR/L-16W-M | 32.00 | 300.00 | 50.0 | 30.0 | 15.0 | 22.00 | -6.0 | -12.0 | 40.00 | TNMG 1604 |
| S40U MTLNR/L-22W | 40.00 | 350.00 | 50.0 | 36.0 | 18.0 | 27.00 | -6.0 | -10.0 | 49.00 | TNMG 2204 |
For inserts, see pages: TNGA-J(CBN) (233) TNGG-M3N (210) TNMG-F3S (169) TNMG-FFG-CERMET (169) TNMG-F3P (167) TNMG-M3P (167)
- TNMG-F3M (168)
- TNMG-M3M (168)
- TNMG-TF (170)
- TNMG-GN (171)
- TNMM-NR (172)
- TNMG/TNGG-PP (171)
- TNMG-VL (170)
- TNMG-PF (170)
- TNMG-SF (169)
- TNMG-NF (171)
- TNMA (172)
- TNGA-Ceramic (219)
- TNGA-M3 (CBN) (234)
- TNGA-MC/M6 (CBN) (233)
- TNMA (CBN) (233)
Spare Parts
| Designation | ||||||||
| S25S MTLNR/L-16W-M | ZNW 3WNS | SR 17-317NS | LC 291N CLAMP | HW 3.0 | ERINGN | |||
| S32T MTLNR/L-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WN | SR 17-317N | LC 291N CLAMP | HW 3.0 | ERINGN | |
| S40U MTLNR/L-22W | TTT 434 | ZNW 4 | SR 17-295 | HW 2.5 | LC 281 SET 1 | HW 3.0 |
- Optional, should be ordered separately
(a) Use for TNMG 1603.. inserts
