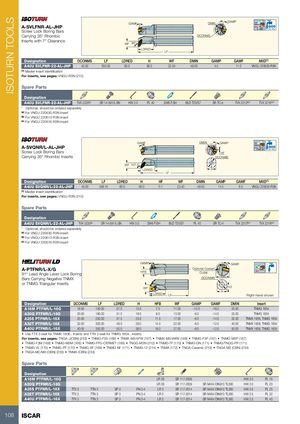

Каталог Iscar токарные державки ISO 2022 - страница 110
Навигация
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
Каталог Iscar решения для глубокого сверления
Каталог Iscar торцевые фрезы 2022
Новые режущие инструменты Iscar 2026
Каталог Iscar инструмент для обработки отверстий
| -SVLFNR-AL-JHP crew Lock Boring Bars arrying 35° Rhombic serts with 7° Clearance | GAMF WF 95° LDRED | LF | DC | ONMS G DMIN | AMP | 95º 48° MAX Bar Max | ||
| Designation | DCONMS | LF | LDRED H | WF | DMIN | GAMP | GAMF | MIID(1) |
| A40U SVLFNR-22-AL-JHP | 40.00 | 350.00 | 60.0 36.0 | 22.50 | 48.00 | 4.5 | 11.0 | VNGU 220630-R3N |
(1) Master insert identification
For inserts, see pages: VNGU-R3N (210)
Spare Parts
Designation
A40U SVLFNR-22-AL-JHP TVX 2230(a) SR 14-591/L-SN HW 3.0 PL 40 SW6-T-SH BLD T20/S7 SR TC-4 TVX 2212(b)* TVX 2216(c)*
- Optional, should be ordered separately
(a) For VNGU 220630-R3N insert (b) For VNGU 220612-R3N insert (c) For VNGU 220616-R3N insert
| A-SVQNR/L-AL-JHP Screw Lock Boring Bars Carrying 35° Rhombic Inserts | GAMF WF 107.5˚ LDRED LF | HF GAMP DMIN DCONMS H | 107.5º 35° MAX Bar Max | ||
| Designation | DCONMS | LF LDRED H HF WF | DMIN GAMP | GAMF | MIID(1) |
| A40U SVQNR/L-22-AL-JHP | 40.00 | 348.10 60.0 36.0 0.1 23.40 | 49.00 14.5 | 6.5 | VNGU 220630-R3N |
(1) Master insert identification
For inserts, see pages: VNGU-R3N (210)
Spare Parts
Designation
A40U SVQNR/L-22-AL-JHP TVX 2230(a) SR 14-591/L-SN HW 3.0 SW6-T-SH BLD T20/S7 PL 40 SR TC-4 TVX 2212(b)* TVX 2216(c)*
- Optional, should be ordered separately
(a) For VNGU 220630-R3N insert (b) For VNGU 220612-R3N insert (c) For VNGU 220616-R3N insert
| A-PTFNR/L-X/G 91° Lead Angle Lever Lock Bars Carrying Negative TN or TNMG Triangular Inserts | Boring MX | GAMP HFB WF | LDRED | LF | DMIN DCONMS H Optional Coolant Outlet | GAMF H/2 | Right-hand shown 91º | ||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | GAMP GAMF | DMIN | Insert |
| A16M PTFNR/L-16G | 16.00 | 150.00 | 31.0 | 15.0 | 7.5 | 11.00 | -12.0 -16.0 | 20.00 | TNMG 1604 |
| A20Q PTFNR/L-16G | 20.00 | 180.00 | 31.0 | 18.0 | 9.0 | 13.00 | -6.0 -14.0 | 25.00 | TNMG 1604 |
| A25S PTFNR/L-16X | 25.00 | 250.00 | 37.5 | 23.0 | 11.5 | 17.00 | -6.0 -14.0 | 32.00 | TNMX 1606, TNMG 1604 |
| A32T PTFNR/L-16X | 32.00 | 300.00 | 48.0 | 29.0 | 14.5 | 22.00 | -6.0 -12.0 | 40.00 | TNMX 1606, TNMG 1604 |
| A40U PTFNR/L-16X | 40.00 | 350.00 | 50.0 | 36.0 | 18.0 | 27.00 | -6.0 -12.0 | 50.00 | TNMX 1606, TNMG 1604 |
- Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts
For inserts, see pages: TNGA-J(CBN) (233) TNMG-F3S (169) TNMX-M3/4PW (167) TNMX-M3/4MW (168) TNMG-F3P (167) TNMG-M3P (167)
- TNMG-F3M (168)
- TNMG-M3M (168)
- TNMG-FFG-CERMET (169)
- TNGG-M3N (210)
- TNMG-TF (170)
- TNMG-GN (171)
- TNMG/TNGG-PP (171)
- TNMG-VL (170)
- TNMG-PF (170)
- TNMG-SF (169)
- TNMG-NF (171)
- TNMS-12 (214)
- TNMA (172)
- TNGA-Ceramic (219)
- TNGA-M3 (CBN) (234)
- TNGA-MC/M6 (CBN) (233)
- TNMA (CBN) (233)
Spare Parts
| Designation | |||||||||
| A16M PTFNR/L-16G | LR 3S | SR 117-2009 | HW 2.0 | PL 16 | |||||
| A20Q PTFNR/L-16G | LR 3S | SR 117-2009 | SR M4X4 DIN913 TL360 | HW 2.0 | PL 20 | ||||
| A25S PTFNR/L-16X | TTX 3 | TTN 3 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | SR M4X4 DIN913 TL360 | HW 2.5 | PL 25 |
| A32T PTFNR/L-16X | TTX 3 | TTN 3 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | SR M4X4 DIN913 TL360 | HW 2.5 | PL 32 |
| A40U PTFNR/L-16X | TTX 3 | TTN 3 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | SR M4X4 DIN913 TL360 | HW 2.5 | PL 40 |
