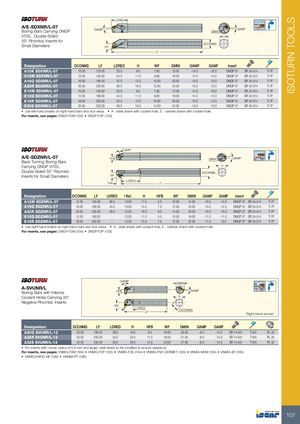

Каталог Iscar токарные державки ISO 2022 - страница 109
Навигация
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
Каталог Iscar решения для глубокого сверления
Каталог Iscar торцевые фрезы 2022
Новые режущие инструменты Iscar 2026
Каталог Iscar инструмент для обработки отверстий
| A/E-SDXNR/L-07 | GAMP | LDRED | GA | MF 100º | |||||||
| Boring Bars Carrying DNGP | DMIN | ||||||||||
| 0703.. Double-Sided | H | ||||||||||
| 55° Rhombic Inserts for Small Diameters | WF | DCONMS | |||||||||
| LF | |||||||||||
| Designation | DCONMS | LF | LDRED | H | WF | DMIN | GAMP | GAMF | Insert | ||
| A10K SDXNR/L-07 | 10.00 | 125.00 | 20.0 | 9.0 | 7.60 | 13.00 | -14.0 | -16.0 | DNGP 07 | SR 34-514 | T-7F |
| A12M SDXNR/L-07 | 12.00 | 150.00 | 24.0 | 11.0 | 8.60 | 16.00 | -14.0 | -14.0 | DNGP 07 | SR 34-514 | T-7F |
| A16Q SDXNR/L-07 | 16.00 | 180.00 | 32.0 | 15.0 | 10.60 | 20.00 | -13.0 | -13.0 | DNGP 07 | SR 34-514 | T-7F |
| A20R SDXNR/L-07 | 20.00 | 200.00 | 36.0 | 18.0 | 12.60 | 24.00 | -13.0 | -12.0 | DNGP 07 | SR 34-514 | T-7F |
| E10M SDXNR/L-07 | 10.00 | 150.00 | 20.0 | 9.0 | 7.60 | 13.00 | -14.0 | -16.0 | DNGP 07 | SR 34-514 | T-7F |
| E12Q SDXNR/L-07 | 12.00 | 180.00 | 24.0 | 11.0 | 8.60 | 16.00 | -14.0 | -14.0 | DNGP 07 | SR 34-514 | T-7F |
| E16R SDXNR/L-07 | 16.00 | 200.00 | 32.0 | 15.0 | 10.60 | 20.00 | -13.0 | -13.0 | DNGP 07 | SR 34-514 | T-7F |
| E20S SDXNR/L-07 | 20.00 | 250.00 | 36.0 | 18.0 | 12.60 | 24.00 | -13.0 | -12.0 | DNGP 07 | SR 34-514 | T-7F |
- Use left-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: DNGP-F2M (156) DNGP-F2P (155)
| A/E-SDZNR/L-07 Back Turning Boring Bars | HFB GAMP DMIN GAMF | 93º |
| Carrying DNGP 0703.. Double-Sided 55° Rhombic Inserts for Small Diameters | lRef. DCONMS WF LF H LDRED |
| Designation | DCONMS | LF | LDRED | l Ref. | H | HFB | WF | DMIN | GAMP | GAMF | Insert | ||
| A12M SDZNR/L-07 | 12.00 | 150.00 | 38.0 | 13.00 | 11.0 | 5.5 | 10.50 | 14.00 | -10.0 | -14.0 | DNGP 07 | SR 34-514 | T-7F |
| A16Q SDZNR/L-07 | 16.00 | 180.00 | 43.0 | 13.00 | 15.0 | 7.5 | 12.50 | 16.00 | -10.0 | -12.5 | DNGP 07 | SR 34-514 | T-7F |
| A20R SDZNR/L-07 | 20.00 | 200.00 | 48.0 | 12.50 | 18.0 | 9.0 | 14.50 | 20.00 | -10.0 | -10.5 | DNGP 07 | SR 34-514 | T-7F |
| E12Q SDZNR/L-07 | 12.00 | 180.00 | - | 13.00 | 11.0 | 5.5 | 10.50 | 18.00 | -11.0 | -11.0 | DNGP 07 | SR 34-514 | T-7F |
| E16R SDZNR/L-07 | 16.00 | 200.00 | - | 13.00 | 15.0 | 7.5 | 12.50 | 22.00 | -11.0 | -9.0 | DNGP 07 | SR 34-514 | T-7F |
- Use right-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: DNGP-F2M (156) DNGP-F2P (155)
| A-SVUNR/L Boring Bars with Internal Coolant Holes Carrying 35° Negative Rhombic Inserts | WF HFB GA | LF LDRED MP | DMIN H DCON | GA MS | MF | Right-hand 93º 30° MAX | shown | |||||
| Designation | DCONMS | LF | LDRED | H HFB | WF | DMI | N | GAMP | GAMF | |||
| A20Q SVUNR/L-12 | 20.00 | 180.00 | 38.0 | 18.0 9.0 | 16.00 | 26.50 | -6.5 | -14.0 | SR 14-551 | T-9/5 | PL 20 | |
| A25R SVUNR/L-12 | 25.00 | 200.00 | 35.0 | 23.0 11.5 | 18.50 | 31.50 | -6.5 | -14.0 | SR 14-551 | T-9/5 | PL 25 | |
| A32S SVUNR/L-12 | 32.00 | 250.00 | 50.0 | 29.0 14.5 | 23.00 | 37.00 | -6.5 | -14.0 | SR 14-551 | T-9/5 | PL 32 |
- For inserts with corner radius of 0.8 mm and larger, seat needs to be modified to ensure clearance.
For inserts, see pages: VNMG-F3M (164) VNMG-F3P (163) VNMG-F3S (164) VNMG-FNF-CERMET (165) VNMG-M3M (164) VNMG-SF (165)
- VNMG/VNGG-NF (165)
- VNMM-PP (166)
