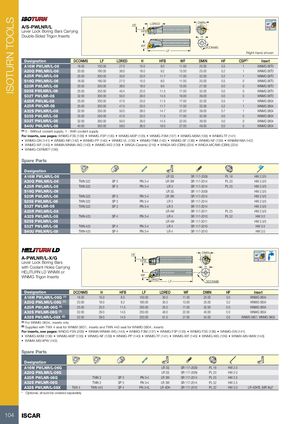

| A/S-PWLNR/L Lever Lock Boring Bars Ca | rrying | LDRED HFB HF | DMIN | 95º | ||||
| Double-Sided Trigon Insert | s | WF LF | DCON H | MS | Right-hand shown | |||
| Designation | DCONMS | LF | LDRED | H HFB | WF | DMIN | HF | CSP(1) Insert |
| A16M PWLNR/L-06 | 16.00 | 150.00 | 27.0 | 15.0 8.0 | 11.00 | 20.00 | 0.5 | 1 WNMG 06T3 |
| A20Q PWLNR/L-06 | 20.00 | 180.00 | 36.0 | 18.0 9.2 | 13.00 | 25.00 | 0.2 | 1 WNMG 06T3 |
| A25R PWLNR/L-06 | 25.00 | 200.00 | 35.0 | 23.0 11.7 | 17.00 | 32.00 | 0.2 | 1 WNMG 06T3 |
| S16Q PWLNR/L-06 | 16.00 | 180.00 | 27.0 | 15.0 8.0 | 11.00 | 20.00 | 0.5 | 0 WNMG 06T3 |
| S20R PWLNR/L-06 | 20.00 | 200.00 | 36.0 | 18.0 9.0 | 13.00 | 27.00 | 0.0 | 0 WNMG 06T3 |
| S25S PWLNR/L-06 | 25.00 | 250.00 | 40.4 | 23.0 11.5 | 17.00 | 32.00 | 0.0 | 0 WNMG 06T3 |
| S32T PWLNR-06 | 32.00 | 300.00 | 50.0 | 29.0 14.5 | 19.00 | 39.00 | 0.0 | 0 WNMG 06T3 |
| A25R PWLNL-08 | 25.00 | 200.00 | 47.0 | 23.0 11.5 | 17.00 | 32.00 | 0.5 | 1 WNMG 0804 |
| A25R PWLNR-08 | 25.00 | 200.00 | 47.5 | 23.0 11.7 | 17.00 | 32.00 | 0.2 | 1 WNMG 0804 |
| A32S PWLNR/L-08 | 32.00 | 250.00 | 50.0 | 28.0 14.7 | 22.00 | 39.00 | 0.7 | 1 WNMG 0804 |
| S25S PWLNR/L-08 | 25.00 | 250.00 | 47.0 | 23.0 11.5 | 17.00 | 32.00 | 0.0 | 0 WNMG 0804 |
| S32T PWLNR/L-08 | 32.00 | 300.00 | 50.0 | 29.0 14.5 | 22.00 | 39.00 | 0.0 | 0 WNMG 0804 |
| S40U PWLNR/L-08 | 40.00 | 350.00 | 59.0 | 36.0 18.0 | 27.00 | 49.00 | 0.0 | 0 WNMG 0804 |
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: WNMG-F3S (138) WNMG-F3P (135) WNMG-M3P (135) WNMG-F3M (137) WNMG-M3M (138) WNMG-TF (141)
- WNMG-GN (141)
- WNMG-NR (142)
- WNMG-PP (140)
- WNMG-VL (139)
- WNMG-TNM (142)
- WNMG-SF (138)
- WNMG-NF (139)
- WNMM-NM (142)
- WNMG-WF (140)
- WNMA/WNMA-WG (143)
- WNMG-WG (139)
- WNGA-Ceramic (216)
- WNGA-M3 (CBN) (224)
- WNGA-MC/M6 (CBN) (224)
- WNMG-CERMET (136)
Spare Parts
| Designation | |||||||
| A16M PWLNR/L-06 | LR 3S | SR 117-2009 | PL 16 | HW 2.0/5 | |||
| A20Q PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | PL 20 | HW 2.5/5 |
| A25R PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | PL 25 | HW 2.5/5 |
| S16Q PWLNR/L-06 | LR 3S | SR 117-2009 | HW 2.0/5 | ||||
| S20R PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | HW 2.5/5 | |
| S25S PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | HW 2.5/5 | |
| S32T PWLNR-06 | TWN 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | HW 2.5/5 | |
| A25R PWLNR/L-08 | LR 4M | SR 117-2011 | PL 25 | HW 2.5/5 | |||
| A32S PWLNR/L-08 | TWN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | PL 32 | HW 3.0 |
| S25S PWLNR/L-08 | LR 4M | SR 117-2011 | HW 2.5/5 | ||||
| S32T PWLNR/L-08 | TWN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 | |
| S40U PWLNR/L-08 | TWN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| A-PWLNR/L-X/G Lever Lock Boring Bars with Coolant Holes Carrying HELITURN LD WNMX or WNMG Trigon Inserts | WF HFB HF | LF LDRED | H DCONMS DMIN | 95º | |||||
| Designation | DCONMS | H | HFB | LF | LDRED | WF | DMIN | HF | Insert |
| A16M PWLNR/L-06G(1) | 16.00 | 15.0 | 8.0 | 150.00 | 30.0 | 11.00 | 25.00 | 0.5 | WNMG 0604 |
| A20Q PWLNR/L-06G(1) | 20.00 | 18.0 | 9.2 | 180.00 | 35.0 | 13.00 | 25.00 | 0.2 | WNMG 0604 |
| A25R PWLNR-06G(1) | 25.00 | 23.0 | 11.5 | 200.00 | 35.0 | 17.00 | 32.00 | 0.0 | WNMG 0604 |
| A32S PWLNR-06G(1) | 32.00 | 29.0 | 14.5 | 250.00 | 48.0 | 22.00 | 40.00 | 0.0 | WNMG 0604 |
| A32S PWLNR/L-08X(2) | 32.00 | 29.0 | 14.5 | 250.00 | 51.0 | 21.00 | 54.00 | 0.0 | WNMX 0807, WNMG 0804 |
(1) For WNMG 0604.. inserts only (2) Supplied with TWX 4 seat for WNMX 0807.. inserts and TWN 443 seat for WNMG 0804.. inserts
For inserts, see pages: WNGG-F3N (209) WNMA/WNMA-WG (143) WNMG-F3M (137) WNMG-F3P (135) WNMG-F3S (138) WNMG-GN (141)
- WNMG-M3M (138)
- WNMG-M3P (135)
- WNMG-NF (139)
- WNMG-PP (140)
- WNMG-TF (141)
- WNMG-WF (140)
- WNMG-WG (139)
- WNMX-M3/4MW (143)
- WNMX-M3/4PW (143)
Spare Parts
| Designation | |||||||||
| A16M PWLNR/L-06G | LR 3S | SR 117-2009 | PL 16 | HW 2.0 | |||||
| A20Q PWLNR/L-06G | LR 3S | SR 117-2009 | PL 20 | HW 2.0 | |||||
| A25R PWLNR-06G | TWN 3 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | PL 25 | HW 2.5 | ||
| A32S PWLNR-06G | TWN 3 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | PL 32 | HW 2.5 | ||
| A32S PWLNR/L-08X | TWX 4 | TWN 443 | SP 4 | PN 3-4L | LR 4DH | SR 117-2010 | PL 32 | HW 3.0 | LR 4DHTL(MR INJ) |
