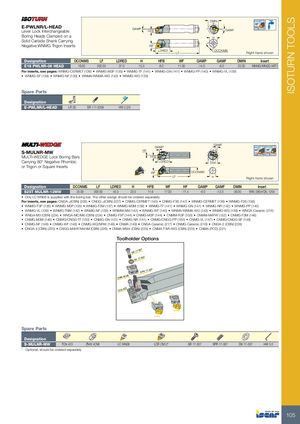

E-PWLNR/L-HEAD 95º
Lever Lock Interchangeable GAMP GAMF
Boring Heads Clamped on a H Solid Carbide Shank Carrying Negative WNMG Trigon Inserts WF
LDRED DCONMS LF Right-hand shown
| Designation | DCONMS | LF | LDRED | H | HFB | WF | GAMP | GAMF | DMIN | Insert | |
| E16 PWLNR-06 HEAD | 16.00 | 200.00 | 37.0 | 15.0 | 8.0 | 11.00 | -14.0 | -6.0 | 20.00 | WNMG/WNGG 06T3 |
For inserts, see pages: WNMG-CERMET (136) WNMG-M3P (135) WNMG-TF (141) WNMG-GN (141) WNMG-PP (140) WNMG-VL (139)
- WNMG-SF (138)
- WNMG-NF (139)
- WNMA/WNMA-WG (143)
- WNMG-WG (139)
Spare Parts
Designation
E-PWLNR/L-HEAD LR 3S SR 117-2009 HW 2.0/5
GAMF GAMP
S-MULNR-MW HF 95º 95º
MULTI-WEDGE Lock Boring Bars HFB Carrying 80° Negative Rhombic LDRED DMIN or Trigon or Square Inserts
WF DCONMS
LF H Right-hand shown
| Designation | DCONMS | LF | LDRED | H | HFB | WF | HF | GAMP | GAMF | DMIN | Insert | |
| S25T MULNR-12MW | 25.00 | 300.00 | 45.0 | 23.0 | 11.6 | 17.00 | -11.4 | -6.0 | -12.0 | 36.00 | WM..0804/CN..1204 |
- Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately.
For inserts, see pages: CNGA-J(CBN) (226) CNGG-J(CBN) (227) CNMG-CERMET (145) CNMG-F3S (147) WNMG-CERMET (136) WNMG-F3S (138)
- WNMG-F3P (135)
- WNMG-M3P (135)
- WNMG-F3M (137)
- WNMG-M3M (138)
- WNMG-TF (141)
- WNMG-GN (141)
- WNMG-NR (142)
- WNMG-PP (140)
- WNMG-VL (139)
- WNMG-TNM (142)
- WNMG-NF (139)
- WNMM-NM (142)
- WNMG-WF (140)
- WNMA/WNMA-WG (143)
- WNMG-WG (139)
- WNGA-Ceramic (216)
- WNGA-M3 (CBN) (224)
- WNGA-MC/M6 (CBN) (224)
- CNMG-F3P (144)
- CNMG-M3P (144)
- CNMM-R3P (153)
- CNMM-M4PW (152)
- CNMG-F3M (146)
- CNMG-M3M (146)
- CNMG/CNGG-TF (150)
- CNMG-GN (151)
- CNMG-NR (151)
- CNMG/CNGG-PP (150)
- CNMG-VL (147)
- CNMG/CNGG-SF (148)
- CNMG-NF (148)
- CNMG-WF (148)
- CNMG-WG/NRW (149)
- CNMA (149)
- CNGA-Ceramic (217)
- CNMG-Ceramic (216)
- CNGA-2 (CBN) (226)
- CNGA-4 (CBN) (225)
- CNGG-M4HF/M4HM (CBN) (226)
- CNMA-MW4 (CBN) (225)
- CNMA-T/M1/WG (CBN) (225)
- CNMA (PCD) (221)
Toolholder Options
SR 17-307 DK 17-307
SPR 17-307 ZNW-4CMI #### MULNR/L-12M S-MULNR/L TCN 423
Spare Parts
Designation
S-MULNR-MW TCN 423 ZNW 4CMI
* Optional, should be ordered separately
7102122
LC WN08
WNMG LC WN08 (_WNM_ 08(43 CNMG LCR CN12 / LCL CN12 (_CNM_ 12(43
LCR CN12* SR 17-307 SPR 17-307 DK 17-307 HW 3.0
