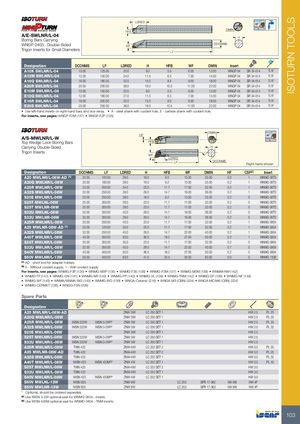

| LD HFB | RED | DMIN | 95º | |||||||
| A/E-SWLNR/L-04 Boring Bars Carrying WNGP 0403.. Double-Side Trigon Inserts for Small Dia | d meters | WF | LF | DCON | MS H | |||||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | DMIN | Insert | ||
| A10K SWLNR/L-04 | 10.00 | 125.00 | 20.0 | 9.0 | 5.5 | 6.00 | 12.00 | WNGP 04 | SR 34-514 | T-7F |
| A12M SWLNR/L-04 | 12.00 | 150.00 | 24.0 | 11.0 | 6.5 | 7.00 | 14.00 | WNGP 04 | SR 34-514 | T-7F |
| A16Q SWLNR/L-04 | 16.00 | 180.00 | 32.0 | 15.0 | 8.5 | 9.00 | 18.00 | WNGP 04 | SR 34-514 | T-7F |
| A20R SWLNR/L-04 | 20.00 | 200.00 | 36.0 | 18.0 | 10.5 | 11.00 | 22.00 | WNGP 04 | SR 34-514 | T-7F |
| E10M SWLNR/L-04 | 10.00 | 150.00 | 25.0 | 9.0 | 5.5 | 6.00 | 12.00 | WNGP 04 | SR 34-514 | T-7F |
| E12Q SWLNR/L-04 | 12.00 | 180.00 | 27.0 | 11.0 | 6.5 | 7.00 | 14.00 | WNGP 04 | SR 34-514 | T-7F |
| E16R SWLNR/L-04 | 16.00 | 200.00 | 32.0 | 15.0 | 8.5 | 9.00 | 18.00 | WNGP 04 | SR 34-514 | T-7F |
| E20S SWLNR/L-04 | 20.00 | 250.00 | 36.0 | 18.0 | 10.5 | 11.00 | 22.00 | WNGP 04 | SR 34-514 | T-7F |
- Use left-hand inserts on right-hand bars and vice versa.
- A - steel shank with coolant hole, E - carbide shank with coolant hole.
For inserts, see pages: WNGP-F2M (137) WNGP-F2P (135)
| A/S-MWLNR/L-W | HF | DMIN | 95º | |||||||
| Top Wedge Lock Boring Bars Carrying Double-Sided | HFB | H | ||||||||
| Trigon Inserts | WF | LDRED LF | DCON | MS | Right | -hand shown | ||||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | DMIN | HF | CSP(2) | Insert |
| A20 MWLNR/L-06W-AD(1) | 20.00 | 100.00 | 28.0 | 18.0 | 9.0 | 13.00 | 25.00 | 0.0 | 1 | WNMG 06T3 |
| A20Q MWLNR/L-06W | 20.00 | 180.00 | 28.0 | 18.0 | 9.2 | 13.00 | 25.00 | 0.2 | 1 | WNMG 06T3 |
| A25R MWLNR/L-06W | 25.00 | 200.00 | 34.0 | 23.0 | 11.7 | 17.00 | 32.00 | 0.2 | 1 | WNMG 06T3 |
| A32S MWLNR/L-06W | 32.00 | 250.00 | 28.0 | 29.0 | 14.7 | 19.00 | 36.00 | 0.2 | 1 | WNMG 06T3 |
| S20S MWLNR/L-06W | 20.00 | 250.00 | 28.0 | 18.0 | 9.2 | 13.00 | 25.00 | 0.2 | 0 | WNMG 06T3 |
| S25T MWLNL-06W | 25.00 | 300.00 | 28.0 | 23.0 | 11.7 | 17.00 | 32.00 | 0.2 | 0 | WNMG 06T3 |
| S25T MWLNR-06W | 25.00 | 300.00 | 28.0 | 23.0 | 11.7 | 17.00 | 32.00 | 0.2 | 0 | WNMG 06T3 |
| S32U MWLNL-06W | 32.00 | 350.00 | 40.0 | 29.0 | 14.7 | 19.00 | 36.00 | 0.2 | 0 | WNMG 06T3 |
| S32U MWLNR-06W | 32.00 | 350.00 | 28.0 | 29.0 | 14.7 | 19.00 | 36.00 | 0.2 | 0 | WNMG 06T3 |
| A25R MWLNR/L-08W | 25.00 | 200.00 | 40.0 | 23.0 | 11.7 | 17.00 | 32.00 | 0.2 | 1 | WNMG 0804 |
| A25 MWLNR-08W-AD(1) | 25.00 | 120.00 | 35.0 | 23.0 | 11.7 | 17.00 | 32.00 | 0.2 | 1 | WNMG 0804 |
| A32S MWLNR/L-08W | 32.00 | 250.00 | 45.0 | 29.0 | 14.7 | 22.00 | 40.00 | 0.2 | 1 | WNMG 0804 |
| A40T MWLNR/L-08W | 40.00 | 300.00 | 50.0 | 36.0 | 18.2 | 27.00 | 50.00 | 0.2 | 1 | WNMG 0804 |
| S25T MWLNR/L-08W | 25.00 | 300.00 | 35.0 | 23.0 | 11.7 | 17.00 | 32.00 | 0.2 | 0 | WNMG 0804 |
| S32U MWLNR/L-08W | 32.00 | 350.00 | 45.0 | 28.0 | 14.7 | 22.00 | 40.00 | 0.7 | 0 | WNMG 0804 |
| S40V MWLNR/L-08W | 40.00 | 400.00 | 50.0 | 36.0 | 18.2 | 27.00 | 50.00 | 0.2 | 0 | WNMG 0804 |
| S50V MWLNR/L-13W | 50.00 | 400.00 | 63.0 | 47.0 | 23.5 | 35.00 | 63.00 | 0.0 | 0 | WNMG 1306 |
(1) AD - short tool for adapter holders (2) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: WNMG-F3P (135) WNMG-M3P (135) WNMG-F3S (138) WNMG-F3M (137) WNMG-M3M (138) WNMM-NM (142)
- WNMG-TF (141)
- WNMG-GN (141)
- WNMG-NR (142)
- WNMG-PP (140)
- WNMG-VL (139)
- WNMG-TNM (142)
- WNMG-SF (138)
- WNMG-NF (139)
- WNMG-WF (140)
- WNMA/WNMA-WG (143)
- WNMG-WG (139)
- WNGA-Ceramic (216)
- WNGA-M3 (CBN) (224)
- WNGA-MC/M6 (CBN) (224)
- WNMG-CERMET (136)
- WNGG-F3N (209)
Spare Parts
| Designation | |||||||||
| A20 MWLNR/L-06W-AD | ZNW 3WI | LC 250 SET 1 | HW 2.5 | PL 20 | |||||
| A20Q MWLNR/L-06W | ZNW 3WI | LC 250 SET 1 | HW 2.5 | PL 20 | |||||
| A25R MWLNR/L-06W | IWSN 322W | IWSN 3-2W(a) | ZNW 3W | LC 250 SET 1 | HW 2.5 | PL 25 | |||
| A32S MWLNR/L-06W | IWSN 322W | IWSN 3-2W(a) | ZNW 3W | LC 250 SET 1 | HW 2.5 | PL 32 | |||
| S20S MWLNR/L-06W | ZNW 3WI | LC 250 SET 1 | HW 2.5 | ||||||
| S25T MWLNR/L-06W | IWSN 322W | IWSN 3-2W(a) | ZNW 3W | LC 250 SET 1 | HW 2.5 | ||||
| S32U MWLNR/L-06W | IWSN 322W | IWSN 3-2W(a) | ZNW 3W | LC 250 SET 1 | HW 2.5 | ||||
| A25R MWLNR/L-08W | TWN 423 | ZNW-4WI | LC 252 SET 2 | HW 3.0 | PL 25 | ||||
| A25 MWLNR-08W-AD | TWN 423 | ZNW-4WI | LC 252 SET 2 | HW 3.0 | PL 25 | ||||
| A32S MWLNR/L-08W | TWN 423 | ZNW-4WI | LC 252 SET 1 | HW 3.0 | PL 32 | ||||
| A40T MWLNR/L-08W | IWSN 433 | IWSN 433M(b) | ZNW 4W | LC 252 SET 1 | HW 3.0 | PL 40 | |||
| S25T MWLNR/L-08W | TWN 423 | ZNW-4WI | LC 252 SET 2 | HW 3.0 | |||||
| S32U MWLNR/L-08W | TWN 423 | ZNW-4WI | LC 252 SET 1 | HW 3.0 | |||||
| S40V MWLNR/L-08W | IWSN 433 | IWSN 433M(b) | ZNW 4W | LC 252 SET 1 | HW 3.0 | ||||
| S50V MWLNL-13W | IWSN 635 | ZNW 6W | LC 253 | SPR 17-362 | WA M8 | HW 4P | |||
| S50V MWLNR-13W | IWSN 635 | ZNW 6W | LC 253 | SPR 17-362 | WA M8 | HW 4P |
(a) Use IWSN 3-2W optional seat for WNMG 0604.. inserts (b) Use IWSN 433M optional seat for WNMG 0804..-TNM inserts
