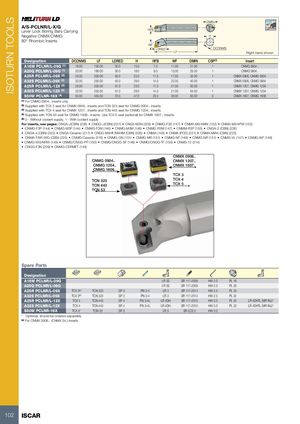

Каталог Iscar токарные державки ISO 2022 - страница 104

ISOTURN TOOLS
DMIN
95º
A/S-PCLNR/L-X/G
HFB
Lever Lock Boring Bars Carrying
Negative CNMX/CNMG H
80° Rhombic Inserts
WF
LDRED DCONMS
LF Right-hand shown
Designation DCONMS LF LDRED H HFB WF DMIN CSP(5) Insert
A16M PCLNR/L-09G (1) 16.00 150.00 30.0 15.0 7.5 11.00 21.00 1 CNMG 0904..
A20Q PCLNR/L-09G (1) 20.00 180.00 30.0 18.0 9.0 13.00 25.00 1 CNMG 0904..
A25R PCLNR/L-09X (2) 25.00 200.00 35.0 23.0 11.5 17.00 32.00 1 CNMX 0906, CNMG 0904
A32S PCLNR/L-09X (2) 32.00 250.00 40.0 29.0 14.5 22.00 40.00 1 CNMX 0906, CNMG 0904
A25R PCLNR/L-12X (3) 25.00 200.00 51.0 23.0 11.5 21.00 50.00 1 CNMX 1207, CNMG 1204
A32S PCLNR/L-12X (3) 32.00 250.00 51.0 29.0 14.5 21.00 54.00 1 CNMX 1207, CNMG 1204
S50W PCLNR-16X (4) 50.00 450.00 70.0 47.0 23.5 35.00 63.00 0 CNMX 1607, CNMG 1606
(1) For CNMG 0904.. inserts only
(2) Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts.
(3) Supplied with TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts.
(4) Supplied with TCN 53 seat for CNMG 1606.. inserts. Use TCX 5 seat (optional) for CNMX 1607.. inserts.
(5) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: CNGA-J(CBN) (226) • CNGG-J(CBN) (227) • CNGX-M3N (209) • CNMG-F3S (147) • CNMX-M3/4MW (152) • CNMX-M3/4PW (152)
• CNMG-F3P (144) • CNMG-M3P (144) • CNMG-F3M (146) • CNMG-M3M (146) • CNMG-R3M (147) • CNMM-R3P (153) • CNGA-2 (CBN) (226)
• CNGA-4 (CBN) (225) • CNGA-Ceramic (217) • CNGG-M4HF/M4HM (CBN) (226) • CNMA (149) • CNMA (PCD) (221) • CNMA-MW4 (CBN) (225)
• CNMA-T/M1/WG (CBN) (225) • CNMG-Ceramic (216) • CNMG-GN (151) • CNMG-MR (151) • CNMG-NF (148) • CNMG-NR (151) • CNMG-VL (147) • CNMG-WF (148)
• CNMG-WG/NRW (149) • CNMG/CNGG-PP (150) • CNMG/CNGG-SF (148) • CNMG/CNGG-TF (150) • CNMS-12 (214)
• CNGG-F3N (209) • CNMG-CERMET (145)
CNMX 0906..
CNMG 0904.. CNMX 1207..
CNMG 1204.. CNMX 1607..
CNMG 1606..
TCX 3
TCN 323 TCX 4
TCN 443 TCX 5
TCN 53


Spare Parts
Designation
A16M PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 16
A20Q PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 20
A25R PCLNR/L-09X TCX 3(a) TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 25
A32S PCLNR/L-09X TCX 3(a) TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 32
A25R PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 25 LR 4DHTL (MR INJ)*
A32S PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 32 LR 4DHTL (MR INJ)*
S50W PCLNR-16X TCX 5* TCN 53 SP 5 LR 5 SR LCS 5 HW 3.0
* Optional, should be ordered separately
(a) For CNMX 0906.. (CNMX 34.) inserts
