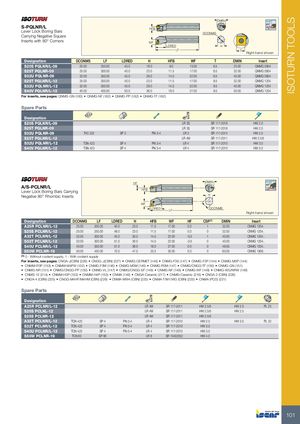

| DMIN | ||||||||
| S-PQLNR/L | HFB | 95º | ||||||
| Lever Lock Boring Bars Carrying Negative Square Inserts with 80° Corners | WF LF LDRED | D | H CONMS | T Rig | ht-hand shown | |||
| Designation | DCONMS | LF | LDRED | H HFB | WF | T | DMIN | Insert |
| S20S PQLNR/L-09 | 20.00 | 250.00 | 40.0 | 18.0 9.0 | 13.00 | 6.5 | 25.00 | QNMG 0904 |
| S25T PQLNR-09 | 25.00 | 300.00 | 40.0 | 23.0 11.5 | 17.00 | 6.5 | 32.00 | QNMG 0904 |
| S32U PQLNR-09 | 32.00 | 350.00 | 45.0 | 29.0 14.5 | 22.00 | 6.5 | 40.00 | QNMG 0904 |
| S25T PQLNR/L-12 | 25.00 | 300.00 | 40.0 | 23.0 11.5 | 17.00 | 8.5 | 32.00 | QNMG 1204 |
| S32U PQLNR/L-12 | 32.00 | 350.00 | 45.0 | 29.0 14.5 | 22.00 | 8.5 | 40.00 | QNMG 1204 |
| S40V PQLNR/L-12 | 40.00 | 400.00 | 50.0 | 36.0 18.0 | 27.00 | 8.5 | 50.00 | QNMG 1204 |
For inserts, see pages: QNMG-GN (183) QNMG-NF (182) QNMG-PP (182) QNMG-TF (182)
Spare Parts
| Designation | ||||||
| S20S PQLNR/L-09 | LR 3S | SR 117-2016 | HW 2.0 | |||
| S25T PQLNR-09 | LR 3S | SR 117-2016 | HW 2.0 | |||
| S32U PQLNR-09 | TXC 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | HW 2.5 |
| S25T PQLNR/L-12 | LR 4M | SR 117-2011 | HW 2.5/5 | |||
| S32U PQLNR/L-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| S40V PQLNR/L-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| A/S-PCLNR/L Lever Lock Boring Bars C Negative 80° Rhombic Ins | arrying erts | HF | LDRED WF HFB | LF | H DCON DMIN | MS | Right-hand shown 95º | |||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | HF | CSP(1) | DMIN | Insert |
| A25R PCLNR/L-12 | 25.00 | 200.00 | 40.0 | 23.0 | 11.5 | 17.00 | 0.0 | 1 | 32.00 | CNMG 1204.. |
| S25S PCLNR/L-12 | 25.00 | 250.00 | 48.0 | 23.0 | 11.5 | 17.00 | 0.0 | 0 | 32.00 | CNMG 1204.. |
| A32T PCLNR/L-12 | 32.00 | 300.00 | 45.0 | 30.0 | 14.5 | 22.00 | -0.5 | 1 | 40.00 | CNMG 1204.. |
| S32T PCLNR/L-12 | 32.00 | 300.00 | 51.0 | 30.0 | 14.5 | 22.00 | -0.5 | 0 | 40.00 | CNMG 1204.. |
| S40U PCLNR/L-12 | 40.00 | 350.00 | 51.0 | 36.0 | 18.0 | 27.00 | 0.0 | 0 | 49.00 | CNMG 1204.. |
| S50W PCLNR-19 | 50.00 | 450.00 | 70.0 | 47.0 | 23.5 | 35.00 | 0.0 | 0 | 63.00 | CNMG 1906.. |
(1) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: CNGA-J(CBN) (226) CNGG-J(CBN) (227) CNMG-CERMET (145) CNMG-F3S (147) CNMG-F3P (144) CNMG-M3P (144)
- CNMM-R3P (153)
- CNMM-M4PW (152)
- CNMG-F3M (146)
- CNMG-M3M (146)
- CNMG-R3M (147)
- CNMG/CNGG-TF (150)
- CNMG-GN (151)
- CNMG-NR (151)
- CNMG/CNGG-PP (150)
- CNMG-VL (147)
- CNMG/CNGG-SF (148)
- CNMG-NF (148)
- CNMG-WF (148)
- CNMG-WG/NRW (149)
- CNMS-12 (214)
- CNMM-H3P (153)
- CNMM-H4P (153)
- CNMA (149)
- CNGA-Ceramic (217)
- CNMG-Ceramic (216)
- CNGA-2 (CBN) (226)
- CNGA-4 (CBN) (225)
- CNGG-M4HF/M4HM (CBN) (226)
- CNMA-MW4 (CBN) (225)
- CNMA-T/M1/WG (CBN) (225)
- CNMA (PCD) (221)
Spare Parts
| Designation | ||||||||
| A25R PCLNR/L-12 | LR 4M | SR 117-2011 | HW 2.5/5 | HW 2.0 | PL 25 | |||
| S25S PCLNL-12 | LR 4M | SR 117-2011 | HW 2.5/5 | HW 2.5 | ||||
| S25S PCLNR-12 | LR 4M | SR 117-2011 | HW 2.5/5 | |||||
| A32T PCLNR/L-12 | TCN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 2.0 | HW 3.0 | PL 32 |
| S32T PCLNR/L-12 | TCN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 | ||
| S40U PCLNR/L-12 | TCN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 | ||
| S50W PCLNR-19 | TCN 63 | SP 66 | LR 6 | SR 10402352 | HW 4.0 |
