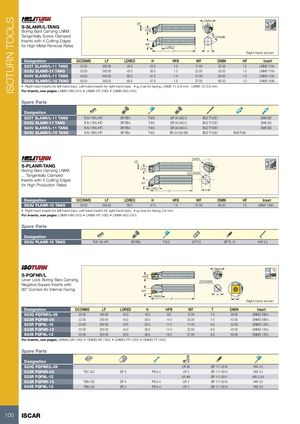

Каталог Iscar токарные державки ISO 2022 - страница 102
Навигация
Каталог Iscar инструмент для мелкоразмерной обработки
Каталог Iscar дисковые фрезы и фрезерные пластины 2022
Каталог Iscar решения для глубокого сверления
Каталог Iscar торцевые фрезы 2022
Новые режущие инструменты Iscar 2026
Каталог Iscar инструмент для обработки отверстий
| S-SLANR/L-TANG Boring Bars Carrying LNMX Tangentially Screw Clamped Inserts with 4 Cutting Edges for High Metal Removal Rates | WF LF LDRED HFB HF | H DCONMS DMIN | Right-hand shown 93º | ||||
| Designation | DCONMS | LF | LDRED | H HFB | WF | DMIN | HF Insert |
| S25T SLANR/L-11 TANG | 25.00 | 300.00 | 40.0 | 23.0 1.0 | 17.00 | 53.00 | 1.0 LNMX 1104.. |
| S32U SLANR-11 TANG | 32.00 | 350.00 | 45.0 | 30.0 1.0 | 22.00 | 53.00 | 1.0 LNMX 1104.. |
| S40V SLANR/L-11 TANG | 40.00 | 400.00 | 60.0 | 37.0 1.5 | 27.00 | 53.00 | 1.5 LNMX 1104.. |
| S50U SLANR/L-15 TANG | 50.00 | 350.00 | 60.0 | 47.0 1.5 | 37.00 | 85.00 | 1.5 LNMX 1506.. |
- Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars.
- a max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm.
p
For inserts, see pages: LNMX-HM (181) LNMX-HT (180) LNMX-WG (181)
Spare Parts
| Designation | |||||||
| S25T SLANR/L-11 TANG | TLN 11R/L-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | SW6-SD | |
| S32U SLANR-11 TANG | TLN 11R/L-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | SW6-SD | |
| S40V SLANR/L-11 TANG | TLN 11R/L-HTI | SR RS4 | T-6/5 | SR 34-550-C | BLD T10/S7 | SW6-SD | |
| S50U SLANR/L-15 TANG | TLN 15R/L-HTI | SR RS4 | T-6/5 | SR 34-535-SN | BLD T15/S7 | SW6-T-SH |
DMIN HF
S-PLANR-TANG
93º Boring Bars Carrying LNMX HFB ... Tangentially Clamped DCONMS
Inserts with 4 Cutting Edges
for High Production Rates WF LDRED H LF
| Designation | DCONMS | LF | LDRED | H | HFB | WF | DMIN | HF | Insert | |
| S50U PLANR-15 TANG | 50.00 | 350.00 | 60.0 | 47.0 | 1.5 | 37.00 | 85.00 | 1.5 | LNMX 1506... |
- Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars.
- a max for facing 3.8 mm.
p
For inserts, see pages: LNMX-HM (181) LNMX-HT (180) LNMX-WG (181)
Spare Parts
Designation
S50U PLANR-15 TANG TLN 15L-HTI SR RS4 T-6/5 LR T15 SR TL-15 HW 3.5
| S-PQFNR/L Lever Lock Boring Bars Ca Negative Square Inserts wi 80° Corners for Internal Fa | rrying th cing | WF HFB | LDRE | D LF | DC | H ONMS DMIN | T | Right-hand shown 95º | ||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | T | DMIN | Insert | |
| S20Q PQFNR/L-09 | 20.00 | 180.00 | 40.0 | 18.0 | 9.0 | 13.00 | 7.5 | 28.00 | QNMG 0904... | |
| S32R PQFNR-09 | 32.00 | 200.00 | 45.0 | 29.0 | 14.5 | 22.00 | 7.5 | 40.00 | QNMG 0904... | |
| S25R PQFNL-12 | 25.00 | 200.00 | 40.0 | 23.0 | 11.5 | 17.00 | 9.0 | 32.00 | QNMG 1204... | |
| S32R PQFNR-12 | 32.00 | 200.00 | 45.0 | 29.0 | 14.5 | 22.00 | 9.0 | 40.00 | QNMG 1204... | |
| S40S PQFNL-12 | 40.00 | 250.00 | 50.0 | 36.0 | 18.0 | 27.00 | 9.0 | 50.00 | QNMG 1204... |
For inserts, see pages: QNMG-GN (183) QNMG-NF (182) QNMG-PP (182) QNMG-TF (182)
Spare Parts
| Designation | ||||||
| S20Q PQFNR/L-09 | LR 3S | SR 117-2016 | HW 2.0 | |||
| S32R PQFNR-09 | TXC 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | HW 2.5 |
| S25R PQFNL-12 | LR 4M | SR 117-2011 | HW 2.5/5 | |||
| S32R PQFNR-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
| S40S PQFNL-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 |
