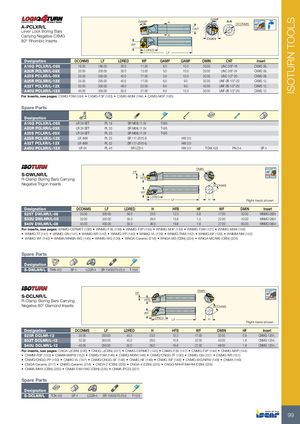

| A-PCLXR/L Lever Lock Boring Bars Carrying Negative CXMG 80° Rhombic Inserts | GAMP LDRED WF | A A LF | CN | T DMIN GAMF | DCONMS A-A | 95º | |||
| Designation | DCONMS | LF | LDRED WF | GAMP | GAMF | DMIN | CNT | Insert | |
| A16Q PCLXR/L-09X | 16.00 | 180.00 | 30.0 11.00 | 8.0 | 10.0 | 20.00 | UNC 3/8"-16 | CXMG 09.. | |
| A20R PCLXR/L-09X | 20.00 | 200.00 | 30.0 13.00 | 5.0 | 10.0 | 25.00 | UNC 3/8"-24 | CXMG 09.. | |
| A25S PCLXR/L-09X | 25.00 | 250.00 | 40.0 17.00 | 5.0 | 10.0 | 32.00 | UNC 1/2"-20 | CXMG 09.. | |
| A25R PCLXR/L-12X | 25.00 | 200.00 | 40.0 17.00 | 6.0 | 9.0 | 32.00 | UNF-2B 1/2"-20 | CXMG 12.. | |
| A32T PCLXR/L-12X | 32.00 | 300.00 | 48.0 22.00 | 6.0 | 9.0 | 40.00 | UNF-2B 1/2"-20 | CXMG 12.. | |
| A40U PCLXR/L-12X | 40.00 | 350.00 | 50.0 27.00 | 6.0 | 10.0 | 50.00 | UNF-2B 1/2"-20 | CXMG 12.. |
For inserts, see pages: CXMG-F3M (184) CXMG-F3P (183) CXMG-M3M (184) CXMG-M3P (183)
Spare Parts
| Designation | ||||||||
| A16Q PCLXR/L-09X | LR 3X SET | PL 16 | SR M6XL11.5V | T-8/5 | ||||
| A20R PCLXR/L-09X | LR 3X SET | PL 20 | SR M6XL11.5V | T-8/5 | ||||
| A25S PCLXR/L-09X | LR 3X SET | PL 25 | SR M6XL11.5V | T-8/5 | ||||
| A25R PCLXR/L-12X | LR 4MX | PL 25 | SR 117-2010-S | HW 3.0 | ||||
| A32T PCLXR/L-12X | LR 4MX | PL 32 | SR 117-2010-S | HW 3.0 | ||||
| A40U PCLXR/L-12X | LR 4X | PL 40 | SR LCS 5 | HW 3.0 | TCNX 423 | PN 3-4 | SP 4 |
| S-DWLNR/L R-Clamp Boring Bars Carrying Negative Trigon Inserts | HFB HF WF LDRED | LF | H DMIN DCONMS | Right | -hand shown 95º | ||
| Designation | DCONMS | LF | LDRED H | HFB | HF WF | DMIN | Insert |
| S25T DWLNR/L-08 | 25.00 | 300.00 | 50.0 23.0 | 12.3 | 0.8 17.00 | 32.00 | WNMG 0804 |
| S32U DWLNR/L-08 | 32.00 | 350.00 | 55.0 29.0 | 15.8 | 1.3 22.00 | 40.00 | WNMG 0804 |
| S40V DWLNR/L-08 | 40.00 | 400.00 | 55.0 36.0 | 19.8 | 1.8 27.00 | 60.00 | WNMG 0804 |
For inserts, see pages: WNMG-CERMET (136) WNMG-F3S (138) WNMG-F3P (135) WNMG-M3P (135) WNMG-F3M (137) WNMG-M3M (138)
- WNMG-TF (141)
- WNMG-GN (141)
- WNMG-NR (142)
- WNMG-PP (140)
- WNMG-VL (139)
- WNMG-TNM (142)
- WNMG-NF (139)
- WNMM-NM (142)
- WNMG-WF (140)
- WNMA/WNMA-WG (143)
- WNMG-WG (139)
- WNGA-Ceramic (216)
- WNGA-M3 (CBN) (224)
- WNGA-MC/M6 (CBN) (224)
Spare Parts
Designation
S-DWLNR/L TWN 423 SP 4 LCGR-4 SR 10400270-25.5 T-15/5
| S-DCLNR/L R-Clamp Boring Bars Carrying Negative 80° Diamond Inserts | HF | LDRED WF HFB | LF | DMI | H DCONMS N | Right-hand shown 95º | ||
| Designation | DCONMS | LF | LDRED | H | HFB | WF | DMIN | HF Insert |
| S25R DCLNR-12 | 25.00 | 200.00 | 45.0 | 23.0 | 12.3 | 17.00 | 32.00 | 0.8 CNMG 1204.. |
| S32T DCLNR/L-12 | 32.00 | 300.00 | 45.0 | 28.0 | 15.8 | 22.00 | 40.00 | 1.8 CNMG 1204.. |
| S40U DCLNR/L-12 | 40.00 | 350.00 | 55.0 | 36.0 | 19.8 | 27.00 | 48.00 | 1.8 CNMG 1204.. |
For inserts, see pages: CNGA-J(CBN) (226) CNGG-J(CBN) (227) CNMG-CERMET (145) CNMG-F3S (147) CNMG-F3P (144) CNMG-M3P (144)
- CNMM-R3P (153)
- CNMM-M4PW (152)
- CNMG-F3M (146)
- CNMG-M3M (146)
- CNMG/CNGG-TF (150)
- CNMG-GN (151)
- CNMG-NR (151)
- CNMG/CNGG-PP (150)
- CNMG-VL (147)
- CNMG/CNGG-SF (148)
- CNMG-NF (148)
- CNMG-WF (148)
- CNMG-WG/NRW (149)
- CNMA (149)
- CNGA-Ceramic (217)
- CNMG-Ceramic (216)
- CNGA-2 (CBN) (226)
- CNGA-4 (CBN) (225)
- CNGG-M4HF/M4HM (CBN) (226)
- CNMA-MW4 (CBN) (225)
- CNMA-T/M1/WG (CBN) (225)
- CNMA (PCD) (221)
Spare Parts
S-DCLNR/L TCN 423 SP 4 LCGR-4 SR 10400270-25.5 T-15/5
