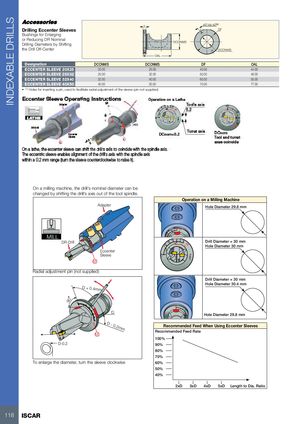

5 ø3 typ.x2 (1) Drilling Eccenter Sleeves DF
Bushings for Enlarging
or Reducing DR Nominal
Drilling Diameters by Shifting DCONMS the Drill Off-Center DCONWS OAL
| Designation | DCONWS | DCONMS | DF | OAL |
| ECCENTER SLEEVE 20X25 | 20.00 | 25.00 | 40.00 | 44.00 |
| ECCENTER SLEEVE 25X32 | 25.00 | 32.00 | 50.00 | 46.00 |
| ECCENTER SLEEVE 32X40 | 32.00 | 40.00 | 65.00 | 55.00 |
| ECCENTER SLEEVE 40X50 | 40.00 | 50.00 | 75.00 | 77.00 |
- (1) Holes for inserting a pin, used to facilitate radial adjustment of the sleeve (pin not supplied)
On a milling machine, the drill’s nominal diameter can be
changed by shifting the drill’s axis out of the tool spindle.
Operation on a Milling Machine
Adapter Hole Diameter 29.8 mm
-0.2 M 0 L MILL +0.2 +0.2 +0.4
| DR-Drill | 0 | +4 | 0 -4 -8 | Drill Diameter = 30 mm | |||
| +0.2 | |||||||
| +8 | +8 | M | |||||
| +0 | +0.4 | L | Hole Diameter 30 mm |
.2 +12 M Eccenter +4 Sleeve X.001”
M
Radial adjustment pin (not supplied)
Drill Diameter = 30 mm Hole Diameter 30.4 mm
D + 0.4mm
90
+0.4
0 +0.2 +0.4
D 0 +0.2
| +0.2 0 | +0.2 | Hole Diameter 29.8 mm | |
| -0.2 | |||
| L | D - 0.2mm | L M |
Recommended Feed When Using Eccenter Sleeves Recommended Feed Rate M 100%
D-0.2 90%
80%
D+0.4 70%
To enlarge the diameter, turn the sleeve clockwise 60%
50% 40%
2xD 3xD 4xD 5xD Length to Dia. Ratio
