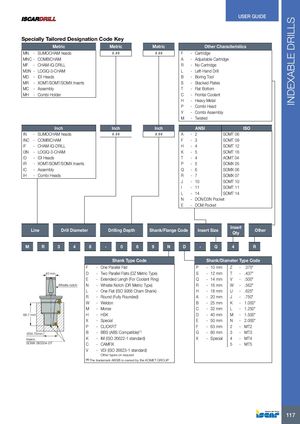

Specially Tailored Designation Code Key
| Metric Metric Metric | Other Characteristics | |||
| MN - SUMOCHAM heads | #.## #.## F | - Cartridge | ||
| MNC - COMBICHAM | A | - Adjustable Cartridge | ||
| MF - CHAM-IQ-DRILL | R | - No Cartridge | ||
| M3N - LOGIQ-3-CHAM | L | - Left-Hand Drill | ||
| MD - IDI Heads | B | - Boring Tool | ||
| MR - XOMT/SOMT/SOMX Inserts | S | - Stacked Plates | ||
| MC - Assembly | T | - Flat Bottom | ||
| MH - Combi Holder | C | - Frontal Coolant | ||
| H | - Heavy Metal | |||
| P | - Combi Head | |||
| Y | - Combi Assembly | |||
| M | - Twisted | |||
| Inch Inch Inch | ISO ANSI | |||
| IN | - SUMOCHAM heads | #.## #.## A | - 2 | SOMT 06 |
| INC - COMBICHAM | F | - 3 | SOMT 09 | |
| IF | - CHAM-IQ-DRILL | H | - 4 | SOMT 12 |
| I3N - LOGIQ-3-CHAM | K | - 5 | SOMT 16 | |
| ID | - IDI Heads | T | - 4 | AOMT 04 |
| IR | - XOMT/SOMT/SOMX Inserts | P | - 5 | SOMX 05 |
| IC | - Assembly | Q | - 6 | SOMX 06 |
| IH | - Combi Heads | R | - 7 | SOMX 07 |
| J | - 10 | SOMT 10 | ||
| I | - 11 | SOMT 11 | ||
| L | - 14 | SOMT 14 |
N - DCN/D3N Pocket E - DCM Pocket
Insert
| Line | Drill Diameter | Drilling Depth | Shank/Flange Code | Insert Size | Other | |
| Qty |
| M | 4 3 R 8 | D N 9 6 0 - - | Q 4 | R | ||
| Shank Type Code | Shank/Diameter Type Code | |||||
| F | - One Parallel Flat | P | - 10 mm | Z | - .375" | |
| 40 mm D | - Two Parallel Flats (DZ Metric Type) | S | - 12 mm | T | - .437" | |
| E | - Extended Lengh (For Coolant Ring) | Q | - 14 mm | V | - .500" | |
| Whistle notch N | - Whistle Notch (DR Metric Type) | R | - 16 mm | W | - .562" | |
| L | - One Flat (ISO 9266 Cham Shank) | H | - 18 mm | U | - .625" | |
| R | - Round (Fully Rounded) | A | - 20 mm | J | - .750" | |
| W | - Weldon | B | - 25 mm | K | - 1.000" | |
| M | - Morse | C | - 32 mm | L | - 1.250" | |
| 68.7 mm | H | - HSK | D | - 40 mm | M | - 1.500" |
| X | - Special | E | - 50 mm | N | - 2.000" | |
| P | - CLICKFIT | F | - 63 mm | 2 | - MT2 | |
| B | - BBS (ABS Compatible)(1) | G | - 80 mm | 3 | - MT3 | |
| Ø34.75mm | ||||||
| Insers- | K | - IM (ISO 26622-1 standard) | X | - Special | 4 | - MT4 |
| SOMX 060304-DT | C | - CAMFIX | 5 | - MT5 |
V - VDI (ISO 26623-1 standard) Other types on request (1) The trademark ABS® is owned by the KOMET GROUP
