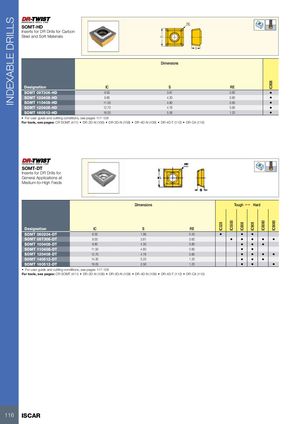

INDEXABLE DRILLS IC328 IC5500 IC808 IC908 IC8080 IC808 IC9080 RE SOMT-HD Inserts for DR Drills for Carbon Steel and Soft Materials IC S Dimensions Designation IC S RE SOMT 09T306-HD 9.00 3.81 0.60 • SOMT 100408-HD 9.80 4.30 0.80 • SOMT 110408-HD 11.50 4.80 0.80 • SOMT 120408-HD 12.70 4.76 0.80 • SOMT 160512-HD 16.00 5.56 1.20 • • For user guide and cutting conditions, see pages 117-128 For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113) SOMT-DT Inserts for DR Drills for General Applications at Medium-to-High Feeds Dimensions Tough 1  Hard Designation IC S RE SOMT 060204-DT 6.00 1.96 0.40 • • • SOMT 09T306-DT 9.00 3.81 0.60 • • • • • SOMT 100408-DT 9.80 4.30 0.80 • • • SOMT 110408-DT 11.50 4.80 0.80 • • SOMT 120408-DT 12.70 4.76 0.80 • • • • SOMT 140512-DT 14.30 5.20 1.20 • • • SOMT 160512-DT 16.00 5.56 1.20 • • • • For user guide and cutting conditions, see pages 117-128 For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113) 116 ISCAR
