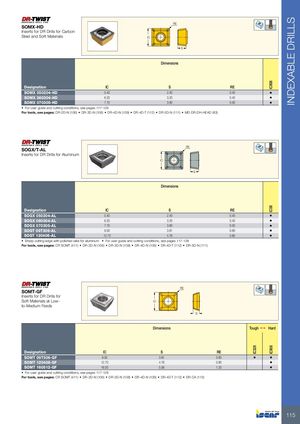

IC328 IC808IC08IC908 INDEXABLE DRILLS RE SOMX-HD Inserts for DR Drills for Carbon Steel and Soft Materials IC S Dimensions Designation IC S RE SOMX 050204-HD 5.40 2.40 0.40 • SOMX 060304-HD 6.20 3.20 0.40 • SOMX 070305-HD 7.70 3.60 0.50 • • For user guide and cutting conditions, see pages 117-128 For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83) RE SOGX/T-AL Inserts for DR Drills for Aluminum IC S Dimensions Designation IC S RE SOGX 050204-AL 5.40 2.40 0.40 • SOGX 060304-AL 6.20 3.20 0.40 • SOGX 070305-AL 7.70 3.60 0.50 • SOGT 09T306-AL 9.00 3.81 0.60 • SOGT 120408-AL 12.70 4.76 0.80 • • Sharp cutting edge with polished rake for aluminum • For user guide and cutting conditions, see pages 117-128 For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) RE SOMT-GF Inserts for DR Drills for Soft Materials at Low- IC to-Medium Feeds S Dimensions Tough 1  Hard Designation IC S RE SOMT 09T306-GF 9.00 3.81 0.60 • • SOMT 120408-GF 12.70 4.76 0.80 • SOMT 160512-GF 16.00 5.56 1.20 • • For user guide and cutting conditions, see pages 117-128 For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113) 115
