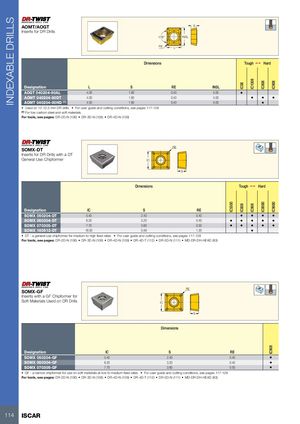

INDEXABLE DRILLS
AOMT/AOGT S
Inserts for DR Drills
178° INSL

RE L


Dimensions Tough 1 Hard


IC1008
IC808
IC908
IC08
Designation L S RE INSL
AOGT 040204-90AL 4.00 1.60 0.40 5.00 •
AOMT 040204-90DT 4.00 1.60 0.40 5.00 • • •
AOMT 040204-90HD (1) 4.00 1.60 0.40 5.00 •
• Used on 12-13.5 mm DR drills • For user guide and cutting conditions, see pages 117-128
(1) For low carbon steel and soft materials.
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109)


RE
SOMX-DT
Inserts for DR Drills with a DT
General Use Chipformer IC

S

Dimensions Tough 1 Hard


IC5500


IC8080
IC9080
IC808
IC908
Designation IC S RE
SOMX 050204-DT 5.40 2.40 0.40 • • • •
SOMX 060304-DT 6.20 3.20 0.40 • • • • •
SOMX 070305-DT 7.70 3.60 0.50 • • • • •
SOMX 160512-DT 16.00 5.56 1.20 •
• DT - a general use chipformer for medium to high feed rates • For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)


RE
SOMX-GF
Inserts with a GF Chipformer for
Soft Materials Used on DR Drills IC

S

Dimensions
IC908


Designation IC S RE
SOMX 050204-GF 5.40 2.40 0.40 •
SOMX 060304-GF 6.20 3.20 0.40 •
SOMX 070305-GF 7.70 3.60 0.50 •
• GF - a narrow chipformer for use on soft materials at low to medium feed rates • For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)


114 ISCAR
