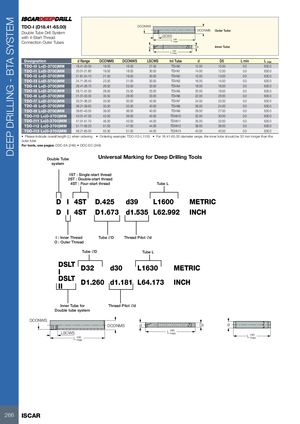

| TDO-I (D18.41-65.00) Double Tube Drill System with 4-Start Thread Connection Outer Tubes | DC | d ONWS | L LSCWS L min max min max | D5 DCONM | S Outer Tube Inner Tube | ||||
| Designation | d Range | DCONMS | DCONWS | LSCWS | Int Tube | d | D5 | L min | Lmax |
| TDO-I0 L=(0-3700)MM | 18.41-20.00 | 18.00 | 16.00 | 27.50 | TDI-N0 | 12.00 | 10.00 | 0.0 | 630.0 |
| TDO-I1 L=(0-3700)MM | 20.01-21.80 | 19.50 | 18.00 | 30.00 | TDI-N1 | 14.00 | 12.00 | 0.0 | 630.0 |
| TDO-I2 L=(0-3700)MM | 21.81-24.10 | 21.50 | 19.50 | 30.00 | TDI-N2 | 15.00 | 13.00 | 0.0 | 630.0 |
| TDO-I3 L=(0-3700)MM | 24.11-26.40 | 23.50 | 21.00 | 30.00 | TDI-N3 | 16.00 | 14.00 | 0.0 | 630.0 |
| TDO-I4 L=(0-3700)MM | 26.41-28.70 | 26.00 | 23.50 | 33.00 | TDI-N4 | 18.00 | 16.00 | 0.0 | 630.0 |
| TDO-I5 L=(0-3700)MM | 28.71-31.00 | 28.00 | 25.50 | 33.00 | TDI-N5 | 20.00 | 18.00 | 0.0 | 630.0 |
| TDO-I6 L=(0-3700)MM | 31.01-33.30 | 30.50 | 28.00 | 33.00 | TDI-N6 | 22.00 | 20.00 | 0.0 | 630.0 |
| TDO-I7 L=(0-3700)MM | 33.31-36.20 | 33.00 | 30.00 | 40.00 | TDI-N7 | 24.00 | 22.00 | 0.0 | 630.0 |
| TDO-I8 L=(0-3700)MM | 36.21-39.60 | 35.50 | 33.00 | 40.00 | TDI-N8 | 26.00 | 24.00 | 0.0 | 630.0 |
| TDO-I9 L=(0-3700)MM | 39.61-43.00 | 39.00 | 36.00 | 40.00 | TDI-N9 | 29.00 | 27.00 | 0.0 | 630.0 |
| TDO-I10 L=(0-3700)MM | 43.01-47.00 | 42.50 | 39.00 | 40.00 | TDI-N10 | 32.00 | 30.00 | 0.0 | 630.0 |
| TDO-I11 L=(0-3700)MM | 47.01-51.70 | 46.50 | 43.00 | 44.00 | TDI-N11 | 35.00 | 32.00 | 0.0 | 630.0 |
| TDO-I12 L=(0-3700)MM | 51.71-56.20 | 51.00 | 47.00 | 44.00 | TDI-N12 | 39.00 | 36.00 | 0.0 | 630.0 |
| TDO-I13 L=(0-3700)MM | 56.21-65.00 | 55.50 | 51.00 | 44.00 | TDI-N13 | 43.00 | 40.00 | 0.0 | 630.0 |
- Please indicate overall length (L) when ordering
- Ordering example: TDO-I13-L1100
- For 18.41-65.00 diameter range, the inner tube should be 30 mm longer than the
outer tube
For tools, see pages: DDC-EA (246) DDC-EC (249)
Universal Marking for Deep Drilling Tools
Double Tube system 1ST : Single-start thread 2ST : Double-start thread 4ST : Four-start thread Tube L
| D I 4ST | D.425 | d39 | L1600 | METRIC |
| D I 4ST | D1.673 d1.535 L62.992 | INCH |
| I : Inner Thread | Tube ØD | Thread Pilot Ød | ||
| O : Outer Thread | ||||
| Tube ØD | Tube L | |||
| DSLT |
D32 d30 L1630 METRIC
I DSLT D1.260 d1.181 L64.173 INCH II
Inner Tube for Thread Pilot Ød Double tube system
DCONWS
DCONMS d D5 d
LSCWS L min max L min L min max max
