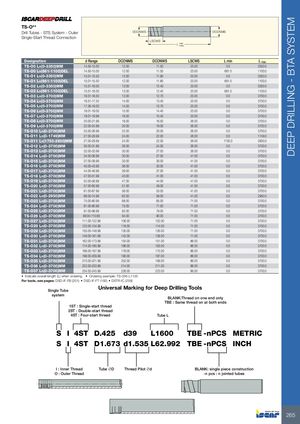

TS-O**
| DCONWS | DCONMS |
| LSCWS L min max |
Single-Start Thread Connection
| Designation | d Range | DCONMS | DCONWS | LSCWS | L min | Lmax |
| TS-O0 L=(0-3350)MM | 14.50-15.00 | 12.00 | 11.50 | 23.00 | 0.0 | 3350.0 |
| TS-O0 L=(661-1100)DEL | 14.50-15.00 | 12.00 | 11.50 | 23.00 | 661.0 | 1100.0 |
| TS-O1 L=(0-3350)MM | 15.01-15.50 | 12.00 | 11.80 | 23.00 | 0.0 | 3350.0 |
| TS-O1 L=(661-1100)DEL | 15.01-15.50 | 12.00 | 11.80 | 23.00 | 661.0 | 1100.0 |
| TS-O2 L=(0-3350)MM | 15.51-16.00 | 13.00 | 12.40 | 23.00 | 0.0 | 3350.0 |
| TS-O2 L=(661-1100)DEL | 15.51-16.00 | 13.00 | 12.40 | 23.00 | 661.0 | 1100.0 |
| TS-O3 L=(0-3700)MM | 16.01-16.50 | 13.00 | 12.70 | 23.00 | 0.0 | 3700.0 |
| TS-O4 L=(0-3700)MM | 16.51-17.25 | 14.00 | 13.40 | 23.00 | 0.0 | 3700.0 |
| TS-O5 L=(0-3700)MM | 17.26-18.00 | 14.00 | 13.70 | 23.00 | 0.0 | 3700.0 |
| TS-O6 L=(0-3700)MM | 18.01-19.00 | 15.00 | 14.40 | 23.00 | 0.0 | 3700.0 |
| TS-O7 L=(0-3700)MM | 19.01-19.99 | 16.50 | 15.40 | 23.00 | 0.0 | 3700.0 |
| TS-O8 L=(0-3700)MM | 20.00-21.99 | 18.00 | 16.50 | 26.00 | 0.0 | 3700.0 |
| TS-O9 L=(0-3700)MM | 22.00-24.99 | 20.00 | 19.00 | 26.00 | 0.0 | 3700.0 |
| TS-O10 L=(0-3700)MM | 25.00-26.99 | 22.00 | 20.00 | 26.00 | 0.0 | 3700.0 |
| TS-O11 L=(0-1749)MM | 27.00-29.99 | 24.00 | 22.00 | 26.00 | 0.0 | 1749.0 |
| TS-O11 L=(1750-2600)MM | 27.00-29.99 | 24.00 | 22.00 | 26.00 | 1750.0 | 2600.0 |
| TS-O12 L=(0-3700)MM | 30.00-31.99 | 26.00 | 24.00 | 26.00 | 0.0 | 3700.0 |
| TS-O13 L=(0-3700)MM | 32.00-33.99 | 30.00 | 27.00 | 26.00 | 0.0 | 3700.0 |
| TS-O14 L=(0-3700)MM | 34.00-36.99 | 30.00 | 27.00 | 41.00 | 0.0 | 3700.0 |
| TS-O15 L=(0-3700)MM | 37.00-39.99 | 33.00 | 30.00 | 41.00 | 0.0 | 3700.0 |
| TS-O16 L=(0-3700)MM | 40.00-43.99 | 36.00 | 33.00 | 41.00 | 0.0 | 3700.0 |
| TS-O17 L=(0-3700)MM | 44.00-46.99 | 39.00 | 37.00 | 41.00 | 0.0 | 3700.0 |
| TS-O18 L=(0-3700)MM | 47.00-51.99 | 43.00 | 41.00 | 41.00 | 0.0 | 3700.0 |
| TS-O19 L=(0-3700)MM | 52.00-56.99 | 47.00 | 44.00 | 41.00 | 0.0 | 3700.0 |
| TS-O20 L=(0-3700)MM | 57.00-60.99 | 51.00 | 49.00 | 41.00 | 0.0 | 3700.0 |
| TS-O21 L=(0-3700)MM | 61.00-67.99 | 56.00 | 53.00 | 41.00 | 0.0 | 3700.0 |
| TS-O22 L=(0-2950)MM | 68.00-74.99 | 62.00 | 59.00 | 41.00 | 0.0 | 2950.0 |
| TS-O23 L=(0-3700)MM | 75.00-80.99 | 68.00 | 65.00 | 71.00 | 0.0 | 3700.0 |
| TS-O24 L=(0-3700)MM | 81.00-90.99 | 75.00 | 71.00 | 71.00 | 0.0 | 3700.0 |
| TS-O25 L=(0-3700)MM | 91.00-98.99 | 82.00 | 79.00 | 71.00 | 0.0 | 3700.0 |
| TS-O26 L=(0-3700)MM | 99.00-110.99 | 94.00 | 90.00 | 71.00 | 0.0 | 3700.0 |
| TS-O27 L=(0-3700)MM | 111.00-122.99 | 106.00 | 102.00 | 71.00 | 0.0 | 3700.0 |
| TS-O28 L=(0-3700)MM | 123.00-134.99 | 118.00 | 114.00 | 71.00 | 0.0 | 3700.0 |
| TS-O29 L=(0-3700)MM | 135.00-148.99 | 130.00 | 126.00 | 71.00 | 0.0 | 3700.0 |
| TS-O30 L=(0-3700)MM | 149.00-161.99 | 142.00 | 139.00 | 71.00 | 0.0 | 3700.0 |
| TS-O31 L=(0-3700)MM | 162.00-173.99 | 154.00 | 151.00 | 86.00 | 0.0 | 3700.0 |
| TS-O32 L=(0-3700)MM | 174.00-185.99 | 166.00 | 163.00 | 86.00 | 0.0 | 3700.0 |
| TS-O33 L=(0-3700)MM | 186.00-197.99 | 178.00 | 175.00 | 86.00 | 0.0 | 3700.0 |
| TS-O34 L=(0-3700)MM | 198.00-209.99 | 190.00 | 187.00 | 86.00 | 0.0 | 3700.0 |
| TS-O35 L=(0-3700)MM | 210.00-221.99 | 202.00 | 199.00 | 86.00 | 0.0 | 3700.0 |
| TS-O36 L=(0-3700)MM | 222.00-233.99 | 214.00 | 211.00 | 86.00 | 0.0 | 3700.0 |
| TS-O37 L=(0-3700)MM | 234.00-245.99 | 226.00 | 223.00 | 86.00 | 0.0 | 3700.0 |
- Indicate overall length (L) when ordering.
- Ordering example: TS-036-L1100
For tools, see pages: DSD-IF-FB (201) DSD-IF-FT (192) DSTR-IC (258)
Universal Marking for Deep Drilling Tools
Single Tube system BLANK:Thread on one end only TBE : Same thread on at both ends 1ST : Single-start thread 2ST : Double-start thread 4ST : Four-start thread Tube L
S I 4ST D.425 d39 L1600 TBE -nPCS METRIC
S I 4ST D1.673 d1.535 L62.992 TBE -nPCS INCH
I : Inner Thread Tube ØD Thread Pilot Ød BLANK: single piece construction
O : Outer Thread -n pcs : n jointed tubes
