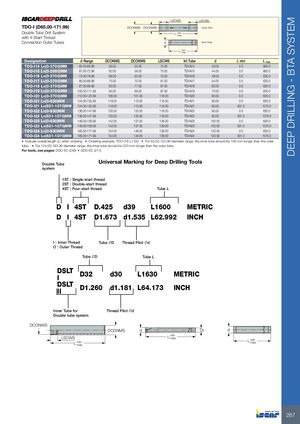

Каталог Iscar сверла ружейные и для глубокого сверления 2022 - страница 83
Навигация
Каталог Iscar новые продукты 2018
Каталог Iscar полирующие фрезы
Каталог Iscar инструмент для фрезерования
Каталог Iscar инструмент для нарезания резьбы
Каталог Iscar токарные державки ISO 2022
Фрезерные инструменты Iscar 2026
| LSCWS | LSCWS | |||||||
| TDO-I (D65.00-171.99) | DCO DCONMS | NWS | Outer Tube | |||||
| Double Tube Drill System | L min max | |||||||
| with 4-Start Thread | ||||||||
| Connection Outer Tubes | d | L min max | Inner Tube | |||||
| Designation | d Range | DCONMS | DCONWS | LSCWS | Int Tube | d | L min | Lmax |
| TDO-I14 L=(0-3700)MM | 65.00-66.99 | 56.00 | 52.00 | 75.00 | TDI-N14 | 40.00 | 0.0 | 660.0 |
| TDO-I15 L=(0-2950)MM | 67.00-72.99 | 62.00 | 58.00 | 75.00 | TDI-N15 | 44.00 | 0.0 | 660.0 |
| TDO-I16 L=(0-3700)MM | 73.00-79.99 | 68.00 | 63.00 | 75.00 | TDI-N16 | 48.00 | 0.0 | 630.0 |
| TDO-I17 L=(0-3700)MM | 80.00-86.99 | 75.00 | 70.00 | 97.00 | TDI-N17 | 54.00 | 0.0 | 630.0 |
| TDO-I18 L=(0-3700)MM | 87.00-99.99 | 82.00 | 77.00 | 97.00 | TDI-N18 | 60.00 | 0.0 | 630.0 |
| TDO-I19 L=(0-3700)MM | 100.00-111.99 | 94.00 | 89.00 | 97.00 | TDI-N19 | 70.00 | 0.0 | 630.0 |
| TDO-I20 L=(0-3700)MM | 112.00-123.99 | 106.00 | 101.00 | 118.00 | TDI-N20 | 80.00 | 0.0 | 630.0 |
| TDO-I21 L=(0-630)MM | 124.00-135.99 | 118.00 | 113.00 | 118.00 | TDI-N21 | 80.00 | 0.0 | 630.0 |
| TDO-I21 L=(631-1070)MM | 124.00-135.99 | 118.00 | 113.00 | 118.00 | TDI-N21 | 80.00 | 631.0 | 1070.0 |
| TDO-I22 L=(0-630)MM | 136.00-147.99 | 130.00 | 125.00 | 118.00 | TDI-N22 | 90.00 | 0.0 | 630.0 |
| TDO-I22 L=(631-1070)MM | 136.00-147.99 | 130.00 | 125.00 | 118.00 | TDI-N22 | 90.00 | 631.0 | 1070.0 |
| TDO-I23 L=(0-630)MM | 148.00-159.99 | 142.00 | 137.00 | 139.00 | TDI-N23 | 100.00 | 0.0 | 630.0 |
| TDO-I23 L=(631-1070)MM | 148.00-159.99 | 142.00 | 137.00 | 139.00 | TDI-N23 | 100.00 | 631.0 | 1070.0 |
| TDO-I24 L=(0-630)MM | 160.00-171.99 | 154.00 | 149.00 | 139.00 | TDI-N24 | 120.00 | 0.0 | 630.0 |
| TDO-I24 L=(631-1070)MM | 160.00-171.99 | 154.00 | 149.00 | 139.00 | TDI-N24 | 120.00 | 631.0 | 1070.0 |
- Indicate overall length (L) when ordering
- Ordering example: TDO-I18-L1150
- For 65.00-123.99 diameter range, the inner tube should be 190 mm longer than the outer
tube. For 124.00-183.99 diameter range, the inner tube should be 220 mm longer than the outer tube.
For tools, see pages: DDC-EC (249) DDD-EC (211)
Universal Marking for Deep Drilling Tools
Double Tube system 1ST : Single-start thread 2ST : Double-start thread 4ST : Four-start thread Tube L
D I 4ST D.425 d39 L1600 METRIC
D I 4ST D1.673 d1.535 L62.992 INCH
| I : Inner Thread | Tube ØD | Thread Pilot Ød | ||
| O : Outer Thread | ||||
| Tube ØD | Tube L | |||
| DSLT |
| I | D32 | d30 | L1630 | METRIC |
| DSLT | D1.260 d1.181 L64.173 | INCH |
II
Inner Tube for Thread Pilot Ød Double tube system
DCONWS
DCONMS d D5 d
LSCWS L min max L min L min max max
