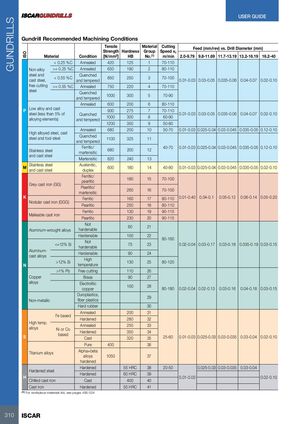

Gundrill Recommended Machining Conditions

O		Tensile Strength	Hardness	Material Group	Cutting Speed vc	Fe	ed(mm/re	v) vs. Drill D	iameter(m	m)
IS Material	Condition	[N/mm2]	HB	No.(1)	m/min	2.0-9.79	9.8-11.69	11.7-13.19	13.2-16.19	16.2-40
< 0.25 %C	Annealed	420	125	1	70-110
Non-alloy >= 0.25 %C	Annealed	650	190	2	80-110
steel and cast steel, < 0.55 %C	Quenched and tempered	850	250	3	70-100	0.01-0.03	0.03-0.05	0.035-0.06	0.04-0.07	0.02-0.10
free cutting steel >= 0.55 %C	Annealed	750	220	4	70-110
	Quenched and tempered	1000	300	5	70-90
P Low alloy and cast	Annealed	600 930	200 275	6 7	80-110 70-110
steel (less than 5% of alloying elements)	Quenched and tempered	1000	300	8	60-90	0.01-0.03	0.03-0.05	0.035-0.06	0.04-0.07	0.02-0.10
		1200	350	9	50-80
High alloyed steel, cast	Annealed	680	200	10	50-70	0.01-0.03	0.025-0.04	0.03-0.045	0.035-0.05	0.12-0.10
steel and tool steel	Quenched and tempered	1100	325	11
Stainless steel dttl	Ferritic/ martensitic	680	200	12	40-70	0.01-0.03	0.025-0.04	0.03-0.045	0.035-0.05	0.12-0.10
an cas see	Martensitic	820	240	13
M Stainless steel and cast steel	Austenitic, duplex	600	180	14	40-80	0.01-0.03	0.025-0.04	0.03-0.045	0.035-0.05	0.02-0.10
	Ferritic/ pearlitic		180	15	70-100
Grey cast iron (GG)	Pearlitic/		260	16	70-100
	martensitic
K	Ferritic		160	17	80-110	0.01-0.40	0.04-0.1	0.05-0.12	0.06-0.14	0.05-0.20
Nodular cast iron (GGG)	Pearlitic		250	18	80-110
	Ferritic		130	19	90-115
Malleable cast iron	Pearlitic		230	20	90-115
Aluminum-wrought alloys	Not hardenable		60	21
	Hardenable		100	22	80-160
	Not hardenable		75	23		0.02-0.04	0.03-0.17	0.03-0.18	0.035-0.19	0.03-0.15
Aluminum-	Hl			24
cast alloys	ardenabe		90
N >12% Si	High temperature		130	25	80-120
>1% Pb	Free cutting		110	26
Copper	Brass		90	27
alloys	Electrolitic copper		100	28	80-180	0.02-0.04	0.02-0.13	0.03-0.16	0.04-0.18	0.03-0.15
	Duroplastics,			29
Non-metallic	fiberplastics
	Hard rubber			30
Fe based	Annealed		200	31
	Hardened		280	32
High temp. alloys Ni C	Annealed		250	33
or o	Hardened		350	34
S based	Cast		320	35	25-60	0.01-0.03	0.025-0.03	0.03-0.035	0.03-0.04	0.02-0.10
	Pure	400		36
Titanium alloys	Alpha+beta alloys hardened	1050		37
Hardened steel	Hardened		55 HRC	38	20-50		0.025-0.03	0.03-0.035	0.03-0.04
H	Hardened		60 HRC	39		001003				002010
Chilled cast iron	Cast		400	40		.-.				.-.
Cast iron	Hardened		55 HRC	41

(1) For workpiece materials list, see pages 495-524
