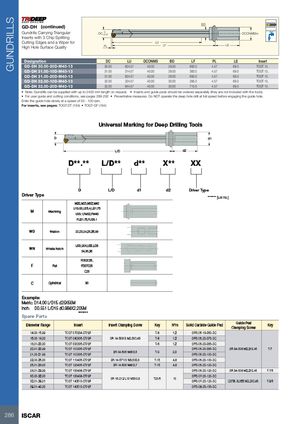

| GD-DH (continued) | B | D | ||||||
| Gundrills Carrying Triangular Inserts with 3 Chip Splitting | DC 0 -0.07 | DCONMSh6 | ||||||
| Cutting Edges and a Wiper for High Hole Surface Quality | PL | LU | LF | LS | ||||
| Designation | DC | LU | DCONMS | BD | LF | PL | LS | Insert |
| GD-DH 30.00-20D-M40-13 | 30.00 | 624.57 | 40.00 | 29.00 | 693.0 | 4.57 | 69.0 | TOGT 13.. |
| GD-DH 31.00-10D-M40-13 | 31.00 | 314.57 | 40.00 | 29.00 | 383.0 | 4.57 | 69.0 | TOGT 13.. |
| GD-DH 31.00-20D-M40-13 | 31.00 | 624.57 | 40.00 | 29.00 | 693.0 | 4.57 | 69.0 | TOGT 13.. |
| GD-DH 32.00-10D-M40-13 | 32.00 | 324.57 | 40.00 | 30.00 | 395.0 | 4.57 | 69.0 | TOGT 13.. |
| GD-DH 32.00-20D-M40-13 | 32.00 | 644.57 | 40.00 | 30.00 | 715.0 | 4.57 | 69.0 | TOGT 13.. |
- Note: Gundrills can be supplied with up to 2400 mm length on request.
- Inserts and guide pads should be ordered separately (they are not included with the tools).
- For user guide and cutting conditions, see pages 289-292
- Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole.
Enter the guide hole slowly at a speed of 50 - 100 rpm.
For inserts, see pages: TOGT-DT (194) TOGT-GF (194)
