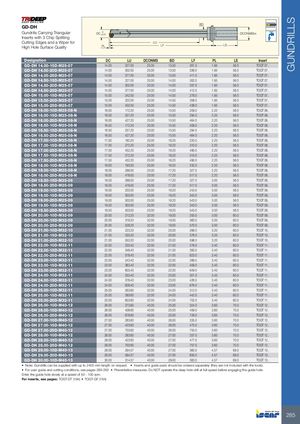

| D-DH | BD | ||||||||
| undrills Carrying Triangular serts with 3 Chip Splitting | DC 0 -0.07 | DCONMSh6 | |||||||
| utting Edges and a Wiper for igh Hole Surface Quality | PL | LU | LF | L | S | ||||
| Designation | DC | LU | DCONMS | BD | LF | PL | LS | Insert | |
| GD-DH 14.00-15D-M25-07 | 14.00 | 227.00 | 25.00 | 13.50 | 261.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 14.00-20D-M25-07 | 14.00 | 302.00 | 25.00 | 13.50 | 336.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 14.00-25D-M25-07 | 14.00 | 377.00 | 25.00 | 13.50 | 411.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 14.50-15D-M25-07 | 14.50 | 227.00 | 25.00 | 14.00 | 262.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 14.50-20D-M25-07 | 14.50 | 302.00 | 25.00 | 14.00 | 337.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 14.50-25D-M25-07 | 14.50 | 377.00 | 25.00 | 14.00 | 412.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 15.00-15D-M25-07 | 15.00 | 242.00 | 25.00 | 14.50 | 278.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 15.00-20D-M25-07 | 15.00 | 322.00 | 25.00 | 14.50 | 358.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 15.00-25D-M25-07 | 15.00 | 402.00 | 25.00 | 14.50 | 438.0 | 1.95 | 56.0 | TOGT 07.. | |
| GD-DH 16.00-10D-M25-08-N | 16.00 | 172.20 | 25.00 | 15.50 | 209.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 16.00-15D-M25-08-N | 16.00 | 257.20 | 25.00 | 15.50 | 294.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 16.00-25D-M25-08-N | 16.00 | 427.20 | 25.00 | 15.50 | 464.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 16.50-10D-M25-08-N | 16.50 | 172.20 | 25.00 | 15.50 | 209.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 16.50-15D-M25-08-N | 16.50 | 257.20 | 25.00 | 15.50 | 294.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 16.50-25D-M25-08-N | 16.50 | 427.20 | 25.00 | 15.50 | 464.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 17.00-10D-M25-08-N | 17.00 | 182.20 | 25.00 | 16.20 | 220.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 17.00-15D-M25-08-N | 17.00 | 272.20 | 25.00 | 16.20 | 310.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 17.00-25D-M25-08-N | 17.00 | 452.20 | 25.00 | 16.20 | 490.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 17.50-15D-M25-08-N | 17.50 | 272.20 | 25.00 | 16.20 | 310.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 17.50-25D-M25-08-N | 17.50 | 452.20 | 25.00 | 16.20 | 490.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 18.00-10D-M25-08-N | 18.00 | 193.00 | 25.00 | 16.20 | 232.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 18.00-15D-M25-08-N | 18.00 | 288.00 | 25.00 | 17.20 | 327.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 18.00-25D-M25-08-N | 18.00 | 478.00 | 25.00 | 17.20 | 517.0 | 2.20 | 56.0 | TOGT 08.. | |
| GD-DH 18.50-15D-M25-09 | 18.50 | 288.00 | 25.00 | 17.20 | 327.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 18.50-25D-M25-09 | 18.50 | 478.00 | 25.00 | 17.20 | 517.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 19.00-10D-M25-09 | 19.00 | 203.00 | 25.00 | 18.20 | 243.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 19.00-15D-M25-09 | 19.00 | 303.00 | 25.00 | 18.20 | 343.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 19.00-25D-M25-09 | 19.00 | 503.00 | 25.00 | 18.20 | 543.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 19.50-15D-M25-09 | 19.50 | 303.00 | 25.00 | 18.20 | 343.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 19.50-25D-M25-09 | 19.50 | 503.00 | 25.00 | 18.20 | 543.0 | 3.00 | 56.0 | TOGT 09.. | |
| GD-DH 20.00-10D-M32-09 | 20.00 | 213.20 | 32.00 | 19.00 | 255.0 | 3.00 | 60.0 | TOGT 09.. | |
| GD-DH 20.00-15D-M32-09 | 20.00 | 318.20 | 32.00 | 19.00 | 360.0 | 3.00 | 60.0 | TOGT 09.. | |
| GD-DH 20.00-25D-M32-09 | 20.00 | 528.20 | 32.00 | 19.00 | 570.0 | 3.00 | 60.0 | TOGT 09.. | |
| GD-DH 21.00-10D-M32-10 | 21.00 | 223.20 | 32.00 | 20.00 | 266.0 | 3.20 | 60.0 | TOGT 10.. | |
| GD-DH 21.00-15D-M32-10 | 21.00 | 333.20 | 32.00 | 20.00 | 376.0 | 3.20 | 60.0 | TOGT 10.. | |
| GD-DH 21.00-25D-M32-10 | 21.00 | 553.20 | 32.00 | 20.00 | 596.0 | 3.20 | 60.0 | TOGT 10.. | |
| GD-DH 22.00-10D-M32-11 | 22.00 | 233.40 | 32.00 | 21.00 | 278.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 22.00-15D-M32-11 | 22.00 | 348.40 | 32.00 | 21.00 | 393.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 22.00-25D-M32-11 | 22.00 | 578.40 | 32.00 | 21.00 | 623.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 23.00-10D-M32-11 | 23.00 | 243.40 | 32.00 | 22.00 | 289.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 23.00-15D-M32-11 | 23.00 | 363.40 | 32.00 | 22.00 | 409.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 23.00-25D-M32-11 | 23.00 | 603.40 | 32.00 | 22.00 | 649.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 24.00-10D-M32-11 | 24.00 | 253.40 | 32.00 | 23.00 | 301.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 24.00-15D-M32-11 | 24.00 | 378.40 | 32.00 | 23.00 | 426.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 24.00-25D-M32-11 | 24.00 | 628.40 | 32.00 | 23.00 | 676.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 25.00-10D-M32-11 | 25.00 | 263.60 | 32.00 | 24.00 | 312.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 25.00-15D-M32-11 | 25.00 | 393.60 | 32.00 | 24.00 | 442.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 25.00-25D-M32-11 | 25.00 | 653.60 | 32.00 | 24.00 | 702.0 | 3.40 | 60.0 | TOGT 11.. | |
| GD-DH 26.00-10D-M40-12 | 26.00 | 273.60 | 40.00 | 25.00 | 324.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 26.00-15D-M40-12 | 26.00 | 408.60 | 40.00 | 25.00 | 459.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 26.00-25D-M40-12 | 26.00 | 678.60 | 40.00 | 25.00 | 729.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 2700-10D-M40-12 | 2700 | 28360 | 4000 | 2600 | 3350 | 360 | 700 | TOGT 12 | |
| . GD-DH 27.00-15D-M40-12 | . 27.00 | . 423.60 | . 40.00 | . 26.00 | . 475.0 | . 3.60 | . 70.0 | .. TOGT 12.. | |
| GD-DH 27.00-25D-M40-12 | 27.00 | 703.60 | 40.00 | 26.00 | 755.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 28.00-10D-M40-12 | 28.00 | 283.60 | 40.00 | 27.00 | 337.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 28.00-15D-M40-12 | 28.00 | 423.60 | 40.00 | 27.00 | 477.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 28.00-25D-M40-12 | 28.00 | 703.60 | 40.00 | 27.00 | 757.0 | 3.60 | 70.0 | TOGT 12.. | |
| GD-DH 29.00-10D-M40-13 | 29.00 | 294.57 | 40.00 | 27.00 | 360.0 | 4.57 | 69.0 | TOGT 13.. | |
| GD-DH 29.00-20D-M40-13 GD-DH 30.00-10D-M40-13 | 29.00 30.00 | 584.57 314.57 | 40.00 40.00 | 27.00 29.00 | 650.0 383.0 | 4.57 4.57 | 69.0 69.0 | TOGT 13.. TOGT 13.. |
- Note: Gundrills can be supplied with up to 2400 mm length on request.
- Inserts and guide pads should be ordered separately (they are not included with the tools).
- For user guide and cutting conditions, see pages 289-292
- Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole.
Enter the guide hole slowly at a speed of 50 - 100 rpm.
For inserts, see pages: TOGT-DT (194) TOGT-GF (194)
