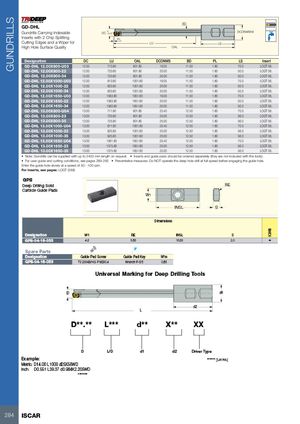

| BD | ||||||||
| GD-DHL | ||||||||
| Gundrills Carrying Indexable | DC 0 -0.07 | DCONMSh | 6 | |||||
| Inserts with 2 Chip Splitting | PL | |||||||
| Cutting Edges and a Wiper for | LU | LS | ||||||
| High Hole Surface Quality | OAL | |||||||
| Designation | DC | LU | OAL | DCONMS | BD | PL | LS | Insert |
| GD-DHL 12.00X800-U03 | 12.00 | 713.80 | 801.80 | 19.05 | 11.50 | 1.80 | 70.0 | LOGT 06.. |
| GD-DHL 12.00X800-22 | 12.00 | 733.80 | 801.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 06.. |
| GD-DHL 12.00X800-34 | 12.00 | 733.80 | 801.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 06.. |
| GD-DHL 12.00X1000-U03 | 12.00 | 913.80 | 1001.80 | 19.05 | 11.50 | 1.80 | 70.0 | LOGT 06.. |
| GD-DHL 12.00X1000-22 | 12.00 | 933.80 | 1001.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 06.. |
| GD-DHL 12.00X1000-34 | 12.00 | 933.80 | 1001.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 06.. |
| GD-DHL 12.00X1650-U03 | 12.00 | 1563.80 | 1651.80 | 19.05 | 11.50 | 1.80 | 70.0 | LOGT 06.. |
| GD-DHL 12.00X1650-22 | 12.00 | 1583.80 | 1651.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 06.. |
| GD-DHL 12.00X1650-34 | 12.00 | 1583.80 | 1651.80 | 20.00 | 11.50 | 1.80 | 50.0 | LOGT 06.. |
| GD-DHL 13.00X800-U04 | 13.00 | 711.80 | 801.80 | 25.40 | 12.50 | 1.80 | 70.0 | LOGT 06.. |
| GD-DHL 13.00X800-23 | 13.00 | 725.80 | 801.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 06.. |
| GD-DHL 13.00X800-35 | 13.00 | 725.80 | 801.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 06.. |
| GD-DHL 13.00X1000-U04 | 13.00 | 911.80 | 1001.80 | 25.40 | 12.50 | 1.80 | 70.0 | LOGT 06.. |
| GD-DHL 13.00X1000-23 | 13.00 | 925.80 | 1001.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 06.. |
| GD-DHL 13.00X1000-35 | 13.00 | 925.80 | 1001.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 06.. |
| GD-DHL 13.00X1650-U04 | 13.00 | 1561.80 | 1651.80 | 25.40 | 12.50 | 1.80 | 70.0 | LOGT 06.. |
| GD-DHL 13.00X1650-23 | 13.00 | 1575.80 | 1651.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 06.. |
| GD-DHL 13.00X1650-35 | 13.00 | 1575.80 | 1651.80 | 25.00 | 12.50 | 1.80 | 56.0 | LOGT 06.. |
- Note: Gundrills can be supplied with up to 2400 mm length on request.
- Inserts and guide pads should be ordered separately (they are not included with the tools).
- For user guide and cutting conditions, see pages 289-292
- Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole.
Enter the guide hole slowly at a speed of 50 - 100 rpm.
For inserts, see pages: LOGT (288)
