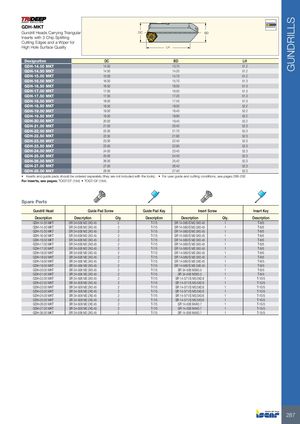

GDH-MKT
| undrill Heads Carrying Triangular serts with 3 Chip Splitting utting Edges and a Wiper for | DC | BD | |||
| igh Hole Surface Quality | LH | ||||
| Designation | DC | BD | LH | ||
| GDH-14.00 MKT | 14.00 | 13.70 | 51.2 | ||
| GDH-14.50 MKT | 14.50 | 14.20 | 51.2 | ||
| GDH-15.00 MKT | 15.00 | 14.70 | 51.2 | ||
| GDH-16.00 MKT | 16.00 | 15.70 | 51.3 | ||
| GDH-16.50 MKT | 16.50 | 16.00 | 51.3 | ||
| GDH-17.00 MKT | 17.00 | 16.50 | 51.3 | ||
| GDH-17.50 MKT | 17.50 | 17.20 | 51.3 | ||
| GDH-18.00 MKT | 18.00 | 17.40 | 51.3 | ||
| GDH-18.50 MKT | 18.50 | 18.00 | 52.2 | ||
| GDH-19.00 MKT | 19.00 | 18.40 | 52.2 | ||
| GDH-19.50 MKT | 19.50 | 18.90 | 52.2 | ||
| GDH-20.00 MKT | 20.00 | 19.40 | 52.2 | ||
| GDH-21.00 MKT | 21.00 | 20.40 | 52.3 | ||
| GDH-22.00 MKT | 22.00 | 21.70 | 52.3 | ||
| GDH-22.50 MKT | 22.50 | 21.90 | 52.3 | ||
| GDH-23.00 MKT | 23.00 | 22.40 | 52.3 | ||
| GDH-23.50 MKT | 23.50 | 22.90 | 52.3 | ||
| GDH-24.00 MKT | 24.00 | 23.40 | 52.3 | ||
| GDH-25.00 MKT | 25.00 | 24.40 | 52.3 | ||
| GDH-26.00 MKT | 26.00 | 25.40 | 52.3 | ||
| GDH-27.00 MKT | 27.00 | 26.40 | 52.3 | ||
| GDH-28.00 MKT | 28.00 | 27.40 | 52.3 |
- Inserts and guide pads should be ordered separately (they are not included with the tools).
- For user guide and cutting conditions, see pages 289-292
For inserts, see pages: TOGT-DT (194) TOGT-GF (194)
Spare Parts
| Gundrill Head | Guide Pad S | crew | Guide Pad Key | Insert Scre | w | Insert Key |
| Description | Description | Qty. | Description | Description | Qty. | Description |
| GDH-14.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-14.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-15.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-16.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-16.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-17.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-17.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-18.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-18.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-19.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-19.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-560/S M2.5X0.45 | 1 | T-8/5 |
| GDH-20.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 34-506 M3X0.5 | 1 | T-8/5 |
| GDH-21.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 34-506 M3X0.5 | 1 | T-8/5 |
| GDH-22.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-571/S M3.5X0.6 | 1 | T-10/5 |
| GDH-22.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-571/S M3.5X0.6 | 1 | T-10/5 |
| GDH-23.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-571/S M3.5X0.6 | 1 | T-10/5 |
| GDH-23.50 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-571/S M3.5X0.6 | 1 | T-10/5 |
| GDH-24.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-571/S M3.5X0.6 | 1 | T-10/5 |
| GDH-25.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-571/S M3.5X0.6 | 1 | T-10/5 |
| GDH-26.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-506 M4X0.7 | 1 | T-15/5 |
| GDH-27.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-506 M4X0.7 | 1 | T-15/5 |
| GDH-28.00 MKT | SR 34-508 M2.2X0.45 | 2 | T-7/5 | SR 14-506 M4X0.7 | 1 | T-15/5 |
