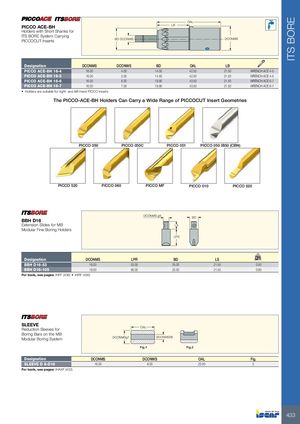

| PICCO ACE-BH Holders with Short Shanks for ITS BORE System Carrying PICCOCUT Inserts | DCONWS BD | LB | OAL DCONMS | ||
| Designation | DCONMS | DCONWS | BD | OAL LB | |
| PICCO ACE-BH 16-4 | 16.00 | 4.00 | 14.50 | 42.50 21.50 | WRENCH ACE 4-5 |
| PICCO ACE-BH 16-5 | 16.00 | 5.00 | 14.50 | 42.50 21.50 | WRENCH ACE 4-5 |
| PICCO ACE-BH 16-6 | 16.00 | 6.00 | 19.90 | 43.50 21.50 | WRENCH ACE 6-7 |
| PICCO ACE-BH 16-7 | 16.00 | 7.00 | 19.90 | 43.50 21.50 | WRENCH ACE 6-7 |
- Holders are suitable for right- and left-hand PICCO inserts
The PICCO-ACE-BH Holders Can Carry a Wide Range of PICCOCUT Insert Geometries
PICCO 050 PICCO 050C PICCO 051 PICCO 050 IB50 (CBN)
PICCO 520 PICCO 060 PICCO MF PICCO 010 PICCO 020
| BBH D16 Extension Slides for MB Modular Fine Boring Holders | DCO | NMSg6 LS | BD | |||
| LPR | ||||||
| Designation | DCONMS | LPR | BD | LS | kg | |
| BBH D16-53 | 16.00 | 53.00 | 25.00 | 21.50 | 0.50 | |
| BBH D16-105 | 16.00 | 95.00 | 25.00 | 21.50 | 0.80 |
For tools, see pages: IHFF (436) IHRF (436)
SLEEVE
Reduction Sleeves for OAL
Boring Bars on the MB
| Modular Boring System | DCONMSg7 | DCONWSh8 | ||
| Fig.1 | Fig.2 |
| Designation | DCONMS | DCONWS | OAL | Fig. | |
| SLEEVE D 8-D16 | 16.00 | 8.00 | 23.00 | 2. |
For tools, see pages: IHAXF (432)
