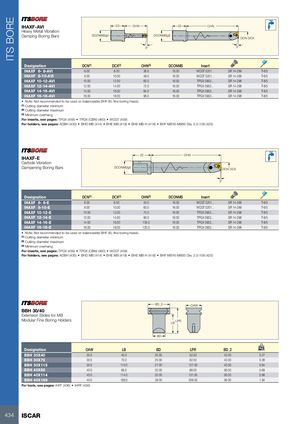

| IHAXF-AVI Heavy Metal Vibration Damping Boring Bars | DCONMSg5 OHN 22 | DCN-DCX OHN 22 DCONMSg5 |
| 3° | 3° |
| Designation | DCN(1) | DCX(2) | OHN(3) | DCONMS | Insert | ||
| IHAXF 6- 8-AVI | 6.00 | 8.00 | 36.0 | 16.00 | WCGT 0201... | SR 14-299 | T-6/5 |
| IHAXF 8-10-AVI | 8.00 | 10.00 | 48.0 | 16.00 | WCGT 0201... | SR 14-299 | T-6/5 |
| IHAXF 10-12-AVI | 10.00 | 12.00 | 60.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHAXF 12-14-AVI | 12.00 | 14.00 | 72.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHAXF 14-16-AVI | 14.00 | 16.00 | 84.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHAXF 16-18-AVI | 16.00 | 18.00 | 96.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
- Note: Not recommended to be used on balanceable BHF-BL fine boring heads.
(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Minimum overhang
For inserts, see pages: TPGX (459) TPGX (CBN) (460) WCGT (459)
For holders, see pages: ADBH (435) BHD MB (414) BHE MB (418) BHE MB-H (418) BHF MB16-MB50 Dia. 2.5-108 (425)
IHAXF-E
Carbide Vibration
Dampening Boring Bars
DCONMSg5
22
OHN
DCN-DCX
3˚
| Designation | DCN(1) | DCX(2) | OHN(3) | DCONMS | Insert | ||
| IHAXF 6- 8-E | 6.00 | 8.00 | 45.0 | 16.00 | WCGT 0201... | SR 14-299 | T-6/5 |
| IHAXF 8-10-E | 8.00 | 10.00 | 60.0 | 16.00 | WCGT 0201... | SR 14-299 | T-6/5 |
| IHAXF 10-12-E | 10.00 | 12.00 | 75.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHAXF 12-14-E | 12.00 | 14.00 | 90.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHAXF 14-16-E | 14.00 | 16.00 | 105.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
| IHAXF 16-18-E | 16.00 | 18.00 | 120.0 | 16.00 | TPGX 0902... | SR 14-298 | T-8/5 |
- Note: Not recommended to be used on balanceable BHF-BL fine boring heads.
(1) Cutting diameter minimum (2) Cutting diameter maximum (3) Minimum overhang
For inserts, see pages: TPGX (459) TPGX (CBN) (460) WCGT (459)
For holders, see pages: ADBH (435) BHD MB (414) BHE MB (418) BHE MB-H (418) BHF MB16-MB50 Dia. 2.5-108 (425)
| BD2 | OAW | ||||||
| BBH 30/40 | |||||||
| Extension Slides for MB Modular Fine Boring Holders | LB LPR | ||||||
| BD | |||||||
| Designation | OAW | LB | BD | LPR | BD2 | kg | |
| BBH 30X40 | 30.5 | 40.0 | 25.00 | 52.50 | 43.00 | 0.27 | |
| BBH 30X70 | 30.5 | 70.0 | 25.00 | 82.50 | 43.00 | 0.38 | |
| BBH 30X115 | 30.5 | 115.0 | 27.00 | 127.50 | 43.00 | 0.64 | |
| BBH 40X69 | 40.0 | 69.0 | 32.00 | 86.00 | 56.00 | 0.69 | |
| BBH 40X114 | 40.0 | 114.0 | 32.00 | 131.00 | 56.00 | 0.98 | |
| BBH 40X189 | 40.0 | 189.0 | 38.00 | 206.00 | 56.00 | 1.94 |
For tools, see pages: IHFF (436) IHRF (436)
