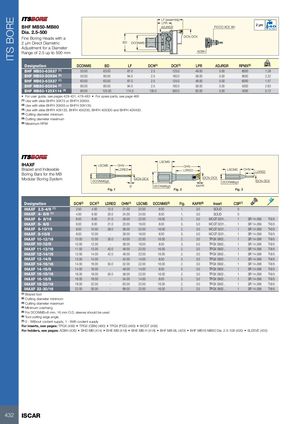

| BHF MB50-MB80 | ADJRGR LPR LF (assembly) | PICCO ACE BH | 2 µm 40 Bar Max | |||||
| Dia. 2.5-500 | ||||||||
| Fine Boring Heads with a 2 µm Direct Diametric Adjustment for a Diameter Range of 2.5 up to 500 mm | DCONMS BD | DCN-DCX ADBH | ||||||
| Designation | DCONMS | BD | LF DCN(4) | DCX(5) | LPR | ADJRGR | RPMX(6) | kg |
| BHF MB50-63X87(1) | 50.00 | 63.00 | 87.0 2.5 | 125.0 | 49.00 | 5.00 | 8000 | 1.28 |
| BHF MB50-80X94(2) | 50.00 | 80.00 | 94.0 2.5 | 160.0 | 58.00 | 5.00 | 8000 | 2.22 |
| BHF MB63-63X87(1) | 63.00 | 63.00 | 87.0 2.5 | 125.0 | 49.00 | 5.00 | 6000 | 1.57 |
| BHF MB80-80X94(2) | 80.00 | 80.00 | 94.0 2.5 | 160.0 | 58.00 | 5.00 | 5000 | 2.63 |
| BHF MB80-125X114(3) | 80.00 | 125.00 | 114.0 135.0 | 500.0 | 63.00 | 5.00 | 4000 | 5.72 |
- For user guide, see pages 429-431, 478-483
- For spare parts, see page 466
(1) Use with slide BHFH 30X75 or BHFH 30X93. (2) Use with slide BHFH 30X93 or BHFH 30X135. (3) Use with slide BHFH 40X133, BHFH 40X200, BHFH 40X300 and BHFH 40X400. (4) Cutting diameter minimum (5) Cutting diameter maximum (6) Maximum RPM
| IHAXF | LS | CMS | OHN | LSCMS | OH | N | ||||||
| Brazed and Indexable | LDRED | LD | RED | L | SCMS | OHN LDRE | ||||||
| Boring Bars for the MB | ||||||||||||
| Mdl Bi S | DCN-DCX | D | CN-DCX | |||||||||
| ouar orn sem | ||||||||||||
| DCON | MSg5 | DCO | NMSg5 | DCN- | CX | |||||||
| Fig. 1 | 6˚ | DCONMSg5 | Fig. 2 | KAPR | Fig. 3 | |||||||
| Designation | DCN(2) | DCX(3) | LDRED | OHN(4) | LSCMS | DCONMS(5) | Fig. | KAPR(6) | Insert | CSP(7) | ||
| IHAXF 2.5-4/8(1) | 2.50 | 4.00 | 12.5 | 21.00 | 22.00 | 8.00 | 1. | 3.0 | SOLID | 0 | ||
| IHAXF 4- 6/8(1) | 4.00 | 6.00 | 20.0 | 24.00 | 24.00 | 8.00 | 1. | 3.0 | SOLID | 0 | ||
| IHAXF 6- 8/16 | 6.00 | 8.00 | 21.0 | 29.00 | 22.00 | 16.00 | 2. | 3.0 | WCGT 0201... | 1 | SR 14-299 | T-6/5 |
| IHAXF 6- 8/8 | 6.00 | 8.00 | 21.0 | 23.00 | 16.00 | 8.00 | 3. | 5.0 | WCGT 0201... | 1 | SR 14-299 | T-6/5 |
| IHAXF 8-10/16 | 8.00 | 10.00 | 28.0 | 36.00 | 22.00 | 16.00 | 2. | 3.0 | WCGT 0201... | 1 | SR 14-299 | T-6/5 |
| IHAXF 8-10/8 | 8.00 | 10.00 | - | 28.00 | 16.00 | 8.00 | 3. | 5.0 | WCGT 0201... | 1 | SR 14-299 | T-6/5 |
| IHAXF 10-12/16 | 10.00 | 12.00 | 35.0 | 43.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 10-12/8 | 10.00 | 12.00 | - | 36.00 | 16.00 | 8.00 | 3. | 5.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 11-13/16 | 11.00 | 13.00 | 40.0 | 48.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 12-14/16 | 12.00 | 14.00 | 42.0 | 48.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 12-14/8 | 12.00 | 14.00 | - | 42.00 | 14.00 | 8.00 | 3. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 14-16/16 | 14.00 | 16.00 | 50.0 | 52.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 14-16/8 | 14.00 | 16.00 | - | 48.00 | 14.00 | 8.00 | 3. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 16-18/16 | 16.00 | 18.00 | 50.0 | 58.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 16-18/8 | 16.00 | 18.00 | - | 54.00 | 14.00 | 8.00 | 3. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 18-22/16 | 18.00 | 22.00 | - | 63.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
| IHAXF 22-30/16 | 22.00 | 30.00 | - | 68.00 | 22.00 | 16.00 | 2. | 3.0 | TPGX 0902... | 1 | SR 14-298 | T-8/5 |
(1) Brazed tool (2) Cutting diameter minimum (3) Cutting diameter maximum (4) Minimum overhang (5) For DCONMS=8 mm, 16 mm O.D. sleeves should be used (6) Tool cutting edge angle (7) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: TPGX (459) TPGX (CBN) (460) TPGX (PCD) (460) WCGT (459)
For holders, see pages: ADBH (435) BHD MB (414) BHE MB (418) BHE MB-H (418) BHF MB-BL (423) BHF MB16-MB50 Dia. 2.5-108 (425) SLEEVE (433)
