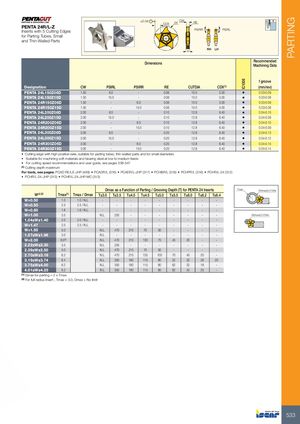

| ENTA 24R/L-Z serts with 5 Cutting Edges r Parting Tubes, Small nd Thin-Walled Parts | C ±0.04 24 CDX | W RE 4 PSIRR | RH LH PSIRL | |||
| Dimensions | Recommended Machining Data | |||||
| Designation | CW PSIR | L PSIRR RE | CUTDIA | CDX(1) | IC1008 | f groove (mm/rev) |
| PENTA 24L150Z06D | 1.50 6.0 | - 0.06 | 10.0 | 5.00 | • | 0.03-0.09 |
| PENTA 24L150Z15D | 1.50 15.0 | - 0.06 | 10.0 | 5.00 | • | 0.03-0.08 |
| PENTA 24R150Z06D | 1.50 - | 6.0 0.06 | 10.0 | 5.00 | • | 0.03-0.09 |
| PENTA 24R150Z15D | 1.50 - | 15.0 0.06 | 10.0 | 5.00 | • | 0.03-0.08 |
| PENTA 24L200Z06D | 2.00 6.0 | - 0.10 | 12.8 | 6.40 | • | 0.04-0.10 |
| PENTA 24L200Z15D | 2.00 15.0 | - 0.10 | 12.8 | 6.40 | • | 0.04-0.09 |
| PENTA 24R200Z06D | 2.00 - | 6.0 0.10 | 12.8 | 6.40 | • | 0.04-0.10 |
| PENTA 24R200Z15D | 2.00 - | 15.0 0.10 | 12.8 | 6.40 | • | 0.04-0.09 |
| PENTA 24L300Z06D | 3.00 6.0 | - 0.20 | 12.8 | 6.40 | • | 0.04-0.13 |
| PENTA 24L300Z15D | 3.00 15.0 | - 0.20 | 12.8 | 6.40 | • | 0.04-0.12 |
| PENTA 24R300Z06D | 3.00 - | 6.0 0.20 | 12.8 | 6.40 | • | 0.04-0.15 |
| PENTA 24R300Z15D | 3.00 - | 15.0 0.20 | 12.8 | 6.40 | • | 0.04-0.14 |
- Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters
- Suitable for machining soft materials and bearing steel at low to medium feeds
- For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting depth maximum
For tools, see pages: PCAD RE/LE-JHP (499) PCADR/L (316) PCADR/L-JHP (317) PCHBR/L (318) PCHPR/L (316) PCHR/L-24 (312)
- PCHR/L-24-JHP (313)
- PCHR/L-24-JHP-MC (313)
| Dm | axasaF | unction o | f Parting/ | Grooving | Depth(T | )for PEN | TA 24 Ins | erts | ØDmax(CUTDIA) Tmax | |||
| W±0.02 | Tmax(1) | Tmax / Dmax | T≤3.0 | T≤3.5 | T≤4.0 | T≤4.5 | T≤5.0 | T≤5.5 | T≤6.0 | T≤6.2 | T≤6.4 | |
| W=0.50 | 1.0 | 1.0 / N.L. | - | - | - | - | - | - | - | - | - | |
| W=0.50 | 2.5 | 2.5 / N.L. | - | - | - | - | - | - | - | - | - | |
| W=0.80 | 1.6 | 1.6 / N.L. | - | - | - | - | - | - | - | - | - | |
| W=1.00 | 3.5 | N.L. | 250 | - | - | - | - | - | - | - | ØDmax(CUTDIA) | |
| 1.04≤W≤1.40 | 2.0 | 2.0 / N.L. | - | - | - | - | - | - | - | - | - | |
| W=1.47 | 2.5 | 2.5 / N.L. | - | - | - | - | - | - | - | - | - | |
| W=1.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | - | ||
| 1.57≤W≤1.96 | 3.0 | N.L. | - | - | - | - | - | - | - | - | ||
| W=2.00 | 6.0(2) | N.L. | 470 | 210 | 130 | 75 | 45 | 20 | - | - | ||
| 2.22≤W≤2.30 | 3.5 | N.L. | 250 | - | - | - | - | - | - | - | ||
| 2.39≤W≤2.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | - | ||
| 2.70≤W≤3.18 | 6.2 | N.L. | 470 | 210 | 135 | 100 | 70 | 40 | 20 | - | ||
| 3.19≤W≤3.74 | 6.4 | N.L. | 350 | 180 | 115 | 80 | 52 | 32 | 26 | 20 | ||
| 3.75≤W≤4.00 | 6.2 | N.L. | 350 | 180 | 115 | 80 | 62 | 32 | 18 | - | ||
| 4.01≤W≤4.23 | 6.2 | N.L. | 350 | 180 | 115 | 80 | 62 | 42 | 25 | - |
(1) Dmax for parting = 2 x Tmax (2) For full radius insert , Tmax = 3.0, Dmax = No limit
