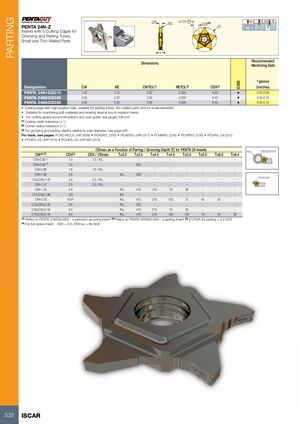

| PENTA 24N-Z Inserts with 5 Cutting Edges for Grooving and Parting Tubes, Small and Thin-Walled Parts | CW R 4 | E 24 CDX(3) ±0.04 | ||||
| Dimensions | Recommended Machining Data | |||||
| Designation | CW | RE | CWTOL(1) | RETOL(2) CDX(3) | IC908 | f groove (mm/rev) |
| PENTA 24N150Z010 | 1.50 | 0.10 | 0.02 | 0.020 5.00 | • | 0.05-0.08 |
| PENTA 24N200Z020 | 2.00 | 0.20 | 0.02 | 0.030 6.40 | • | 0.04-0.12 |
| PENTA 24N300Z020 | 3.00 | 0.20 | 0.02 | 0.000 6.40 | • | 0.04-0.16 |
- Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters
- Suitable for machining soft materials and bearing steel at low to medium feeds
- For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 532
For tools, see pages: PCAD RE/LE-JHP (499) PCADR/L (316) PCADR/L-JHP (317) PCHBR/L (318) PCHPR/L (316) PCHR/L-24 (312)
- PCHR/L-24-JHP (313)
- PCHR/L-24-JHP-MC (313)
| ØDmax as a | Function o | f Parting/ | GroovingD | epth(T)fo | r PENTA 2 | 4 Inserts | ØDmax(CUTDIA) Tmax | ||||
| CW±0.02 | CDX(3) | CDX /ØDmax | T≤3.0 | T≤3.5 | T≤4.0 | T≤4.5 | T≤5.0 | T≤5.5 | T≤6.5 | T≤6.4 | |
| CW=0.50(1) | 1.0 | 1.0 / N.L. | - | - | - | - | - | - | - | - | |
| CW=0.50(2) | 2.5 | 250 | |||||||||
| CW=0.80 | 1.6 | 1.6 / N.L. | - | - | - | - | - | - | - | - | |
| CW=1.00 | 3.5 | N.L. | 250 | - | - | - | - | - | - | ||
| 1.04≤CW≤1.40 | 2.0 | 2.0 / N.L. | - | - | - | - | - | - | - | - | ØDmax(CUTDIA) |
| CW=1.47 | 2.5 | 2.5 / N.L. | - | - | - | - | - | - | - | - | |
| CW=1.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | ||
| 1.57≤CW≤1.96 | 3.0 | N.L. | - | - | - | - | - | - | - | ||
| CW=2.00 | 6.0(4) | N.L. | 470 | 210 | 130 | 75 | 45 | 20 | - | ||
| 2.22≤CW≤2.30 | 3.5 | N.L. | 250 | - | - | - | - | - | - | ||
| 2.39≤CW≤2.50 | 5.0 | N.L. | 470 | 210 | 70 | 30 | - | - | - | ||
| 2.70≤CW≤3.18 | 6.4 | N.L. | 470 | 210 | 135 | 100 | 70 | 40 | 20 |
(1) Refers to PENTA 24N050J000 - a precision grooving insert (2) Refers to PENTA 24N050J004 - a parting insert (3) CUTDIA for parting = 2 x CDX (4) For full radius insert, CDX = 3.0, ØDmax = No limit
