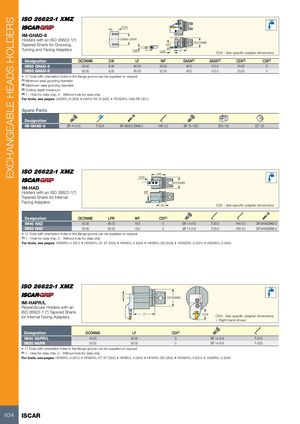

| IM-GHAD-8 Holders with an ISO 26622-1() Tapered Shank for Grooving, Turning and Facing Adapters | CW DAXN-DAXX CDX | WF LF CDX DCON | MS CDX - S | ee specific adapt | er dimensions | ||
| Designation | DCONMS | CW | LF | WF DAXN(1) | DAXX(2) | CDX(3) | CDI(4) |
| IM50 GHAD-8 | 50.00 | 8.00 | 60.00 | 26.00 80.0 | 510.0 | 25.00 | 0 |
| IM63 GHAD-8 | 63.00 | 8.00 | 65.00 | 32.50 80.0 | 510.0 | 25.00 | 0 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
(1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Cutting depth maximum (4) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: GADR/L-8 (269) GAFG-R/L-8 (562) PCADR/L 34N-RE (301)
Spare Parts
| Designation | |||
| IM-GHAD-8 | SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 | EZA 125 | EZ 125 |
| LPR CDX | DCONMS | ||||||
| IM-HAD | |||||||
| Holders with an ISO 26622-1() | WF | ||||||
| Tapered Shank for Internal | |||||||
| Facing Adapters | 26 | CDX - S | ee specific ada | pter dimensions | |||
| Designation | DCONMS | LPR | WF C | DI(1) | |||
| IM40 HAD | 40.00 | 60.00 | 18.0 | 0 SR 14-519 | T-20/3 | HW 3.0 | SR M4X6DIN912 |
| IM50 HAD | 50.00 | 60.00 | 18.0 | 0 SR 14-519 | T-20/3 | HW 3.0 | SR M4X6DIN912 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: HFAER/L-4 (551) HFAER/L-5T, 6T (552) HFAIR/L-4 (554) HFAIR/L-DG (555) HGAER/L-3 (551) HGAIR/L-3 (554)
8 DCONMS
IM-HAPR/L
Perpendicular Holders with an
ISO 26622-1 (*) Tapered Shank
for Internal Facing Adapters LF CDX
CDX - See specific adapter dimensions
- Right-hand shown
| Designation | DCONMS | LF | CDI(1) | ||
| IM40 HAPR/L | 40.00 | 50.00 | 0 | SR 14-519 | T-20/3 |
| IM50 HAPR | 50.00 | 50.00 | 0 | SR 14-519 | T-20/3 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: HFAER/L-4 (551) HFAER/L-5T, 6T (552) HFAIR/L-4 (554) HFAIR/L-DG (555) HGAER/L-3 (551) HGAIR/L-3 (554)
