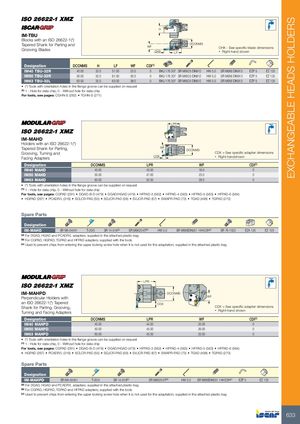

Каталог Iscar отрезка 2022 - страница 175
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| H | |||||||||
| IM-TBU | |||||||||
| Blocks with an ISO 26622-1() Tapered Shank for Parting and Grooving Blades | WF OHX LF | DCONMS | OHX - See specifi •Right-hand sho | c blade dim wn | ensions | ||||
| Designation DCONMS | H | LF | WF | CDI(1) | |||||
| IM40 TBU-32R 40.00 | 32.0 | 51.00 | 23.0 | 0 BKU 176 307 S | R M6X25 DIN912 | HW 5.0 | SR M6X6 DIN913 | EZP 5 | EZ 125 |
| IM50 TBU-32R 50.00 | 32.0 | 61.00 | 30.0 | 0 BKU 176 307 S | R M6X25 DIN912 | HW 5.0 | SR M6X6 DIN913 | EZP 5 | EZ 125 |
| IM63 TBU-32L 63.00 | 32.0 | 63.00 | 38.0 | 0 BKU 176 307 S | R M6X25 DIN912 | HW 5.0 | SR M6X6 DIN913 | EZP 5 | EZ 125 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-S (282) TGHN-S (271)
| LPR | |||
| IM-MAHD Holders with an ISO 26622-1() Tapered Shank for Parting, Grooving, Turning and Facing Adapters | DCONMS WF CDX | CDX = See specific adapter dimensions •Right-handshown | |
| Designation | DCONMS | LPR WF | CDI(1) |
| IM40 MAHD | 40.00 | 43.00 18.0 | 0 |
| IM50 MAHD | 50.00 | 47.00 23.0 | 0 |
| IM63 MAHD | 63.00 | 52.00 29.0 | 0 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
Spare Parts
Designation
IM-MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) SR 76-1022 EZA 125 EZ 125
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
| IM-MAHPD Perpendicular Holders with an ISO 26622-1() Tapered Shank for Parting, Grooving, Turning and Facing Adapters | DCONMS LPR CDX | WF CDX = See s •Right-han | pecific adapter dimensions d shown | |
| Designation | DCONMS | LPR WF | CDI(1) | |
| IM40 MAHPD | 40.00 | 44.00 25.00 | 0 | |
| IM50 MAHPD | 50.00 | 45.00 26.00 | 0 | |
| IM63 MAHPD | 63.00 | 45.00 33.00 | 0 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
Spare Parts
Designation
IM-MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZP 5 EZ 125
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
