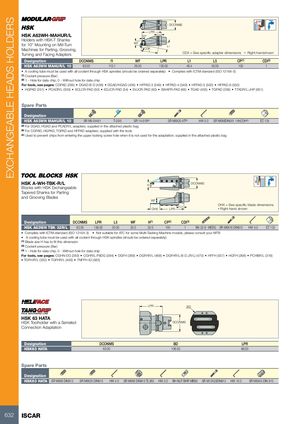

| DCONMS | 10° | ||||
| HSK A63WH-MAHUR/L Holders with HSK-T Shanks | L5 10° LPR | ||||
| for 10° Mounting on Mill-Turn Machines for Parting, Grooving, Turning and Facing Adapters | L1 f1 CDX WF CDX = See s | pecific adapter dimensions | •Right-handshown | ||
| Designation | DCONMS | f1 | WF LPR L1 | L5 CP( | 1) CDI(2) |
| HSK A63WH MAHUR/L 10 | 63.00 | 113.1 | 29.00 130.00 49.4 | 30.00 100 | 1 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with ICTM standard (ISO 12164-3)
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (265) DGAD-B-D (436) DGAD/HGAD (436) HFPAD-3 (549) HFPAD-4 (549) HFPAD-5 (550) HFPAD-6 (550)
- HGPAD (251)
- PCADR/L (300)
- SCLCR-PAD (50)
- SDJCR-PAD (54)
- SVJCR-PAD (60)
- SWAPR-PAD (66)
- TGAD (455)
- TGPAD (256)
- TTADR/L-JHP (651)
| Spare Parts | ||||||
| Designation | ||||||
| HSK A63WH MAHUR/L 10 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 SR M6X6DIN551 14H/22H(c) | EZ 125 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
HSK A-WH-TBK-R/L DCONMS H
Blocks with HSK Exchangeable
Tapered Shanks for Parting
and Grooving Blades
WF OHX = See specific blade dimensions L5
OHX LPR Right-hand shown
| Designation | DCONMS | LPR | L5 | WF | H(1) | CP(2) | CDI(3) | |||
| HSK A63WH TBK 32R/L | 63.00 | 138.00 | 30.00 | 32.0 | 32.0 | 100 | 1 | BK 32-9 WEDG SR M6X16 DIN912 | HW 5.0 | EZ 125 |
- Complies with ICTM standard (ISO 12164-3)
- Not suitable for ATC for some Multi-Tasking Machine models, please consult your MTB
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) Blade size H has to fit this dimension (2) Coolant pressure (Bar) (3) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-DG (283) CGHR/L-P8DG (284) DGFH (268) DGFHR/L (468) DGFHR/L-B-D..(R/L) (470) HFFH (557) HGFH (268) PCHBR/L (318)
- TGFH/R/L (332)
- TGFHR/L (495)
- TNFFH-IQ (583)
LPR BD
HSK 63 HATA
HSK Toolholder with a Serrated DCONMS
Connection Adaptation
| Designation | DCONMS | BD | LPR |
| HSK63 HATA | 63.00 | 106.00 | 86.00 |
Spare Parts
Designation
HSK63 HATA SR M6X6 DIN913 SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0 SR M8X45 DIN 913
