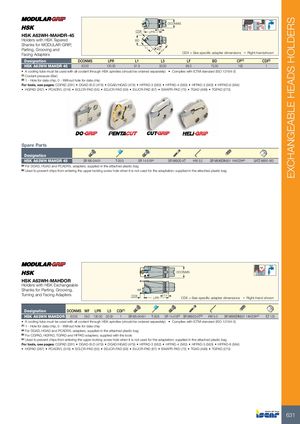

| HSK A63WH-MAHDR-45 Holders with HSK Tapered Shanks for MODULAR-GRIP, Parting, Grooving and Facing Adapters | LF 45° L1 L5 DCON LPR CDX BD | MS CDX = See s | pecific adapter dimensions | •Right-handshown 45° 45º | ||
| Designation | DCONMS | LPR | L1 L5 | LF | BD CP(1 | ) CDI(2) |
| HSK A63WH MAHDR 45 | 63.00 | 130.00 | 91.9 30.00 | 89.0 | 75.00 100 | 1 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with ICTM standard (ISO 12164-3)
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
Spare Parts
Designation
HSK A63WH MAHDR 45 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT HW 5.0 SR M6X6DIN551 14H/22H(b) SATZ-M8X1-M3
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
| DC | ONMS | |||||||||
| HSK A63WH-MAHDOR Holders with HSK Exchangeable | ||||||||||
| Shanks for Parting, Grooving, Turning and Facing Adapters | CDX WF | LPR | L5 | CDX = See spec | ific adapte | r dimensions | •Right-hand shown | |||
| Designation DCONMS | WF LPR | L5 | CDI(1) | |||||||
| HSK A63WH MAHDOR 63.00 | 29.0 130.00 | 30.00 | 1 | SR M5-04451 | T-20/5 | SR 14-519(a | ) SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN5 | 51 14H/22H(c) EZ 125 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with ICTM standard (ISO 12164-3)
(1) 1 - Hole for data chip, 0 - Without hole for data chip (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
