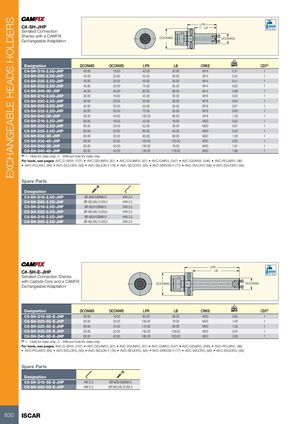

Каталог Iscar отрезка 2022 - страница 172
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
C#-SH-JHP LPR LB Serrated Connection Bar Max
Shanks with a CAMFIX
DCONMS DCONWS
Exchangeable Adaptation
| Designation | DCONMS | DCONWS | LPR | LB | CRKS | kg | CDI(1) |
| C4-SH-D16-2.5D-JHP | 40.00 | 16.00 | 40.00 | 20.00 | M14 | 0.31 | 1 |
| C4-SH-D20-2.5D-JHP | 40.00 | 20.00 | 50.00 | 30.00 | M14 | 0.35 | 1 |
| C4-SH-D25-2.5D-JHP | 40.00 | 25.00 | 55.00 | 35.00 | M14 | 0.41 | 1 |
| C4-SH-D32-2.5D-JHP | 40.00 | 32.00 | 75.00 | 55.00 | M14 | 0.63 | 1 |
| C4-SH-D40-3D-JHP | 40.00 | 40.00 | 80.00 | 80.00 | M14 | 0.88 | 1 |
| C5-SH-D16-2.5D-JHP | 50.00 | 16.00 | 40.00 | 20.00 | M16 | 0.50 | 1 |
| C5-SH-D20-2.5D-JHP | 50.00 | 20.00 | 50.00 | 30.00 | M16 | 0.54 | 1 |
| C5-SH-D25-2.5D-JHP | 50.00 | 25.00 | 55.00 | 35.00 | M16 | 0.61 | 1 |
| C5-SH-D32-2.5D-JHP | 50.00 | 32.00 | 75.00 | 55.00 | M16 | 0.00 | 1 |
| C5-SH-D40-3D-JHP | 50.00 | 40.00 | 100.00 | 80.00 | M16 | 1.26 | 1 |
| C6-SH-D16-2.5D-JHP | 63.00 | 16.00 | 40.00 | 18.00 | M20 | 0.83 | 1 |
| C6-SH-D20-2.5D-JHP | 63.00 | 20.00 | 50.00 | 28.00 | M20 | 0.87 | 1 |
| C6-SH-D25-2.5D-JHP | 63.00 | 25.00 | 65.00 | 43.00 | M20 | 0.00 | 1 |
| C6-SH-D32-3D-JHP | 63.00 | 32.00 | 90.00 | 68.00 | M20 | 1.26 | 1 |
| C6-SH-D32-4D-JHP | 63.00 | 32.00 | 125.00 | 103.00 | M20 | 0.00 | 1 |
| C6-SH-D40-3D-JHP | 63.00 | 40.00 | 100.00 | 78.00 | M20 | 1.61 | 1 |
| C6-SH-D40-4D-JHP | 63.00 | 40.00 | 140.00 | 118.00 | M20 | 1.99 | 1 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: AVC-D-SIR/L (707) AVC-DDUNR/L (97) AVC-DVUNR/L (97) AVC-GAIR/L (347) AVC-GEAIR/L (346) AVC-PCLNR/L (96)
- AVC-PCLXR/L (96)
- AVC-SCLCR/L (95)
- AVC-SDJCN-Y (76)
- AVC-SDUCR/L (95)
- AVC-SRDCN-Y (77)
- AVC-SVLCR/L (96)
- AVC-SVUCR/L (95)
Spare Parts
| Designation | ||
| C4-SH-D16-2.5D-JHP | SR M3X10DIN912 | HW 2.5 |
| C4-SH-D20-2.5D-JHP | SR M3.5XL10-D5.5 | HW 2.5 |
| C5-SH-D16-2.5D-JHP | SR M3X10DIN912 | HW 2.5 |
| C5-SH-D20-2.5D-JHP | SR M3.5XL10-D5.5 | HW 2.5 |
| C6-SH-D16-2.5D-JHP | SR M3X10DIN912 | HW 2.5 |
| C6-SH-D20-2.5D-JHP | SR M3.5XL10-D5.5 | HW 2.5 |
| LPR | |||||
| C#-SH-E-JHP Serrated Connection Shanks with Carbide Core and a CAMFIX Exchangeable Adaptation | D | LB CONMS | DCONWS Bar Max | ||
| Designation | DCONMS | DCONWS | LPR | LB CRKS | kg CDI(1) |
| C6-SH-D16-5D-E-JHP | 63.00 | 16.00 | 80.00 | 58.00 M20 | 0.93 1 |
| C6-SH-D20-5D-E-JHP | 63.00 | 20.00 | 100.00 | 78.00 M20 | 1.06 1 |
| C6-SH-D25-5D-E-JHP | 63.00 | 25.00 | 115.00 | 93.00 M20 | 1.29 1 |
| C6-SH-D32-5D-E-JHP | 63.00 | 32.00 | 150.00 | 128.00 M20 | 0.00 1 |
| C6-SH-D40-5D-E-JHP | 63.00 | 40.00 | 185.00 | 163.00 M20 | 2.68 1 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: AVC-D-SIR/L (707) AVC-DDUNR/L (97) AVC-DVUNR/L (97) AVC-GAIR/L (347) AVC-GEAIR/L (346) AVC-PCLNR/L (96)
- AVC-PCLXR/L (96)
- AVC-SCLCR/L (95)
- AVC-SDJCN-Y (76)
- AVC-SDUCR/L (95)
- AVC-SRDCN-Y (77)
- AVC-SVLCR/L (96)
- AVC-SVUCR/L (95)
Spare Parts
| Designation | ||
| C6-SH-D16-5D-E-JHP | HW 2.5 | SR M3X10DIN912 |
| C6-SH-D20-5D-E-JHP | HW 2.5 | SR M3.5XL10-D5.5 |
