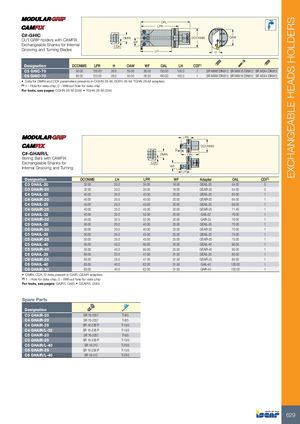

C#-GHIC CUT-GRIP holders with CAMFIX Exchangeable Shanks for Internal Grooving and Turning Blades		CDX	W DMIN	F	LPR LH OAL		DCONMS	H	OAW
Designation DCONMS	LPR	H	OAW	WF	OAL	LH	CDI(1)
C5 GHIC-70 50.00	120.00	26.0	53.00	26.50	150.00	100.0	1	SR M8X6 DIN913	SR M6X16 DIN912 SR M3X4 DIN913
C6 GHIC-70 63.00	122.00	26.0	53.00	26.50	160.00	100.0	1	SR M8X6 DIN913	SR M6X16 DIN912 SR M3X4 DIN913

Data for DMIN and CDX parameters presents in CGHN 26-M, SGFH 26-M, TGHN 26-M adapters

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: CGHN 26-M (356) TGHN 26-M (354)

				LPR
C#-GHAIR/L Boring Bars with CAMFIX Exchangeable Shanks for Internal Grooving and Turning			DMIN CDX	LH OA f2 WF	L DCONMS
Designation	DCONMS	LH	LPR	WF	Adapter	OAL	CDI(1)
C3 GHAIL-20	32.00	20.0	35.00	16.00	GEAIL-20	54.00	0
C3 GHAIR-20	32.00	20.0	35.00	16.00	GEAIR-20	54.00	0
C4 GHAIL-20	40.00	20.0	40.00	20.00	GEAIL-20	64.00	1
C4 GHAIR-20	40.00	20.0	40.00	20.00	GEAIR-20	64.00	1
C4 GHAIL-25	40.00	25.0	45.00	20.00	GEAIL-25	69.00	1
C4 GHAIR-25	40.00	25.0	45.00	20.00	GEAIR-25	71.40	1
C4 GHAIL-32	40.00	32.0	52.00	20.00	GAIL-32	76.00	1
C4 GHAIR-32	40.00	32.0	52.00	20.00	GAIR-32	76.00	1
C5 GHAIL-20	50.00	20.0	40.00	25.00	GEAIL-20	70.00	1
C5 GHAIR-20	50.00	20.0	40.00	25.00	GEAIR-20	70.00	1
C5 GHAIL-25	50.00	25.0	45.00	25.00	GEAIL-25	75.00	1
C5 GHAIR-25	50.00	25.0	45.00	25.00	GEAIR-25	75.00	1
C5 GHAIL-40	50.00	40.0	60.00	25.00	GEAIL-40	90.00	1
C5 GHAIR-40	50.00	40.0	60.00	25.00	GEAIR-40	90.00	1
C6 GHAIL-25	63.00	25.0	47.00	31.50	GEAIL-25	85.00	1
C6 GHAIR-25	63.00	25.0	47.00	31.50	GEAIR-25	85.00	1
C6 GHAIL-40	63.00	40.0	62.00	31.50	GAIL-40	100.00	1
C6 GHAIR-40	63.00	40.0	62.00	31.50	GAIR-40	100.00	1

(1) 1 - Hole for data chip, 0 - Without hole for data chip

For tools, see pages: GAIR/L (346) GEAIR/L (340)
