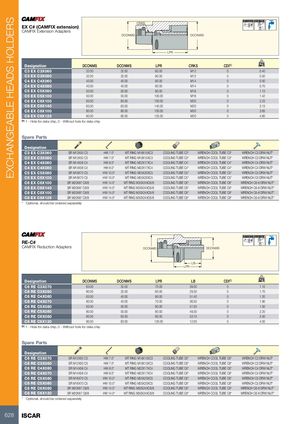

| EX C# (CAMFIX extension) CAMFIX Extension Adapters | DCONMS | DCONWS CRKS | A 0.003 A 58-60 HRc | ||
| LPR | |||||
| Designation | DCONMS | DCONWS | LPR CRKS | CDI(1) | kg |
| C3 EX C3X060 | 32.00 | 32.00 | 60.00 M12 | 0 | 0.40 |
| C3 EX C3X080 | 32.00 | 32.00 | 80.00 M12 | 0 | 0.50 |
| C4 EX C4X060 | 40.00 | 40.00 | 60.00 M14 | 0 | 0.50 |
| C4 EX C4X080 | 40.00 | 40.00 | 80.00 M14 | 0 | 0.70 |
| C5 EX C5X080 | 50.00 | 50.00 | 80.00 M16 | 0 | 1.13 |
| C5 EX C5X100 | 50.00 | 50.00 | 100.00 M16 | 0 | 1.42 |
| C6 EX C6X100 | 63.00 | 63.00 | 100.00 M20 | 0 | 2.23 |
| C6 EX C6X140 | 63.00 | 63.00 | 140.00 M20 | 0 | 3.13 |
| C8 EX C8X100 | 80.00 | 80.00 | 100.00 M20 | 0 | 3.65 |
| C8 EX C8X125 | 80.00 | 80.00 | 125.00 M20 | 0 | 4.60 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | ||||||
| C3 EX C3X060 | SR M12X50 C3 | HW 7.0 | MT RING M18X15XC3 | COOLING TUBE C3 | WRENCH COOL TUBE C3 | WRENCH C3 DRW NUT |
| C3 EX C3X080 | SR M12X50 C3 | HW 7.0 | MT RING M18X15XC3 | COOLING TUBE C3 | WRENCH COOL TUBE C3 | WRENCH C3 DRW NUT |
| C4 EX C4X060 | SR M14X58 C4 | HW 8.0 | MT RING M22X17XC4 | COOLING TUBE C4 | WRENCH COOL TUBE C4 | WRENCH C4 DRW NUT |
| C4 EX C4X080 | SR M14X58 C4 | HW 8.0 | MT RING M22X17XC4 | COOLING TUBE C4 | WRENCH COOL TUBE C4 | WRENCH C4 DRW NUT |
| C5 EX C5X080 | SR M16X70 C5 | HW 10.0 | MT RING M25X20XC5 | COOLING TUBE C5 | WRENCH COOL TUBE C5 | WRENCH C5 DRW NUT |
| C5 EX C5X100 | SR M16X70 C5 | HW 10.0 | MT RING M25X20XC5 | COOLING TUBE C5 | WRENCH COOL TUBE C5 | WRENCH C5 DRW NUT |
| C6 EX C6X100 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE C6 | WRENCH COOL TUBE C6 | WRENCH C6-8 DRW NUT |
| C6 EX C6X140 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE C6 | WRENCH COOL TUBE C6 | WRENCH C6-8 DRW NUT |
| C8 EX C8X100 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C6-8 DRW NUT |
| C8 EX C8X125 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C6-8 DRW NUT |
* Optional, should be ordered separately
| E-C# AMFIX Reduction Adapters | DCONWS DCONMS LPR LB | A 0.003 A 58-60 HRc | ||
| Designation | DCONMS | DCONWS | LPR LB CDI(1) | kg |
| C6 RE C3X070 | 63.00 | 32.00 | 70.00 39.00 0 | 1.10 |
| C8 RE C3X060 | 80.00 | 32.00 | 60.00 29.30 0 | 1.70 |
| C6 RE C4X080 | 63.00 | 40.00 | 80.00 51.40 0 | 1.20 |
| C8 RE C4X070 | 80.00 | 40.00 | 70.00 36.50 0 | 1.90 |
| C6 RE C5X080 | 63.00 | 50.00 | 80.00 51.50 0 | 1.50 |
| C8 RE C5X080 | 80.00 | 50.00 | 80.00 49.30 0 | 2.20 |
| C8 RE C6X080 | 80.00 | 63.00 | 80.00 53.10 0 | 2.50 |
| C8 RE C6X120 | 80.00 | 63.00 | 120.00 12.00 0 | 4.00 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
| Designation | ||||||
| C6 RE C3X070 | SR M12X50 C3 | HW 7.0 | MT RING M18X15XC3 | COOLING TUBE C6 | WRENCH COOL TUBE C6 | WRENCH C3 DRW NUT |
| C8 RE C3X060 | SR M12X50 C3 | HW 7.0 | MT RING M18X15XC3 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C3 DRW NUT |
| C6 RE C4X080 | SR M14X58 C4 | HW 8.0 | MT RING M22X17XC4 | COOLING TUBE C6 | WRENCH COOL TUBE C6 | WRENCH C4 DRW NUT |
| C8 RE C4X070 | SR M14X58 C4 | HW 8.0 | MT RING M22X17XC4 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C4 DRW NUT |
| C6 RE C5X080 | SR M16X70 C5 | HW 10.0 | MT RING M25X20XC5 | COOLING TUBE C6 | WRENCH COOL TUBE C6 | WRENCH C5 DRW NUT |
| C8 RE C5X080 | SR M16X70 C5 | HW 10.0 | MT RING M25X20XC5 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C5 DRW NUT |
| C8 RE C6X080 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C6-8 DRW NUT |
| C8 RE C6X120 | SR M20X87 C6/8 | HW 14.0 | MT RING M30X24XC6/8 | COOLING TUBE C8 | WRENCH COOL TUBE C8 | WRENCH C6-8 DRW NUT |
