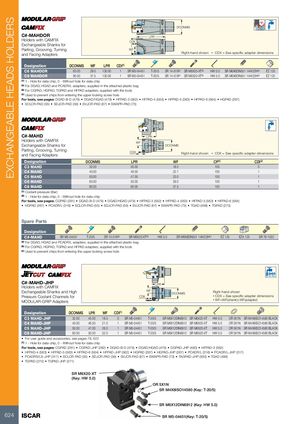

Каталог Iscar отрезка 2022 - страница 166
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| C#-MAHDOR Holders with CAMFIX Exchangeable Shanks for Parting, Grooving, Turning and Facing Adapters | CDX WF | LPR | DCO | NMS Right-hand shown | •CDX | = See specific adapter dim | ensions | ||||
| Designation | DCONMS | WF | LPR | CDI(1) | |||||||
| C6 MAHDOR | 63.00 | 29.0 | 130.00 | 1 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN551 14H/22H(c) | EZ 125 |
| C8 MAHDOR | 80.00 | 37.5 | 130.00 | 1 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN551 14H/22H(c) | EZ 125 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole
For tools, see pages: DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564) HGPAD (267)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
| C#-MAHD Holders with CAMFIX Exchangeable Shanks for Parting, Grooving, Turning and Facing Adapters | DCONMS WF CDX LPR Right-ha | nd shown•CDX = See spe | cific adapter dimensions | |
| Designation | DCONMS | LPR WF | CP(1) | CDI(2) |
| C3 MAHD | 32.00 | 50.00 18.5 | 100 | 0 |
| C4 MAHD | 40.00 | 46.50 22.1 | 100 | 1 |
| C5 MAHD | 50.00 | 47.00 23.0 | 100 | 1 |
| C6 MAHD | 63.00 | 50.00 29.0 | 100 | 1 |
| C8 MAHD | 80.00 | 60.00 37.5 | 100 | 1 |
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
Spare Parts
Designation
C#-MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole
| Bar Max | |||||||||||
| C#-MAHD-JHP Holders with CAMFIX Exchangeable Shanks an Pressure Coolant Chann MODULAR-GRIP Adapte | d High els for rs | CDX | LPR WF | DCONMS | Right-ha •CDX = •WF=W | nd shown See specifi F(shank)+W | c adapter dimensions F(adapter) | ||||
| Designation | DCONMS | LPR | WF | CDI(1) | |||||||
| C3 MAHD-JHP | 32.00 | 45.00 | 18.5 | 0 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
| C4 MAHD-JHP | 40.00 | 46.50 | 21.0 | 1 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
| C5 MAHD-JHP | 50.00 | 47.00 | 26.0 | 1 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
| C6 MAHD-JHP | 63.00 | 50.00 | 32.5 | 1 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
- For user guide and accessories, see pages 78, 622
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) CGPAD-JHP (282) DGAD-B-D (479) DGAD/HGAD (479) DGPAD-JHP (480) HFPAD-3 (562)
- HFPAD-4 (563)
- HFPAD-5 (563)
- HFPAD-6 (564)
- HFPAD-JHP (562)
- HGPAD (267)
- HGPAD-JHP (267)
- PCADR/L (316)
- PCADR/L-JHP (317)
- PCADRS/LS-JHP (317)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TAGPAD-JHP (500)
- TGAD (498)
- TGPAD (270)
- TGPAD-JHP (271)
SR M6X20-XT (Key: HW 5.0) OR 5X1N SR M4X8ISO14580 (Key: T-20/5)
SR M6X12DIN6912 (Key: HW 5.0) SR M5-04451(Key: T-20/5)
