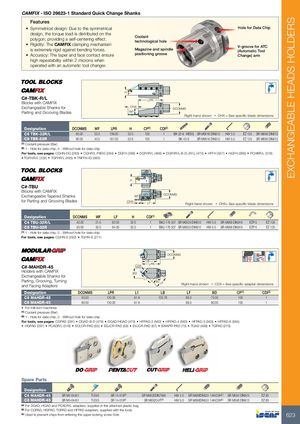

CAMFIX - ISO 26623-1 Standard Quick Change Shanks
Features
- Symmetrical design: Due to the symmetrical Hole for Data Chip design, the torque load is distributed on the
Coolant polygon, providing a self-centering effect. technological hole
- Rigidity: The CAMFIX clamping mechanism
V-groove for ATC
| is extremely rigid against bending forces. | Magazine and spindle | (Automatic Tool | |
| • Accuracy: The taper and face contact ensure | positioning groove | Change) arm |
high repeatability within 2 microns when operated with an automatic tool changer.
| H | ||||||||||
| C#-TBK-R/L Blocks with CAMFIX Exchangeable Shanks for Parting and Grooving Blades | OHX WF | LPR | DCONMS Right- | hand shown•OHX | = See sp | ecific blad | e dimensions | |||
| Designation | DCONMS | WF | LPR | H | CP(1) CDI(2) | |||||
| C6 TBK-32R/L | 63.00 | 32.0 | 138.00 | 32.0 | 100 1 | BK 32-9 WEDG | SR M6X16 DIN912 | HW 5.0 | EZ 125 | SR M8X6 DIN913 |
| C8 TBK-52R | 80.00 | 40.5 | 161.00 | 52.0 | 100 1 | BK 40-9 | SR M6X16 DIN912 | HW 5.0 | EZ 125 | SR M8X6 DIN913 |
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-DG (283) CGHR/L-P8DG (284) DGFH (268) DGFHR/L (468) DGFHR/L-B-D..(R/L) (470) HFFH (557) HGFH (268) PCHBR/L (318)
- TGFH/R/L (332)
- TGFHR/L (495)
- TNFFH-IQ (583)
| H | ||||||||||
| C#-TBU Blocks with CAMFIX Exchangeable Tapered S for Parting and Grooving | hanks Blades | OHX WF | DCONMS LF | Right-hand s | hown• | OHX= See specifi | c blade dim | ensions | ||
| Designation | DCONMS | WF | LF | H | CDI(1) | |||||
| C4 TBU-32R/L | 40.00 | 21.0 | 60.00 | 32.0 | 1 BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X8 DIN916 | EZP 5 | EZ 125 |
| C5 TBU-32R | 50.00 | 30.0 | 64.00 | 32.0 | 1 BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X8 DIN916 | EZP 5 | EZ 125 |
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-S (282) TGHN-S (271)
| LB DCO | NMS | 45 | ° 45º | ||||
| C#-MAHDR-45 Holders with CAMFIX Exchangeable Shanks for | L LPR CDX BD | ||||||
| Parting, Grooving, Turning and Facing Adapters | LF 1 45° | Right-hand shown | •CDX = S | ee specific ada | pter dimensions | ||
| Designation | DCONMS | LPR | L1 LB | LF | BD | CP(1) | CDI(2) |
| C6 MAHDR-45 | 63.00 | 130.00 | 91.9 105.78 | 89.0 | 75.00 | 100 | 1 |
| C8 MAHDR-45 | 80.00 | 130.00 | 91.9 - | 89.0 | 80.00 | 100 | 1 |
- For mill-turn machines
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
Spare Parts
| Designation | ||||||||
| C6 MAHDR-45 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20DIN7984 | HW 4.0 | SR M6X6DIN551 14H/22H(c) | SR M5X4 DIN913 | EZ 83 |
| C8 MAHDR-45 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN551 14H/22H(c) | SR M5X6 DIN913 | EZ 83 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole 623
