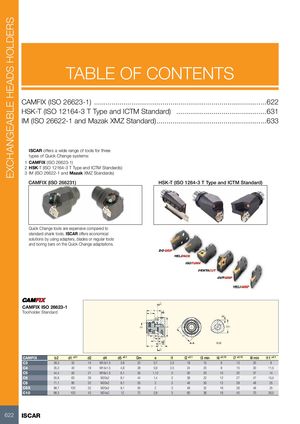

EXCHANGEABLE HEADS HOLDERS TABLE OF CONTENTS CAMFIX (ISO 26623-1) .........................................................................................622 HSK-T (ISO 12164-3 T Type and ICTM Standard) ...............................................631 IM (ISO 26622-1 and Mazak XMZ Standard).........................................................633 ISCAR offers a wide range of tools for three types of Quick Change systems: 1 CAMFIX (ISO 26623-1) 2 HSK-T (ISO 12164-3 T Type and ICTM Standards) 3 IM (ISO 26622-1 and Mazak XMZ Standards) CAMFIX (ISO 266231) HSK-T (ISO 1264-3 T Type and ICTM Standard) Quick Change tools are expensive compared to standard shank tools. ISCAR offers economical solutions by using adapters, blades or regular tools and boring bars on the Quick Change adaptations. C CAMFIX ISO 26623-1 Toolholder Standard l8 Al7 2e d4 d2 d1 Dm d5 b2 l1 l11 A l6 A-A C-C l2 l3 C CAMFIX b2 d1 ±0.1 d2 d4 d5 ±0.1 Dm e l1 l2 ±0.1 l3 min l6 ±0.15 l7 ±0.15 l8 min l11 ±0.1 C3 28,3 32 15 M12x1.5 3,6 22 0,7 2,5 19 15 6 13 25 8 C4 35,3 40 18 M14x1.5 4,6 28 0,9 2,5 24 20 8 15 30 11,5 C5 44,4 50 21 M16x1.5 6,1 35 1,12 3 30 20 10 20 37 14 C6 55,8 63 28 M20x2 8,1 44 1,4 3 38 22 12 27 47 15,5 C8 71,1 80 32 M20x2 9,1 55 2 3 48 30 12 28 48 25 C8X 88,7 100 32 M20x2 9,1 55 2 3 48 32 16 28 48 25 C10 88,3 100 43 M24x2 12 72 2,8 3 60 36 16 40 70 26,5 622 ISCAR
