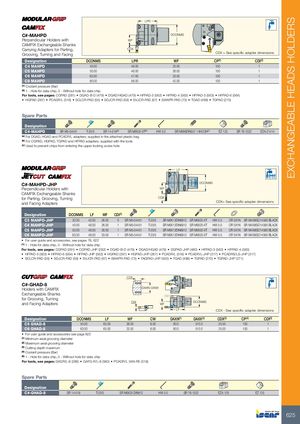

| LPR | |||||
| C#-MAHPD Perpendicular Holders with CAMFIX Exchangeable Shanks Carrying Adapters for Parting, Grooving, Turning and Facing | WF CDX | DCONMS | CDX = See spe | cific adapter dimensions | |
| Designation | DCONMS | LPR | WF | CP(1) | CDI(2) |
| C4 MAHPD | 40.00 | 46.00 | 25.00 | 100 | 1 |
| C5 MAHPD | 50.00 | 46.00 | 26.00 | 100 | 1 |
| C6 MAHPD | 63.00 | 47.00 | 33.00 | 100 | 1 |
| C8 MAHPD | 80.00 | 56.00 | 42.00 | 100 | 1 |
(1) Coolant pressure (Bar) (2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) DGAD-B-D (479) DGAD/HGAD (479) HFPAD-3 (562) HFPAD-4 (563) HFPAD-5 (563) HFPAD-6 (564)
- HGPAD (267)
- PCADR/L (316)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TGAD (498)
- TGPAD (270)
| Spare Parts | |||||||||
| Designation | |||||||||
| C#-MAHPD | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN551 14H/22H(c) | EZ 125 | SR 76-1022 | EZA-21414 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole
| LF | Bar Max | ||||||||||
| C#-MAHPD-JHP | DCONM | S | |||||||||
| Perpendicular Holders w | ith | WF | |||||||||
| CAMFIX Exchangeable for Parting, Grooving, Tu and Facing Adapters | Shanks rning | CDX | CDX= | See specifi | c adapter dimensions | ||||||
| Designation | DCONMS | LF | WF | CDI(1) | |||||||
| C3 MAHPD-JHP | 32.00 | 40.00 | 26.00 | 0 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
| C4 MAHPD-JHP | 40.00 | 46.00 | 26.00 | 1 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
| C5 MAHPD-JHP | 50.00 | 46.00 | 26.00 | 1 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
| C6 MAHPD-JHP | 63.00 | 46.00 | 33.00 | 1 | SR M5-04451 | T-20/5 | SR M6X12DIN6912 | SR M6X20-XT | HW 5.0 | OR 5X1N | SR M4X8ISO14580 BLACK |
- For user guide and accessories, see pages 78, 622
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) CGPAD-JHP (282) DGAD-B-D (479) DGAD/HGAD (479) DGPAD-JHP (480) HFPAD-3 (562) HFPAD-4 (563)
- HFPAD-5 (563)
- HFPAD-6 (564)
- HFPAD-JHP (562)
- HGPAD (267)
- HGPAD-JHP (267)
- PCADR/L (316)
- PCADR/L-JHP (317)
- PCADRS/LS-JHP (317)
- SCLCR-PAD (55)
- SDJCR-PAD (59)
- SVJCR-PAD (67)
- SWAPR-PAD (73)
- TAGPAD-JHP (500)
- TGAD (498)
- TGPAD (270)
- TGPAD-JHP (271)
| C#-GHAD-8 Holders with CAMFIX Exchangeable Shanks for Grooving, Turning and Facing Adapters | CW DAXN-DAXX CDX | WF LF | DCONMS | CDX - See s | pecific adapte | r dimensions | ||
| Designation | DCONMS | LF | WF CW | DAXN(1) | DAXX(2) | CDX(3) | CP(4) | CDI(5) |
| C5 GHAD-8 | 50.00 | 65.00 | 26.00 8.00 | 80.0 | 510.0 | 25.00 | 100 | 1 |
| C6 GHAD-8 | 63.00 | 65.00 | 32.50 8.00 | 80.0 | 510.0 | 25.00 | 100 | 1 |
- For user guide and accessories see page 622
(1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Cutting depth maximum (4) Coolant pressure (Bar) (5) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: GADR/L-8 (286) GAFG-R/L-8 (580) PCADR/L 34N-RE (318)
Spare Parts
| Designation | |||
| C#-GHAD-8 | SR 14-519 | T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 EZA 125 | EZ 125 |
