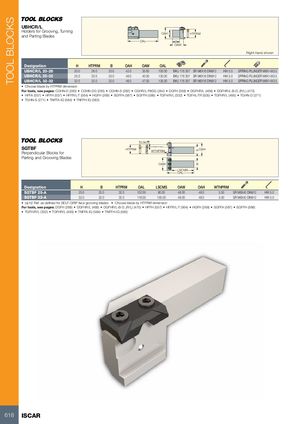

TOOL BLOCKS UBHCR/L Holders for Grooving, Turning OAH H HTPRM and Parting Blades OAL B OAW Right-hand shown Designation H HTPRM B OAH OAW OAL UBHCR/L 20-26 20.0 26.0 20.0 42.0 35.60 100.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5 UBHCR/L 25-32 25.0 32.0 25.0 46.0 40.00 130.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5 UBHCR/L 32-32 32.0 32.0 32.0 46.0 47.00 130.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5 • Choose blade by HTPRM dimension For tools, see pages: CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFA (557) • HFFH (557) • HFFR/L-T (564) • HGFH (268) • SGFFA (587) • SGFFH (588) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGHN-D (271) • TGHN-S (271) • TNFFA-IQ (584) • TNFFH-IQ (583) h2 Ref.(a) SGTBFPerpendicular Blocks for HTPRM WTHPRM H OAH Parting and Grooving Blades OAW B LSCMS OAL Designation H B HTPRM OAL LSCMS OAW OAH WTHPRM SGTBF 25-A 25.0 25.0 32.0 102.00 80.00 48.00 48.0 5.50 SR M6X40 DIN912 HW 5.0 SGTBF 32-A 32.0 32.0 32.0 116.00 100.00 48.00 48.0 5.50 SR M6X40 DIN912 HW 5.0 • (a) h2 Ref. as defined for SELF-GRIP face grooving blades • Choose blade by HTPRM dimension For tools, see pages: DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFH (557) • HFFR/L-T (564) • HGFH (268) • SGFFA (587) • SGFFH (588) • TGFH/R/L (332) • TGFHR/L (495) • TNFFA-IQ (584) • TNFFH-IQ (583) 618 ISCAR
