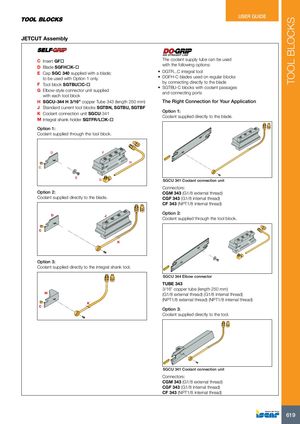

JETCUT Assembly

CInsert GF
DBlade SGFHK-
ECap SGC 340 supplied with a blade;
to be used with Option 1 only.
FTool block SGTBUC-
GElbow-style connector unit supplied
with each tool block
HSGCU-344 H 3/16” copper Tube 343 (length 250 mm)
JStandard current tool blocks SGTBN, SGTBU, SGTBF
KCoolant connection unit SGCU-341

M Integral shank holder SGTFR/LK- Option 1: Coolant supplied through the tool block.

The coolant supply tube can be used with the following options:

  • DGTR...C integral tool
  • DGFH-C blades used on regular blocks by connecting directly to the blade
  • SGTBU-C blocks with coolant passages and connecting ports The Right Connection for Your Application Option 1: Coolant supplied directly to the blade.

D F

C E G Option 2: Coolant supplied directly to the blade.

D J

C

K

H

SGCU 341 Coolant connection unit Connectors: CGM 343 (G1/8 external thread) CGF 343 (G1/8 internal thread) CF 343 (NPT1/8 internal thread) Option 2: Coolant supplied through the tool block.

Option 3: Coolant supplied directly to the integral shank tool.

M K C

SGCU 344 Elbow connector TUBE 343 3/16” copper tube (length 250 mm) (G1/8 external thread) (G1/8 internal thread) (NPT1/8 external thread) (NPT1/8 internal thread) Option 3: Coolant supplied directly to the tool.

SGCU 341 Coolant connection unit Connectors: CGM 343 (G1/8 external thread) CGF 343 (G1/8 internal thread) CF 343 (NPT1/8 internal thread)
