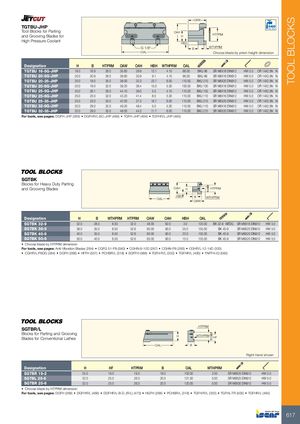

| OAW | ||||||||||||
| TGTBU-JHP | Bar Max | |||||||||||
| Tool Blocks for Parting | OAH | |||||||||||
| and Grooving Blades for | H | HTPRM | ||||||||||
| High Pressure Coolant | HBH | |||||||||||
| G 1 | /8" | B | WTHPRM | |||||||||
| OAL | Choose blade by | prism heig | ht dimension | |||||||||
| Designation | H | B | HTPRM | OAW | OAH | HBH | WTHPR | M OAL | ||||
| TGTBU 16-5G-JHP | 16.0 | 16.9 | 26.0 | 35.60 | 29.9 | 13.1 | 4.10 | 86.00 | BKU 86 | SR M6X16 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 20-5G-JHP | 20.0 | 20.9 | 26.0 | 39.60 | 33.9 | 9.1 | 4.10 | 86.00 | BKU 86 | SR M6X16 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 20-35-JHP | 20.0 | 19.0 | 35.0 | 38.00 | 32.3 | 23.7 | 6.00 | 110.00 | BKU 210 | SR M6X20 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 20-6G-JHP | 20.0 | 19.0 | 32.0 | 39.20 | 36.4 | 15.0 | 5.30 | 100.00 | BKU 100 | SR M6X16 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 25-5G-JHP | 25.0 | 26.1 | 26.0 | 44.10 | 39.0 | 5.5 | 4.10 | 110.00 | BKU 105 | SR M6X16 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 25-6G-JHP | 25.0 | 23.0 | 32.0 | 43.20 | 41.4 | 8.0 | 5.30 | 110.00 | BKU 110 | SR M6X16 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 25-35-JHP | 25.0 | 23.0 | 35.0 | 42.00 | 37.3 | 18.7 | 6.00 | 110.00 | BKU 210 | SR M6X20 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 32-6G-JHP | 32.0 | 29.0 | 32.0 | 49.20 | 48.4 | 5.0 | 5.30 | 110.00 | BKU 110 | SR M6X16 DIN912 | HW 5.0 | OR 14X2.5N N |
| TGTBU 32-35-JHP | 32.0 | 29.0 | 35.0 | 48.00 | 44.3 | 11.7 | 6.00 | 110.00 | BKU 210 | SR M6X20 DIN912 | HW 5.0 | OR 14X2.5N N |
For tools, see pages: DGFH-JHP (269) DGFHR/L-BC-JHP (469) TGFH-JHP (494) TGFHR/L-JHP (495)
SGTBK
Blocks for Heavy Duty Parting
and Grooving Blades
OAL
OAH H HTPRM
HBH B WTHPRM
OAW
| Designation | H | B | WTHPRM | HTPRM | OAW | OAH | HBH | OAL | |||||
| SGTBK 32-9 | 32.0 | 28.0 | 8.50 | 32.0 | 48.00 | 62.0 | 3.0 | 120.00 | BK 32-9 WEDG SR M6X16 DIN912 | HW 5.0 | |||
| SGTBK 38-9 | 38.0 | 35.0 | 8.50 | 52.6 | 60.00 | 90.0 | 25.0 | 135.00 | BK 40-9 | SR M6X20 DIN912 | HW 5.0 | ||
| SGTBK 40-9 | 40.0 | 35.0 | 8.50 | 52.6 | 60.00 | 90.0 | 23.0 | 135.00 | BK 40-9 | SR M6X20 DIN912 | HW 5.0 | ||
| SGTBK 50-9 | 50.0 | 40.0 | 8.50 | 52.6 | 65.00 | 90.0 | 15.0 | 135.00 | BK 40-9 | SR M6X20 DIN912 | HW 5.0 |
- Choose blade by HTPRM dimension
For tools, see pages: Anti-Vibration Blades (284) CGFG 51-P8 (580) CGHN-8-10D (287) CGHN-P8 (283) CGHR/L-12-14D (333)
- CGHR/L-P8DG (284)
- DGFH (268)
- HFFH (557)
- PCHBR/L (318)
- SGFFH (588)
- TGFH/R/L (332)
- TGFHR/L (495)
- TNFFH-IQ (583)
SGTBR/L HTPRM
Blocks for Parting and Grooving
H WTHPRM Blades for Conventional Lathes HF OAL B Right-hand shown
| Designation | H | HF | HTPRM | B | OAL | WTHPRM | |||
| SGTBR 19-2 | 25.0 | 19.0 | 19.0 | 19.0 | 100.00 | 2.00 | SR M6X25 DIN912 | HW 5.0 | |
| SGTBL 25-6 | 32.0 | 25.0 | 26.0 | 20.0 | 121.50 | 5.00 | SR M6X25 DIN912 | HW 5.0 | |
| SGTBR 25-6 | 32.0 | 25.0 | 26.0 | 20.0 | 120.00 | 5.00 | SR M6X30 DIN912 | HW 5.0 |
- Choose blade by HTPRM dimension
For tools, see pages: DGFH (268) DGFHR/L (468) DGFHR/L-B-D..(R/L) (470) HGFH (268) PCHBR/L (318) TGFH/R/L (332) TGFHL-TR (505) TGFHR/L (495)
