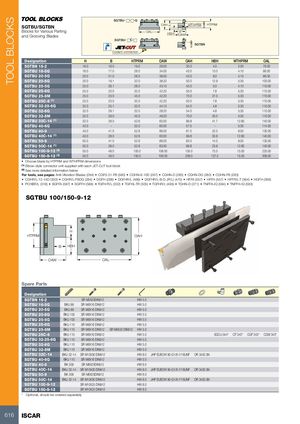

TOOL BLOCKS SGTBU- --G SGTBU/SGTBN OAH H WTHPRM HTPRM Blocks for Various Partingand Grooving Blades OAL BHBHOAW SGTBU- C- SGTBN Coolant connection Designation H B HTPRM OAW OAH HBH WTHPRM OAL SGTBN 16-2 16.0 16.0 19.0 26.00 30.0 4.0 2.00 76.00 SGTBU 16-5G 16.0 17.0 26.0 34.00 43.0 13.0 4.10 86.00 SGTBU 20-5G 20.0 21.0 26.0 38.00 43.0 9.0 4.10 86.00 SGTBU 20-6G 20.0 19.1 32.0 38.20 50.0 12.9 5.30 100.00 SGTBU 25-5G 25.0 26.1 26.0 43.10 45.0 5.0 4.10 110.00 SGTBU 25-6G 25.0 23.0 32.0 42.20 50.0 7.8 5.30 110.00 SGTBU 25-8M 25.0 23.0 45.0 42.20 70.0 27.0 5.30 110.00 SGTBU 25C-6 (1) 25.0 23.0 32.0 42.20 50.0 7.8 5.30 110.00 SGTBU 32-25-6G 32.0 25.1 32.0 44.15 54.0 4.8 5.30 110.00 SGTBU 32-6G 32.0 29.1 32.0 28.20 54.0 4.8 5.30 110.00 SGTBU 32-8M 32.0 29.0 45.0 48.20 70.0 20.0 5.30 110.00 SGTBU 32C-14 (1) 32.0 28.0 52.6 63.00 99.8 41.7 12.60 140.00 SGTBU 40-6G 40.0 - 32.0 60.00 57.0 - 5.30 114.00 SGTBU 40-9 40.0 41.0 52.6 66.00 81.0 22.0 8.00 130.00 SGTBU 40C-14 (1) 40.0 28.0 52.6 63.00 99.8 33.8 12.60 140.00 SGTBU 50-9 50.0 41.0 52.6 66.00 83.0 14.0 8.00 135.00 SGTBU 50C-14 (1) 50.0 28.0 52.6 63.00 99.8 23.8 12.60 140.00 SGTBU 100-9-12 (2) 50.0 49.0 100.0 106.00 155.0 73.5 15.00 225.00 SGTBU 150-9-12 (2) 50.0 49.0 150.0 106.00 209.0 127.5 15.00 306.00 • Choose blade by HTPRM and WTHPRM dimensions (1) Elbow-style connector unit supplied with each JET-CUT tool block (2) See more detailed information below For tools, see pages: Anti-Vibration Blades (284) • CGFG 51-P8 (580) • CGHN-8-10D (287) • CGHN-D (283) • CGHN-DG (283) • CGHN-P8 (283) • CGHR/L-12-14D (333) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFA (557) • HFFH (557) • HFFR/L-T (564) • HGFH (268) • PCHBR/L (318) • SGFFA (587) • SGFFH (588) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495) • TGHN-D (271) • TNFFA-IQ (584) • TNFFH-IQ (583) SGTBU 100/150-9-12 H HTPRM OAH B HBH OAW OAL Spare Parts Designation SGTBN 16-2 SR M5X20DIN912 HW 4.0 SGTBU 16-5G BKU 86 SR M6X16 DIN912 HW 5.0 SGTBU 20-5G BKU 86 SR M6X16 DIN912 HW 5.0 SGTBU 20-6G BKU 100 SR M6X16 DIN912 HW 5.0 SGTBU 25-5G BKU 105 SR M6X16 DIN912 HW 5.0 SGTBU 25-6G BKU 110 SR M6X16 DIN912 HW 5.0 SGTBU 25-8M BKU 110 SR M6X16 DIN912 SR M6X30 DIN912 HW 5.0 SGTBU 25C-6 BKU 110 SR M6X16 DIN912 HW 5.0 SGCU-344* CF 343* CGF 343* CGM 343* SGTBU 32-25-6G BKU 110 SR M6X16 DIN912 HW 5.0 SGTBU 32-6G BKU 110 SR M6X16 DIN912 HW 5.0 SGTBU 32-8M BKU 110 SR M6X16 DIN912 HW 5.0 SGTBU 32C-14 BKU 32-14 SR M10X30 DIN912 HW 8.0 JHP ELBOW 90-G1/8-7/16UNF OR 34X2.5N SGTBU 40-6G BKU 110 SR M6X16 DIN912 HW 5.0 SGTBU 40-9 BK 509 SR M8X25DIN912 HW 6.0 SGTBU 40C-14 BKU 32-14 SR M10X30 DIN912 HW 8.0 JHP ELBOW 90-G1/8-7/16UNF OR 34X2.5N SGTBU 50-9 BK 509 SR M8X25DIN912 HW 6.0 SGTBU 50C-14 BKU 32-14 SR M10X30 DIN912 HW 8.0 JHP ELBOW 90-G1/8-7/16UNF OR 34X2.5N SGTBU 100-9-12 SR M10X25 DIN912 HW 8.0 SGTBU 150-9-12 SR M10X25 DIN912 HW 8.0 * Optional, should be ordered separately 616 ISCAR
