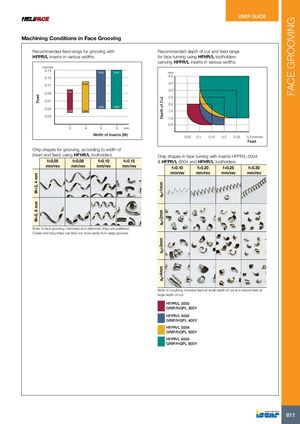

Machining Conditions in Face Grooving
Recommended feed range for grooving with
HFPR/L inserts in various widths. mm/rev 0.15 0.15 0.15 0.13 0.12 0.11 0.09 0.1 0.07
| 0.05 | 0.05 | 0.05 | |||
| 0.04 | 0.04 | ||||
| 0.03 | |||||
| 3 | 4 | 5 | 6 | mm |
Width of Inserts (W)
Chip shapes for grooving, according to width of
insert and feed, using HFHR/L toolholders.
| f=0.05 | f=0.08 | f=0.10 | f=0.15 |
| mm/rev | mm/rev | mm/rev | mm/rev |
Recommended depth of cut and feed range
for face turning using HFHR/L toolholders
carrying HFPR/L inserts in various widths. mm 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5
| 0.05 0.1 | 0.15 0.2 | 0.25 0.3 mm/rev | ||
| Feed | ||||
| Chip shapes in face turning with inserts HFPR/L-5004 | ||||
| & HFPR/L 6004 and HFHR/L toolholders. | ||||
| f=0.10 | f=0.20 | f=0.25 | f=0.30 | |
| mm/rev | mm/rev | mm/rev | mm/rev |
Note: In face grooving, narrowed and deformed chips are preferred. Curled and long chips can flow out more easily from deep grooves.
Note: In roughing, increase feed at small depth of cut and reduce feed at large depth of cut.
