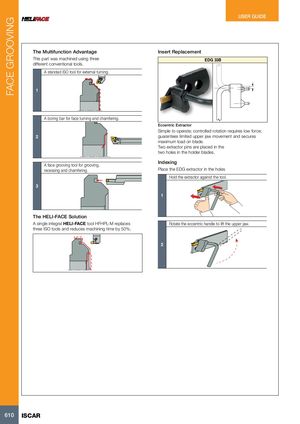

FACE GROOVING USER GUIDE The Multifunction Advantage Insert Replacement This part was machined using three EDG 33B different conventional tools. A standad ISO tool for external turning. 1 A boring bar for face turning and chamfering. Eccentric Extractor Simple to operate; controlled rotation requires low force; 2 guarantees limited upper jaw movement and secures maximum load on blade. Two extractor pins are placed in the two holes in the holder blades. A face grooving tool for grooving, Indexing recessing and chamfering. Place the EDG extractor in the holes Hold the extractor against the tool. 3 1 The HELI-FACE Solution A single integral HELI-FACE tool HFHPL-M replaces Rotate the eccentric handle to lift the upper jaw. three ISO tools and reduces machining time by 50%. 2 610 ISCAR
