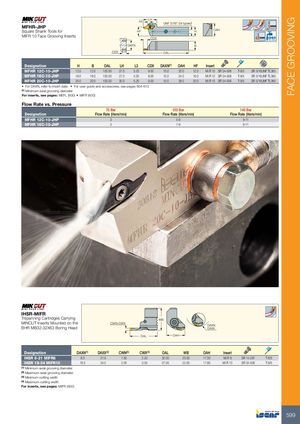

Каталог Iscar отрезка 2022 - страница 141
Навигация
Токарные инструменты Iscar (часть 1) 2026
Каталог Iscar монолитные фрезы 2022
Инструменты для обработки отверстий Iscar 2026
Каталог Iscar резьбонарезные фрезы
Каталог Iscar расточные системы
Каталог Iscar токарный инструмент 2017
| MFHR-JHP Square Shank Tools for MIFR 10 Face Grooving Inserts | CD | D X | L3 AXN HF | LH CDX | OAL UNF 5/1 | 6”-24 typ | H ex3 B | OA | H | Bar Max | |||
| Designation H | B | OAL | LH | L3 | CDX | DAXN(1) | OAH | HF | Insert | ||||
| MFHR 12C-10-JHP 12.0 | 12.0 | 100.00 | 27.0 | 5.20 | 9.00 | 10.0 | 20.0 | 12.0 | MI.R 10 | SR 34-506 | T-9/5 | SR 5/16UN | F TL360 |
| MFHR 16C-10-JHP 16.0 | 16.0 | 100.00 | 27.0 | 5.20 | 9.00 | 10.0 | 24.0 | 16.0 | MI.R 10 | SR 34-506 | T-9/5 | SR 5/16UN | F TL360 |
| MFHR 20C-10-JHP 20.0 | 20.0 | 100.00 | 30.0 | 5.20 | 9.00 | 10.0 | 28.0 | 20.0 | MI.R 10 | SR 34-506 | T-9/5 | SR 5/16UN | F TL360 |
- For DAXN, refer to insert data
- For user guide and accessories, see pages 604-613
(1) Minimum axial grooving diameter
For inserts, see pages: MEFL (600) MIFR (600)
Flow Rate vs. Pressure
| Designation | 70 Bar Flow Rate(liters/min) | 100 Bar Flow Rate(liters/min) | 140 Bar Flow Rate(liters/min) |
| MFHR 12C-10-JHP | 3 | 5-9 | 9-11 |
| MFHR 16C-10-JHP | 3 | 7-9 | 9-11 |
| IHSR-MIFR Trepanning Cartridges Carrying MINCUT Inserts Mounted on the | C | WN-CWX | WB | DAXN | ||||||
| BHR MB32-32X63 Boring Head | DAXX | |||||||||
| OAL | OAH | |||||||||
| Designation D | AXN(1) | DAXX(2) | CWN(3) | CWX(4) | OAL | WB | OAH | Insert | ||
| IHSR 8-21 MIFR8 | 8.0 | 21.0 | 1.50 | 2.20 | 32.00 | 23.00 | 17.50 | MI.R 8 | SR 14-297 | T-8/5 |
| IHSR 19-34 MIFR10 | 19.0 | 34.0 | 2.00 | 3.00 | 27.00 | 22.00 | 17.80 | MI.R 10 | SR 34-506 | T-9/5 |
(1) Minimum axial grooving diameter (2) Maximum axial grooving diameter (3) Minimum cutting width (4) Maximum cutting width
For inserts, see pages: MIFR (600)
