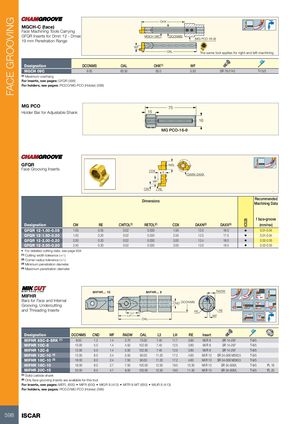

OHX
MGCH-C (face)
Face Machining Tools Carrying
| GFQR Inserts for Dmin 12 - Dmax | MGCH 09C | DCONMS | |||
| 19 mm Penetration Range | (MG PCO-16-9) | ||||
| WF | |||||
| OAL | The same tool applies for right-and left-machining |
| Designation | DCONMS | OAL | OHX(1) | WF | |||
| MGCH 09C | 9.00 | 83.50 | 65.0 | 5.50 | SR 76-2145 | T-15/5 |
(1) Maximum overhang For inserts, see pages: GFQR (598) For holders, see pages: PICCO/MG PCO (Holder) (399)
MG PCO 75
Holder Bar for Adjustable Shank 15
16
MG PCO-16-9
GFQR INSL
Face Grooving Inserts
CDX 5 DAXN-DAXX WF
CW RE .
Recommended Dimensions Machining Data
f face-groove
| Designation | CW | RE | CWTOL(1) | RETOL(2) | CDX | DAXN(3) | DAXX(4) | (mm/rev) | |
| GFQR 12-1.00-0.05 | 1.00 | 0.05 | 0.02 | 0.030 | 1.50 | 12.0 | 16.0 | • | 0.01-0.04 |
| GFQR 12-1.50-0.20 | 1.50 | 0.20 | 0.02 | 0.030 | 2.50 | 12.0 | 17.0 | • | 0.01-0.04 |
| GFQR 12-2.00-0.20 | 2.00 | 0.20 | 0.02 | 0.030 | 3.00 | 12.4 | 18.0 | • | 0.02-0.05 |
| GFQR 12-2.50-0.20 | 2.50 | 0.20 | 0.02 | 0.030 | 3.00 | 13.0 | 19.0 | • | 0.02-0.05 |
- For detailed cutting data, see page 604
(1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum penetration diameter (4) Maximum penetration diameter
| MIFHR Bars for Face and Internal Grooving, Undercutting and Threading Inserts | MIFHR.. | . 10 | LH L3 | OAL MIF | HR... 8 | D CND | RE CONMS | W | F RADW RE | |||
| Designation | DCONMS | CND | WF | RADW | OAL | L3 | LH | RE | Insert | |||
| MIFHR 8SC-8-SRK(1) | 8.00 | 1.2 | 1.4 | 3.70 | 75.00 | 7.40 | 11.7 | 3.80 | MI.R 8 | SR 14-297 | T-8 | /5 |
| MIFHR 10C-8 | 10.00 | 5.0 | 1.4 | 4.50 | 102.50 | 7.40 | 12.5 | 3.80 | MI.R 8 | SR 14-297 | T-8 | /5 |
| MIFHR 12C-8 | 12.00 | 5.0 | 1.4 | 5.50 | 102.50 | 7.40 | 12.5 | 3.80 | MI.R 8 | SR 14-297 | T-8 | /5 |
| MIFHR 12C-10(2) | 12.00 | 6.0 | 2.4 | 5.50 | 90.00 | 11.20 | 17.2 | 4.60 | MI.R 10 | SR 34-506 M3X0.5 | T-9 | /5 |
| MIFHR 16C-10(2) | 16.00 | 6.0 | 2.4 | 7.50 | 90.00 | 11.20 | 17.2 | 4.60 | MI.R 10 | SR 34-506 M3X0.5 | T-9 | /5 |
| MIFHR 16C-15 | 16.00 | 8.0 | 2.7 | 7.50 | 100.00 | 12.50 | 19.0 | 10.30 | MI.R 15 | SR 34-506/L | T-9 | /5 PL 16 |
| MIFHR 20C-15 | 20.00 | 8.5 | 4.7 | 9.00 | 100.00 | 12.50 | 19.0 | 11.30 | MI.R 15 | SR 34-506/L | T-9 | /5 PL 20 |
(1) Solid carbide shank (2) Only face grooving inserts are available for this tool
For inserts, see pages: MEFL (600) MIFR (600) MIGR 8 (413) MITR 8-MT (650) MIUR 8 (413)
For holders, see pages: PICCO/MG PCO (Holder) (399)
